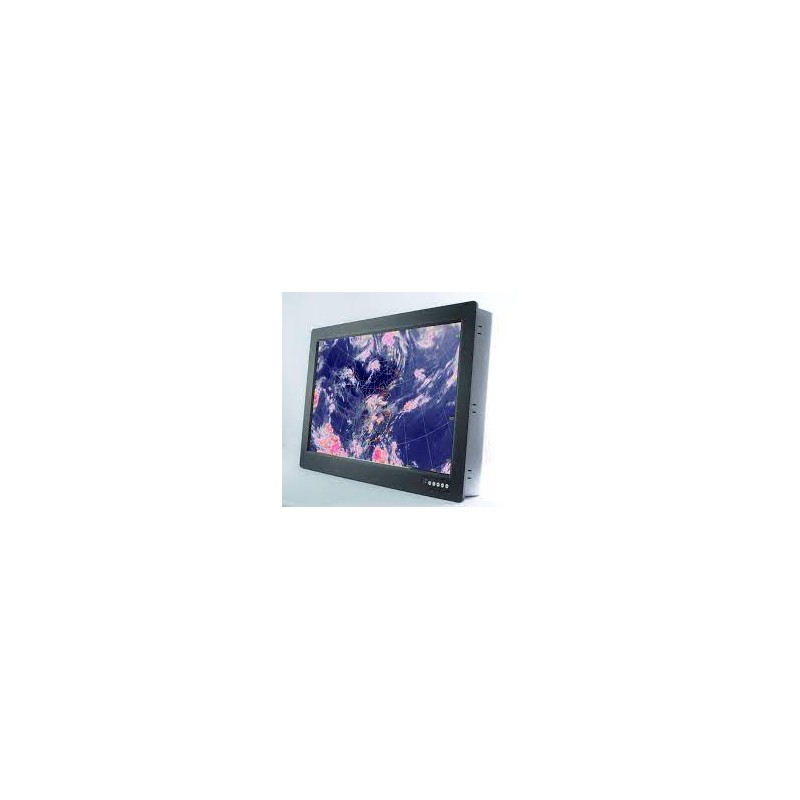

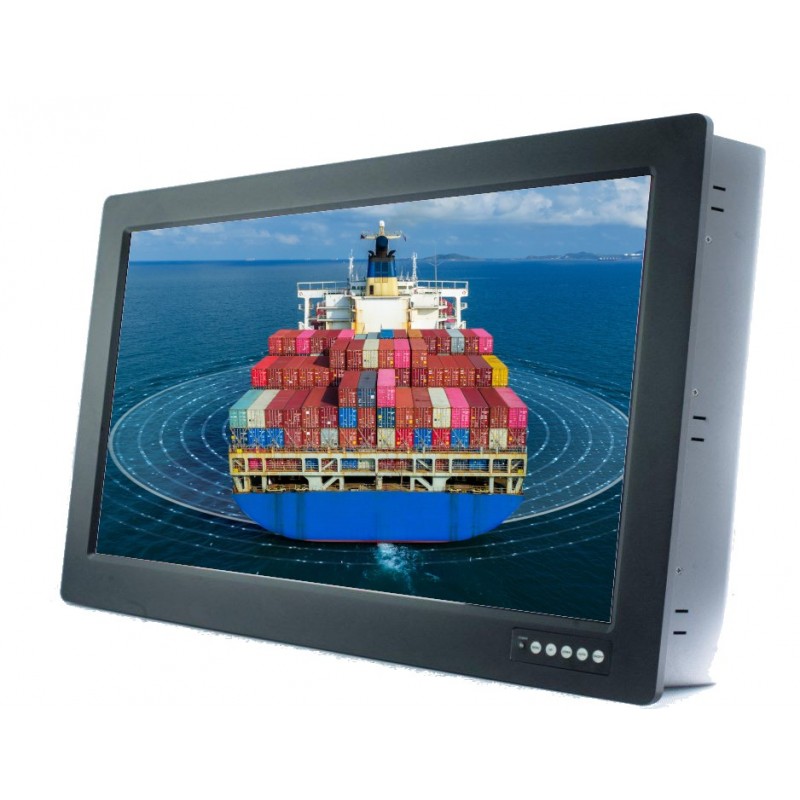

Panel PC 15.6" Intel® N2930 Marine DNV approved

15.6", 16 : 9 ratio
Resolution: 1920 x 1080
CPU: Intel® N2930
Ram: 4GB (8GB option)
120GB SSD
3xRS232/485/422
2xUSB3.0, 2xUSB2.0
Mounting: Panel mount, VESA 75x75
Front: IP65 Back: IP22 (all side option)
DC input: 9~32V
Operating temp.: 0°C to +60°C
DNVGL and IEC60945

Call +45 56 66 20 20 for price
Quantity
On the way in
ADD TO CART
Product number IPP15.6DNV
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Intel® N2930 fanless Quad Core 2.16GHz CPU
Operating Temp. 0°C to +60°C
Forsyning DC 9~32V
IP-Tæthed Front IP65
LCD 15.6” Active Matrix TFT LCD
Lyd Built-in 2 loud speakers
Lysstyrke 220 cd/m2 (option : 600~800nits & dimmable)
Montering VESA75, Panel mount
Opløsning 1920 x 1080 (Full HD)
Porte 3xRS232/485/422, 2xUSB3.0, 2xUSB2.0
SSD 120GB SSD
Touch 15.6” 5-Wire Resistive Single Touch
Certifications DNVGL and IEC60945, CE / FCC / RoHS standard

Panel PC approved for marine use. Other sizes and models can be offered. Contact the sales department for more information.
These are usually Build To Order. Contact the sales department regarding delivery time.

Other products in same category:

304L stainless steel wall mount for food processing, VESA MOUNT 75/100, TFT mount, panel pc mount
Wall mount VESA bracket VESA 75/100 stainless steel 304 monitor or Panel PC wall bracket

Stainless Steel 304

Industrial Design

VESA 75/100

2-axis movement

1,900.00 kr
Item Number: MON-VESA-STEEL
Physically in stock
ADD TO CART
Quick view
19" i5 ECDIS DNVGL-CG-0339, IACS E10 Marine approved Panel PC
19" i5 ECDIS DNVGL-CG-0339, IACS E10 Marine approved Panel PC, 24VDC

19" 1280 x 1024 Marine approved Panel PC
Projective multitouch screen PCAP
Marine standard: DNVGL-CG-0339, IEC60945 4th. IACS-E10
Intel Core i5-5200U 2.2GHz
4GB RAM, 128GB SSD (mSATA) Dual ethernet
Supports Win 10 IoT Enterprise (must be purchased separately)
2 x USB 3.0, 1 x USB2.0
1 x RS232 (RS422/485)
2 x RJ45
Option: 8 ch DI/DO (additional purchase)
Option: 4 x NMEA 0183 port (additional purchase)
Supply voltage: 24VDC / 65Watt
DC input: 9 - 36VDC
Dimensions: 429 x 382 x 73 mm
Weight: 7.8 kg

Call +45 56 66 20 20 for price
Item Number: IPP19IDNV
On the way in
ADD TO CART
Quick view
Waterproof panel PC with multi-touch to slaughterhouses Medico technique, food industry
10.1" Fanless Panel PC IP66 / 69K near the front and back. Multi-touch

10.1 " TFT LED panel with Capacitive touch display
Intel® Pentium® N4200
System memory max 8G SDRAM
Internal SATA 2.5" HDD and m.2 2242 socket
M12 Connectors 1 GbE LAN, 1 2xUSB2.0, 1COM
VESA and Yoke mounting
9~36 V DC Power Input Connectors (Waterproof switch)
-20~60° C Operating Temperature

Call +45 56 66 20 20 for price
Item Number: IPP10.1IP66F
On the way in
ADD TO CART
Quick view

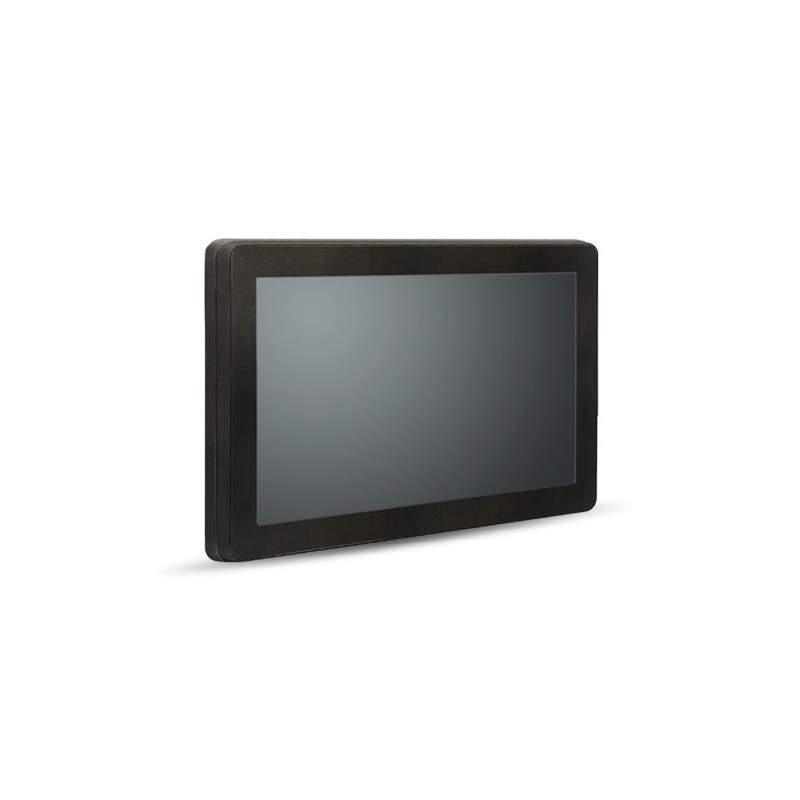

18.5\" Panel PC til bla. Marine Brug. IP68 alle sider, Wide Screen ...
18.5 "Panel PC for Marine Use. IP68 All Pages, Wide Screen with Touch, High Brightness 1000nits for Sunlight

Barbone
18.5 "wide LCD, 1366 x 768, 1000nts
Fanless design
3rd Gen. I3 / I5 / I7 Intel® mobile processor support
Resistive touch screen
4 USB < br> 2 LAN
IP68
Wide range DC 15 ~ 35V input

Call +45 56 66 20 20 for price
Item Number: IPP18.5IX-IP68
On the way in
ADD TO CART
Quick view
10.1" waterproof Panel PC for the food industry and medico
10.1" Panel PC full IP66/IP69K celeron 2930 4GB RAM, 32GB MLC SSD

10.1” Stainless Steel Panel PC
350 cd/m2
Intel Celeron N2930 1.83 GHz Onboard Processor
8GB Onboard DDR3L SDRAM max. 8GB total
Flat front frame Design
grade 304 stainless steel housing (Grade 316 is Option)
IP66 / IP69K Rated with M12 connector
Support resistive touch, expected capacitive touch, and Glass Touch
on / off button on the side Edge for hygienic cleaning
Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
OPTION HIGH BRIGHTNESS 1000cd/m2

Call +45 56 66 20 20 for price
Item Number: IPP10.1IP65F2
On the way in
ADD TO CART
Quick view

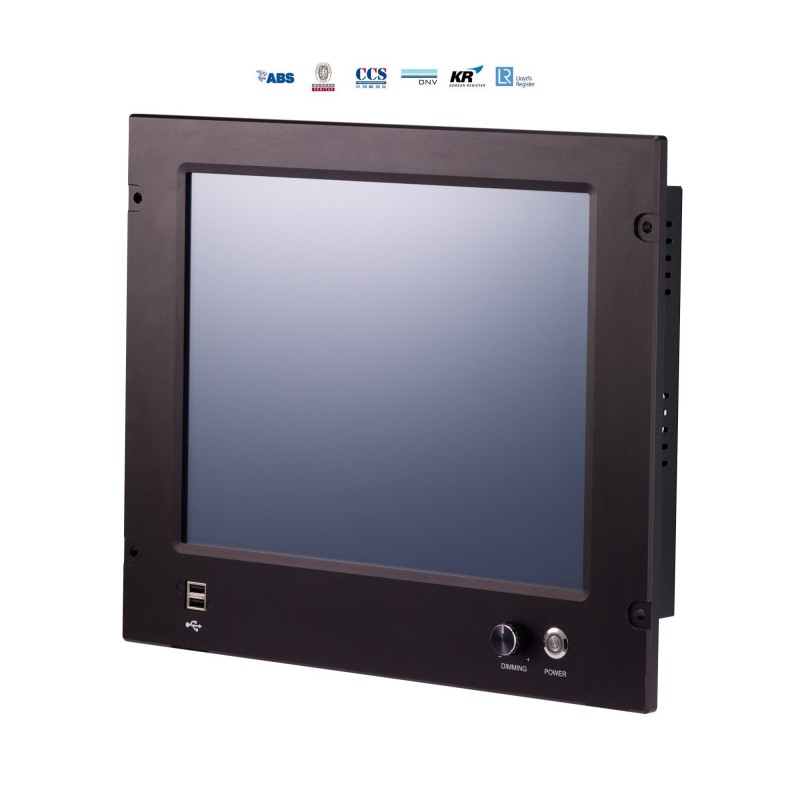

15 Inch Marine Panel PC with Intel H310, IP65, 8GB RAM DNV
