Routere

Rest storage

Vdsl2 router with 4 x RJ45 and WiFi
Network connection up to 1.4 km above 2-wire telephone cables
point to point federal
2 pcs. Eth-VDSL2ROUTER for a connection

Wireless WIFI 3G / 4G Router.
Built-directional antenna to 3G/4G.
Built-in WiFi antennas.
2 x cable entry IP tight.
2 x LAN 10/100/1000 Mbps Ethernet
Power supply: 12V ~ 24V Passive PoE (POC)
18VDC / 1A Passive PoE adapter included
Downlink of 150 Mbps Uplink of 50Mbps
Mast clamp / wall
Temperature: -30 ° ~ +70°C

WiFi 802.11a / b / g / n / ac
Dual Band 2.4GHz / 5GHz
2 X USB3.0
4 X LAN 1Gbit/s
1 X WAN 1Gbit/s
4 X External antennas 5dBi (removable)
supply voltage 12V 3A 31W

Industrial robust design and compact metal housing
​High data speed CAT12
ModBus TCP
802.11b/g/n Wi-Fi support, 150Mbps data rate
5xLAN or 4xLAN, 1xWAN
WAN port support PPPoE, static IP, DHCP client
Ultra security, VPN: PPTP, L2TP, GRE, IPSec, and OpenVPN
Power input 7.5 - 32VDC
Dimensions: 176mm x 105mm x 25mm (not including antenna)
Operation temperature: -30 to +70C degree
CE,FCC,RoHS,CCC
4G LTE speed max 300Mbit/s download/upload
4G LTE speed tested max 100Mbit/s download 80Mbit/s upload in DANBIT Køge

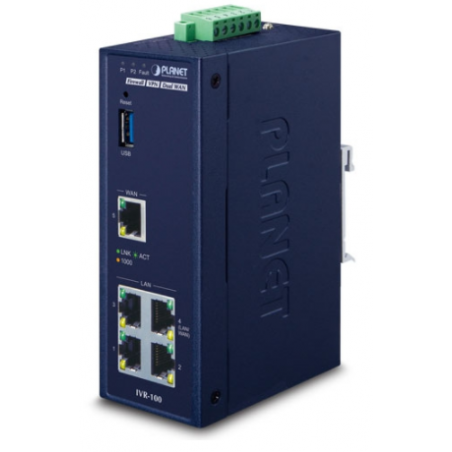

Cyper Security VPN Router with dual WAN failover
Managed
10/100/1000Mbit
3 x RJ45 LAN
1 x RJ45 LAN / WAN
1 x WAN
1 x USB 3.0
Auto Reboot for 5 seconds
VPN tunnels: max 60
VPN throughput: max 100Mbps
Encryption: DES, 3DES, AES, AES-128/192/256
Authen: MD5 / SHA-1/256/384/512
IPSec (Host to Host) / GRE / PPTP server / L2TP / SSL
Operating temperature: -40 - + 75 ° C
Dimensions: 135 x 88 x 50 mm
Weight: 530g
Supply voltage: 9 - 48VDC, 9Watt
DIN bracket, wall mounting

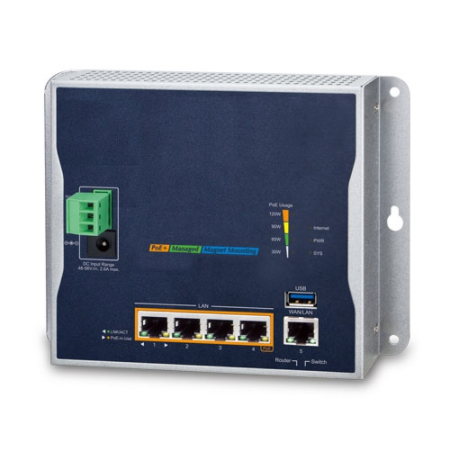

4-port 10/100 / 1000BASE-T RJ45 with IEEE 802.3af / 802.3at PoE injector
1-port 10/100 / 1000BASE-T RJ45 WAN port or LAN port interface (router mode or switch mode )
1 x USB 3.0 port for backing up and restoring configuration file
PoE power is 36Watt per port - automatically Detect PD
PoE monitoring, status, strømbudg PoE port enable / disable, PD live check
IP30 metal housing, DIN bracket
Operating temperature: -10 - + 60 ° C
Supply voltage: 48V ~ 56V DC (PSU purchased)
Supports IEEE 802.1Q / D
Security: port filter, MAC filter, IP source protection, anti-DoS
LCD touch display - field management, maintenance etc.

4-port 10/100 / 1000BASE-T RJ45 with IEEE 802.3af / 802.3at PoE injector
1-port 10/100 / 1000BASE-T RJ45 WAN port or LAN port interface (router mode or switch mode )
1 x USB 3.0 port for backing up and restoring configuration file
PoE power is 36Watt per port - automatically Detect PD
PoE monitoring, status, strømbudg PoE port enable / disable, PD live check
IP30 metal housing, DIN bracket
Dimensions: 180 x 140 x 25 mm | Operating temperature: -10 - + 60 ° C
Supply voltage: 48V ~ 56V DC (PSU purchased)
Supports IEEE 802.1Q / D
Security: port filter, MAC filter, IP source protection, anti-DoS

Converting cable from CRC9 to N
Suitable for connection of external antenna for router
RG174, 50 Ohm
100dB per 100meter at 2GHz
CRC9 male
N male
2 meters

Converting cable from CRC9 to N
Suitable for connection of external antenna for router
RG174, 50 Ohm
100dB per 100meter at 2GHz
CRC9 male
N male
5 meter

2x Gigabit Ethernet Port
802.11n/ac Wi-Fi
4G/WAN Failover
Cloud M2M Management Platform
Shock and vibration resistance
DC +7.5~32V

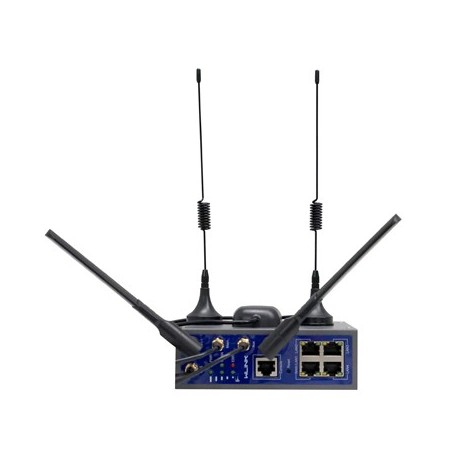

Operating temperature :-30~75℃
VPN, Firewall

Dual-band 802.11 b/g/n/ac WiFi
4 x Gigabit LAN
2 x Redundant SIM slots
Operating temperature: -30 ~ 75 ℃
DC +7.5~32V
Cloud M2M Management Platform
DIN Rail Mounting
Shock and vibration resistant
VPN, Firewall

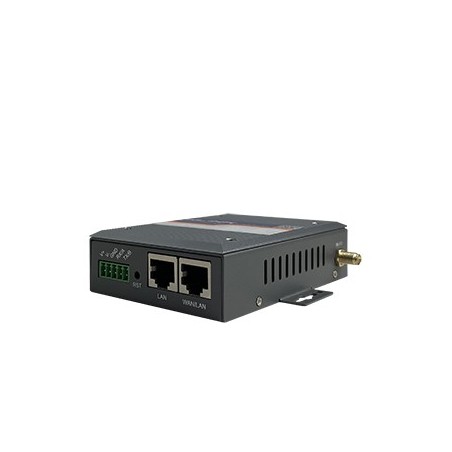

5G, 4G , 3G Network (Cat20/16)
2 x Gigabit LAN, 1x SIM
Dual-band 802.11 b/g/n/ac WiFi
Cloud M2M Management Platform
DC +7,5~32V
Operating temperature: -30 ~ 75 ℃
VPN, Firewall

EU standard frequency band network FDD-LTE/UMTS
SMS--Send/Receive/Delete
Wi-Fi 2.4Ghz 802.11g
Up to 10 users have access to WiFi
Nano SIM
5VDC 1A
Up to 150 Mbps MAX download speed
88mm x 28mm x 12.3mm / 25g
