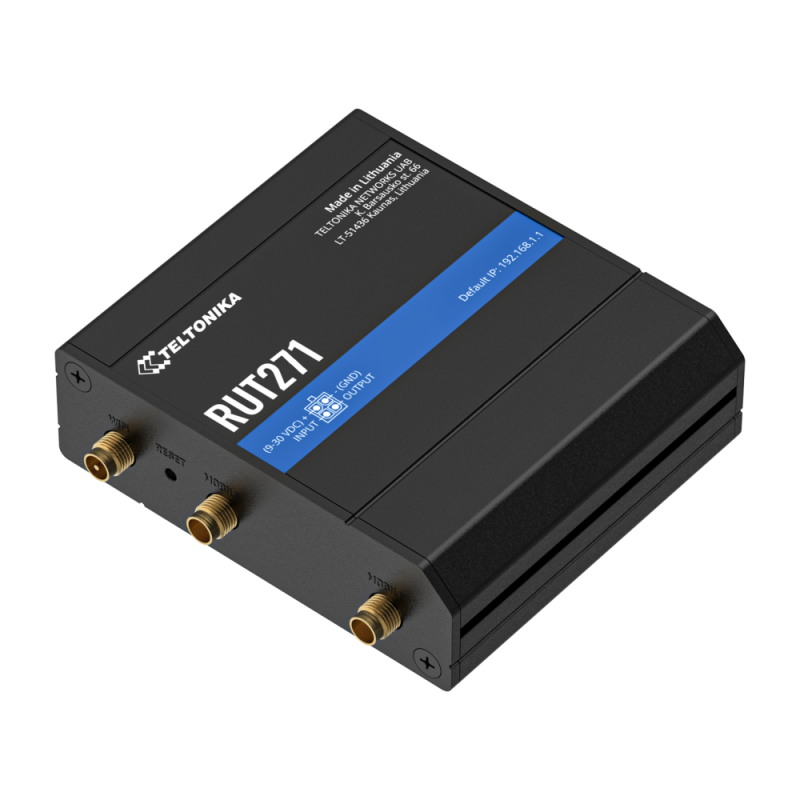

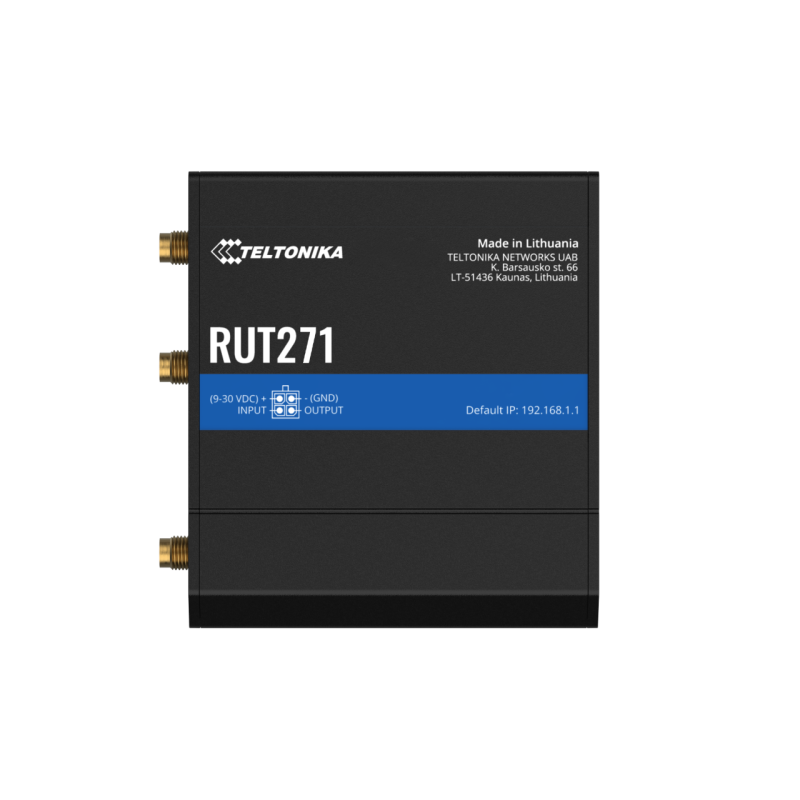

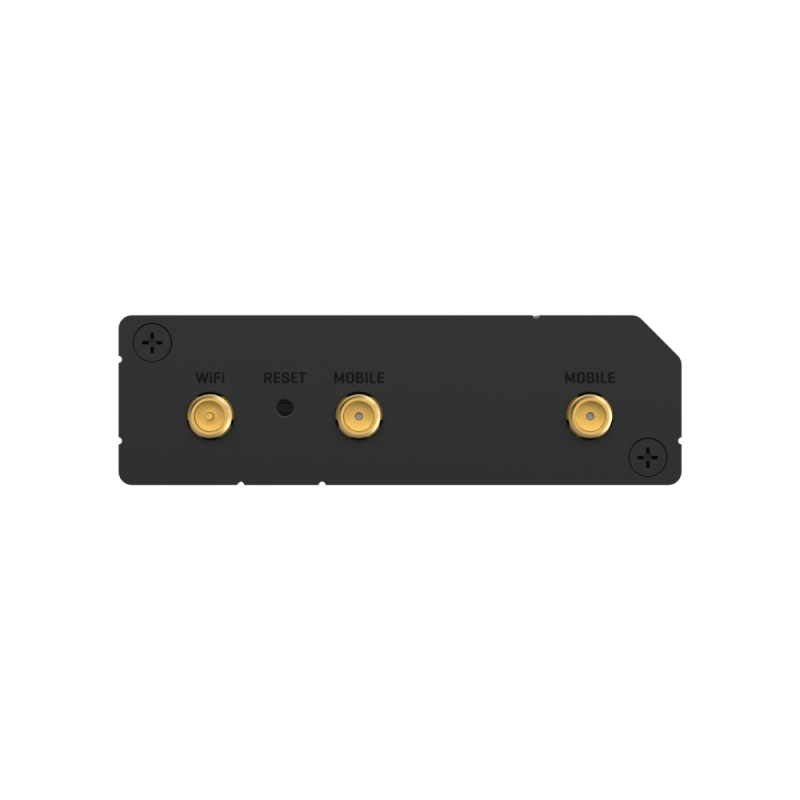

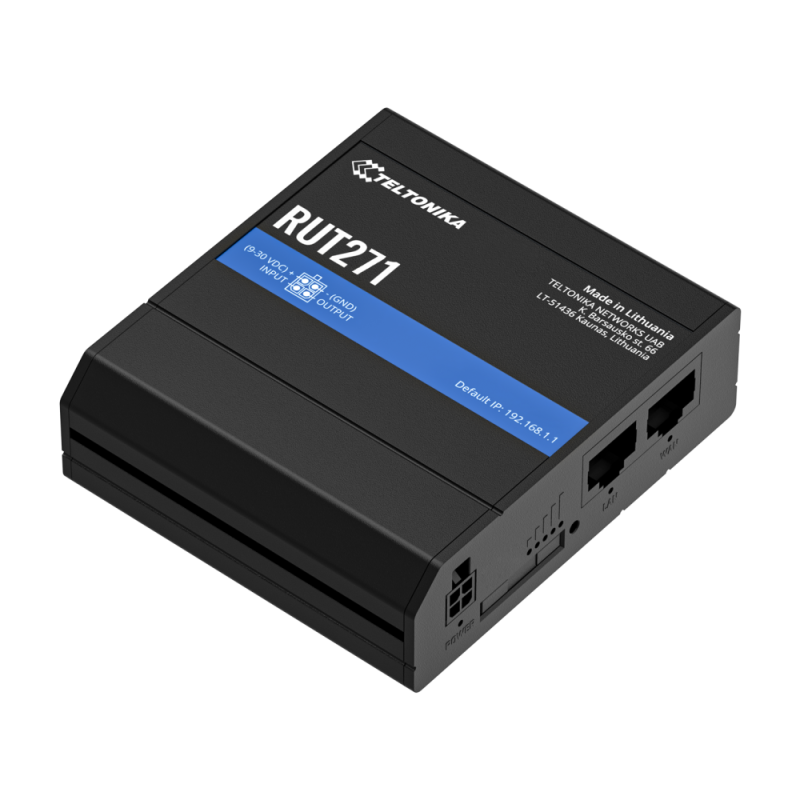

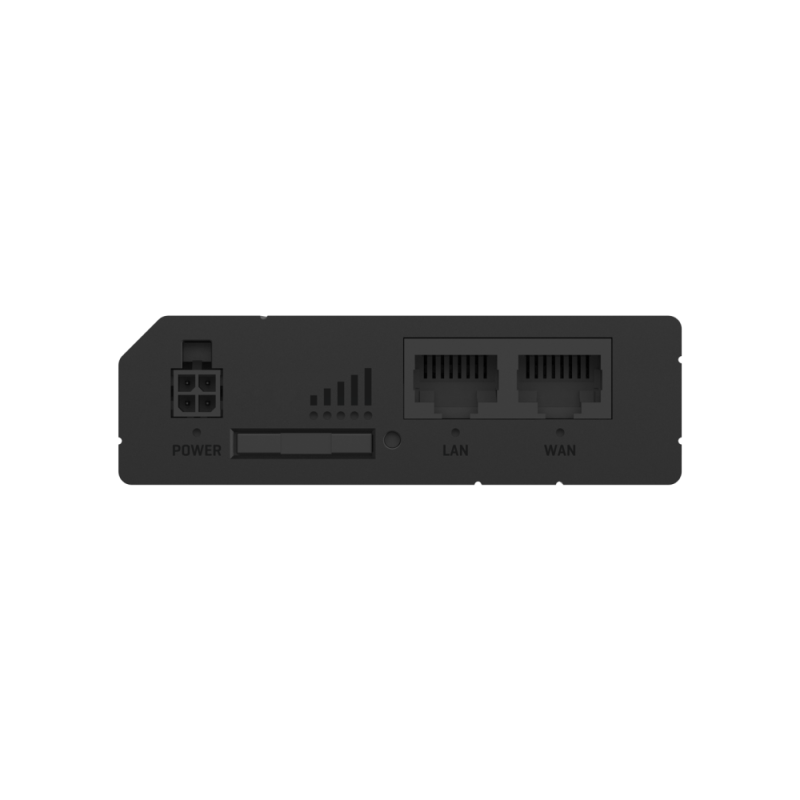

RedCap 5G Industrial Router with Wi-Fi and 2x Ethernet

Wireless WIFI 3G / 4G Router.
Built-directional antenna to 3G/4G.
Built-in WiFi antennas.
2 x cable entry IP tight.
2 x LAN 10/100/1000 Mbps Ethernet
Power supply: 12V ~ 24V Passive PoE (POC)
18VDC / 1A Passive PoE adapter included
Downlink of 150 Mbps Uplink of 50Mbps
Mast clamp / wall
Temperature: -30 ° ~ +70°C

Highly reliable and secure 4G LTE Router

Dual SIM - automatic fallover

Wifi - Access Point with Hotspot function

1 x WAN RJ45 port

3 x LAN RJ45 ports

Modbus TCP Slave / Master

Modbus data server - MQTT, Azure, HTTP(S)

MQTT Gateway

1 x DI/DO

Supply voltage: 9 - 30VDC 7W

Dimensions: 110 x 100 x 50 mm

Option: Purchase DIN bracket

Converting cable from CRC9 to N
Suitable for connection of external antenna for router
RG174, 50 Ohm
100dB per 100meter at 2GHz
CRC9 male
N male
2 meters

Converting cable from CRC9 to N
Suitable for connection of external antenna for router
RG174, 50 Ohm
100dB per 100meter at 2GHz
CRC9 male
N male
5 meter

Extremely reliable and secure 4G LTE router
Dual SIM - Automatic fall over
WiFi - Access Point with Hotspot feature
1 x Wan RJ45 port
3 x LAN RJ45 Porte
Modbus TCP / RTU Slave / Master
RS232 / RS485 Port
USB Port for External Drive etc.
Modbus Data Server - MQTT, Azure, HTTP (S)
MQTT Gateway
1 x DI / DO
Supply voltage: 9 - 30VDC 7W
Dim: 110 x 100 x 50 mm
Option: Buy DIN bracket

2 x Gigabit Ethernet port

802.11n/ac Wi-Fi

4G/WAN failover

Cloud M2M management platform

Shock and vibration resistance

DC +7.5~32V

Operating temperature: -30 ~ 75 ℃

VPN, Firewall

Antennas and PSU included

Dual-band 802.11 b/g/n/ac WiFi
4 x Gigabit LAN
2 x Redundant SIM slots
Operating temperature: -30 ~ 75 ℃
DC +7.5~32V
Cloud M2M Management Platform
DIN Rail Mounting
Shock and vibration resistant
VPN, Firewall

5G, 4G , 3G Network (Cat20/16)
2 x Gigabit LAN, 1x SIM
Dual-band 802.11 b/g/n/ac WiFi
Cloud M2M Management Platform
DC +7,5~32V
Operating temperature: -30 ~ 75 ℃
VPN, Firewall
