Remote controlled relay contacts which can be potential free physical relay contacts or as semiconductor contacts (PhotoMos) are widely used in the industry.
If you do not find a module with the inputs and outputs you want - please contact us for advice and guidance. Please provide a quantity and we will be happy to send you an offer.
DANBIT can supply a large selection of modules with built-in digital outputs as physical relays. Some modules have a combination of relay outputs and digital inputs.
They are designed for use in industrial control of machines and processes. Almost all modules support the MODBUS protocol. Power supply from a switch with PoE is also possible.
We can supply modules that are for RS485 series bus. It is gradually replaced by Ethernet-based connectivity, either as wired or wireless (Wifi).
Modules with USB interface are used for smaller systems. This connection has both advantages and disadvantages - easy to connect but unstable as they can lose data connection to the USB port without warning.
Modules with wireless communication on the 2 license-free bands (433MHz and 866MHz) are controllable of gates, lights and other, where greater range is needed and possibly. several recipients.
Subcategories
There are 52 products.
250 VAC relæ til DIN skinne
250 VAC klæberelæ til DIN skinne

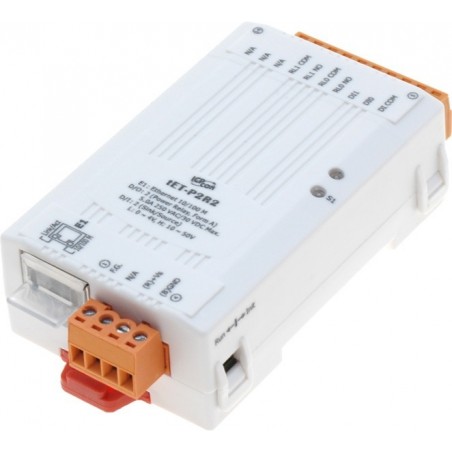

Ethernet I/O module Modbus/TCP / UDP slave
1 x RJ45 Ethernet
Redundant Power Supply
Protocol: TCP, UDP, HTTP, DHCP, BOOTP and TFTP
Web configuration and firmware update via Ethernet
2 x digital input (Wet - volts supplied)
2 x Relay, COM, NO - 250VAC 5A, 30VDC 5A
Avoid inductive load to relay contacts
With locked DI and 32-bit 3.5kHz counter
With I/O pair - input is mirrored in the other's output
Dual-watchdog with Power-on-safe value
Supply voltage: 12 - 48VDC, 1.7 Watt
Dimensions: 98 x 52 x 27 mm
Operating temperature: -25 - +75°C
Modbus / TCP I / O module with built-in Web server
Modbus / TCP and Modbus / UDP protocols
2 x RJ45 Ethernet switch to Daisy-Chain topology
Dual Watchdog
Operating temperature range: - 25 to + 75 ° C
I / O Pair connection - Ingang refles in the second's exit
8 x Digital input: Wet (Apply Volt), Dry (Contact) - Digital Input: 0 - + 50CDC or Open / GND
8 x Digital Outout, Open Collector 0 - 40VDC / 650MA
Dimensions: 76 mm x 120 mm x 38 mm
Supply voltage: 12 - 48vdc, 4 watt
your bracket Wall mounting
Distributed I/O via Ethernet/RS485
Can be controlled via RS485 or Ethernet
10 x digital in 10 x relay out (mechanical relay)
9VDC ~ 24VDC supply voltage (power adapter included)
16bit / 100MHz CPU
256 KB ROM, 1 MB SDRAM
Built-in Web server
Web HMI
Support for both Modbus TCP and Modbus UDP protocols
Communications Security
1 x RJ45 Ethernet port
Double watchdog
Operating temperature range: -25 to +75°C
I/O pair connection, the input is mirrored in the other's output
Built-in I/O
12 x Digital input: Wet / Dry, 0 - + 50VDC
All entries are 32-bit counter 500Hz
6 x digital output: Open Collector 0 - + 30VDC / 100mA
Supply voltage: 10 - 30VDC
6 x Digital Inputs - Wet (active at DC in)
6 x Power relay outputs - 24VDC / 250VAC / 5A
Protocol: Modbus TCP / UDP
2 x RJ45 Ethernet interface
With built-in network switch - with the daisy chain
I/O Pair-function - the input is mirrored to the second output
Digital inputs with counter - max 500Hz
the minimum pulse width: 1 ms
Screw terminal
Supply voltage: 10 - 30VDC / 3watt
6 x digital inputs - Wet (active at DC input)
6 x Power relay outputs - 24VDC / 250VAC / 5A (COM, NO)
protocol: Modbus TCP / UDP
1 x RJ45 Ethernet Interface
I / O Pair Function - Input Mirrors for the second exit
digital inputs with counter - max 500Hz
Minimum pulse width: 1ms
Screw terminals: 10 - 30vdc / 3Watt
6 x Digital Inputs - Wet (active at DC in)
6 x Power relay outputs - 24VDC / 250VAC / 5A
Protocol: Modbus TCP / UDP
1 x RJ45 Ethernet interface with PoE in
I / O Pair-function - the input is mirrored to the second output
Digital inputs with counter - max 500Hz
the minimum pulse width: 1 ms
Screw terminal
Supply voltage: PoE or 10 - 30VDC / 3watt
6 x Digital Inputs - Wet (active at DC in)
6 x Power relay outputs - 24VDC / 250VAC / 5A
Protocol: Modbus TCP / UDP
2 x RJ45 Ethernet interface
With built-in network switch - with the daisy chain
I / O Pair-function - the input is mirrored to the second output
Digital inputs with counter - max 500Hz
the minimum pulse width: 1 ms
Screw terminal
Supply voltage: PoE or 10 - 30VDC / 3watt
PoE is NOT continued to LAN port 2 (data only)
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair connection - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
2 x RJ45 Ethernet - daisy chain
Supply voltage: 12 - 48VDC / 4Watt
Wireless Digital I / O module, Wifi 2.4GHz
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating Temperature Range: - 25 ~ + 75 ° C
I/O Pair-link - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
Supply voltage: 10 - 30VDC / 3watt
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ +75°C
I / O Pair compound - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
Supply voltage: 10 - 30VDC / 3watt
Auto switch relay for ignition 24 V
Incl. cable
4 x relay outputs 2 end and 2 switch
4 x insulated inputs
supply voltage: 10 - 30vdc
1 x RS485 communication port
RS485 I/O module with 4 digital inputs and 5 relay output
4 x digital input (Wet) active with Volt in
digital input as 16 bit counter - 100Hz
5 x relay output - COM, NO
Supply: 10 - 30vdc
DIN
7 relay outputs (normally open contact)
Glavanisk isolated outputs
Switching time: ON: 5ms
RS485 bus
DIN bracket
10 - 30VDC / 1.5Watt
280 VAC 120 A solid state relæ til panelmontering
280 VAC 20 A solid state relay
Flange-mounting
ONLY for AC voltage
Compact Open Board with 8 relay exits
250V / 10A Only resistive load
Controlled from USB
supply voltage: 5VDC
supply via DC Jack or terminal block
No cabinet
