There are 6 products.

Showing 1-6 of 6 item(s)

Active filters

6 x Analog Differential...

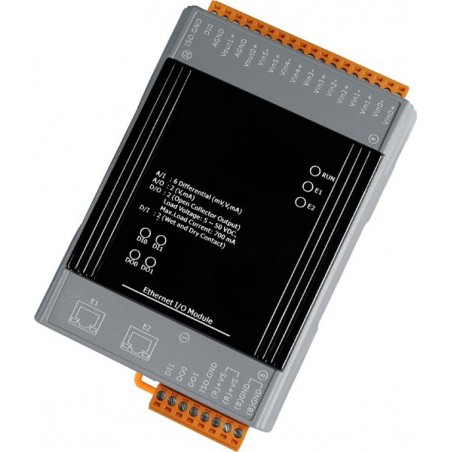

6 x Analog Differential input voltage and to mA. 2 x Analog output voltage and mA, 2 x Dig in 2 x Dig out, 2 x RJ45, PoE

Built-in Web server
Web HMI
Modbus / TCP and Modbus / UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair-link - the input is mirrored in the other's output
6 x Analog inputs: 500mV +/- - +/- 10 V, 0 - 20mA (16bit)
2 x Analog outputs: 0 - +/- 10VDC, 0 - 20mA (12bit)
10 samples per second
2 x Digital input (count): Wet / Dry, max. + 30VDC (100Hz)
2 x Digital outputs: Open Collector, max. 50VDC / 700mA
2 x RJ45 Ethernet Daisy chain
Supply voltage: PoE or 10 - 30VDC / 4Watt

Price 4,018.00 DKK
Product code: ETHIO8I4O-P2I
On the way in
  • 2 x Analog to Load Cell,...

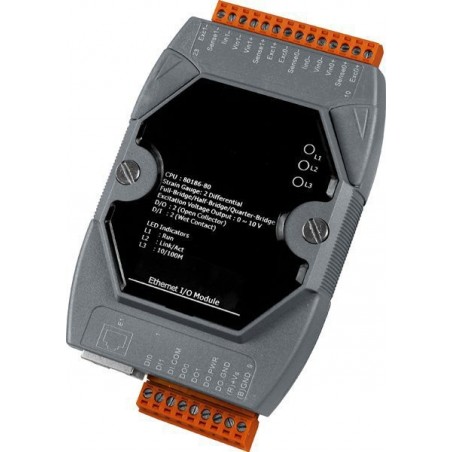

    2 x Analog to Load Cell, +/- 2.5V, 0-20mA, 1 x Excitation like cell, 2x digital zoom, 2 x Digital Output (OC). LAN with PoE

    Built-in Web server
    Web HMI
    Modbus TCP and Modbus UDP protocols
    Good communication security
    Dual Watchdog
    Operating temperature range: -25 to +75°C
    I/O pair connection mirrors input to second output
    2 x AI to load cell
    1 x load cell excitation voltage out
    2 x Digital out with counter
    2 x Digital out (Open Collector)
    Supply voltage: 10 - 30VDC / 3watt

    Price 3,991.00 DKK
    Product code: ETHIO3I4O-P-I
    On the way in
  • 7 x inputs for temperature...

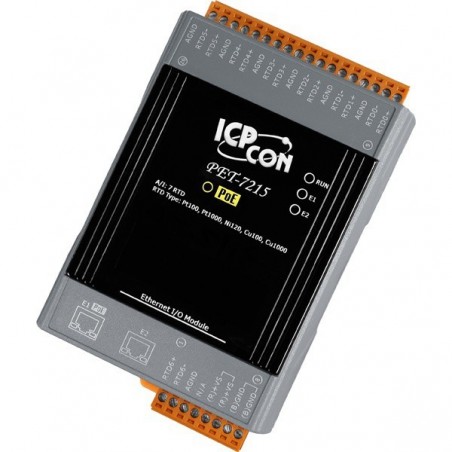

    7 x inputs for temperature sensors (differential), Pt100, Pt1000, Ni120, CU100, CU1000, 2 x RJ45 LAN, MODBUS, PoE

    Built-in Web server
    Web HMI
    Modbus TCP and Modbus UDP protocols
    Good communication security
    2 x RJ45 port Ethernet - Daisy chain to the next module
    Dual Watchdog
    Operating Temperature Range: -25 to + 75 ° C
    I / O Pair-connection input is mirrored in the other's output
    7 x RTD Interface: Pt100, Pt1000, Ni120, CU100, CU1000
    Differentialindgange to the temperature sensor 2 and 3- wire
    16bit resolution
    Power supply: PoE or 10 - 30VDC / 2.5watt
    PoE is NOT passed on to the next module - only data.

    Price 3,814.00 DKK
    Product code: ETHIO7RTD-P2I
    On the way in
  • 7 x inputs for temperature...

    7 x inputs for temperature sensors (differential), Pt100, Pt1000, Ni120, CU100, CU1000, 1 x RJ45 LAN, MODBUS, PoE, 10-30VDC

    Built-in Web server
    Web HMI
    Modbus TCP and Modbus UDP protocols
    Good communication security
    1 x RJ45 port Ethernet
    Dual Watchdog
    Operating temperature range: -25 to + 75 ° C
    I / O Pair-connection input is mirrored in the other's output
    7 x RTD Interface: Pt100, Pt1000, Ni120, CU100, CU1000
    Differentialindgange to the temperature sensor, 2 and 3-wire solution
    16bit
    Power supply: PoE or 10 - 30VDC / 2.5watt

    Price 2,950.00 DKK
    Product code: ETHIO7RTD-P-I
    On the way in
  • 6 x Analog Differential...

    6 x Analog Differential input voltage and to mA. 2 x Analog output voltage and mA, 2 x Dig in 2 x Dig out, 1 x RJ45, PoE

    Built-in Web server
    Web HMI
    Modbus / TCP and Modbus / UDP protocols
    Good communication security
    Dual Watchdog
    Operating temperature range: -25 ~ + 75 ° C
    I/O Pair-link - the input is mirrored in the other's output
    6 x Analog inputs: 500mV +/- - +/- 10 V, 0 - 20mA (16bit)
    2 x Analog outputs: 0 - +/- 10VDC, 0 - 20mA (12bit)
    10 samples per second
    2 x Digital input (count): Wet / Dry, max. + 30VDC (100Hz)
    2 x Digital outputs: Open Collector, max. 50VDC / 700mA
    1 x RJ45 Ethernet
    Power supply: PoE or 10 - 30VDC / 4Watt

    Price 3,672.00 DKK
    Product code: ETHIO8I4O-P-I
    On the way in
  • High Speed ​​8 analog...

    High Speed ​​8 analog inputs 200 kHz sample rate, 16-bit, 4 digital outputs, 4 digital inputs, -25 - + 75 ° C, PoE, 12-48VDC

    8 single ended input +/- 10V analog, +/- 5V
    200kS / s (200 kHz) for each channel sampling rate
    FIFO 2000 is sampled - the memory of 30 million data samples
    16bit solution
    Trigger mode: SW, Ext. clock, digital falling edge (post, pre, delay), analog
    1 x 32-bit counter, max. 30 kHz
    4 x digital input (wet) up to + 30VDC
    4 x digital output (Open Collector) up to + 30VDC, 100mA
    Overload protection up to 1.3A
    1 x Ethernet port RJ45
    Security: ID, password and IP filter
    Powered by the PoE or 12 - 48VDC, 2,6W
    Dimensions: 120 x 76 x 38 mm
    Housing: Metal, with DIN bracket
    Operating temperature: -25 - + 75 ° C

    Price 6,347.00 DKK
    Product code: ETHIO8AI8IO-P-I
    On the way in
