8x Analog Inputs, Modbus RTU, DCON, RS485, 10 - 30 VDC
8x Analog Inputs to RS485
16-bit Readout
Power: 10 - 30 VDC
Dimensions: 123mm x 72mm x 35mm
Modbus RTU and DCON
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 to +75°C
I/O pair connection mirrors input to second output
2 x AI to load cell
1 x load cell excitation voltage out
2 x Digital out with counter
2 x Digital out (Open Collector)
Supply voltage: 10 - 30VDC / 3watt

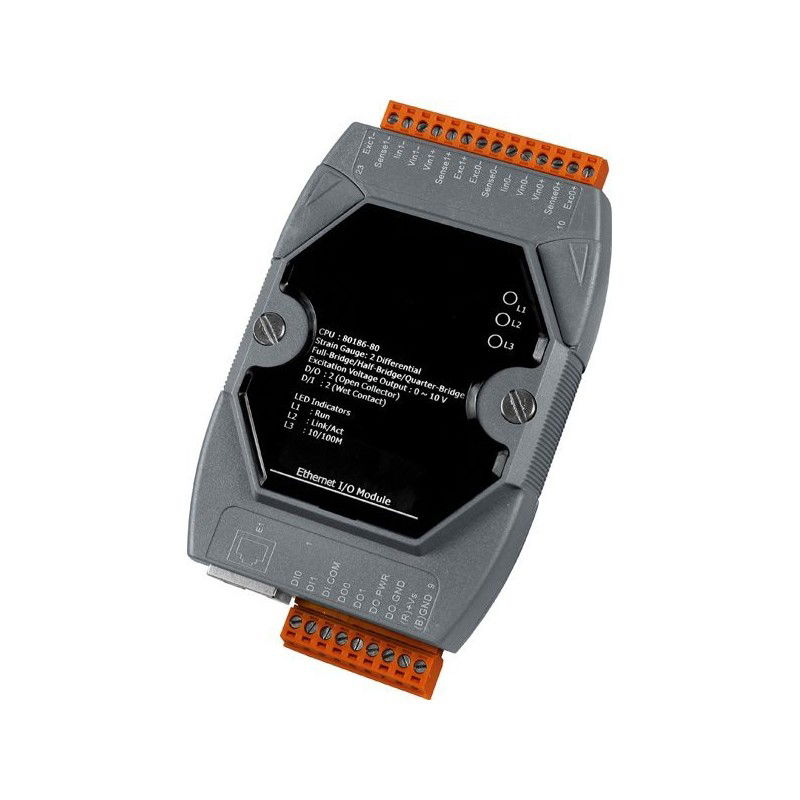

ETHIO3IAO-P-I is a strain gauge sensor module with two analog input channels, one excitation-voltage output, digital input channel 2 and channel 2 digital output module. It provides various programmable analog input inputs (+/- 1 mV, 50 mV +/-, +/- 100 mV, 500 mV +/-, +/- 1 V and +/- 2.5 V) and supports the full bridge, half-bridge and kvartbro. The area of each analog input can be individually configured. Excitationsspændingsoutput may be in the range of 0 ~ 10 V with a 60 mA driving efficiency. Digital outputs can also be set as the alarm outputs. ETHIO3IAO-I-P may also provide measurement of the long distance line gauge which compensates for the voltage drop due to the measurements over a long distance.
8x Analog Inputs to RS485
16-bit Readout
Power: 10 - 30 VDC
Dimensions: 123mm x 72mm x 35mm
Modbus RTU and DCON
Web-baseret I/O modul, Modbus/TCP / UDP
4 x Analog inputs (differential) voltage or current
Resolution: 16bit
Analog Input: +/- 10 V, 0 - 20mA (jumper)
4 x Analog outputs voltage or current
Analog output: +/- 10VDC, 0 - 20mA (jumper)
4 x Digital inputs (dry or wet), max. + 30VDC
I / O Pair-function - the input is mirrored to the second output
10 samples per second (fast: 50 samples)
Protocol: Modbus TCP / UDP
Supply voltage: 12-48 Volt DC / 5Watt
RS485 Module for measuring voltage and power
is with 15VDC transmitter output for power loop
1 x analog input 0-20MA, 0 - +/- 10V
1 x digital input. High is closed Contact
2 x Digital output (Open Collector) + 50VDC / 30mA
Supply voltage: 10 - 30VDC
Dim: 123 x 72 x 35 mm
Ethernet I/O module for the measurement of analog high-voltage differential inputs
8 x Analog input: +/-50V, +/-150V
4 x Digital output - Isolated Open Collector, max. 50VDC, 700mA per channel
16bit solution
Sample frequency: Normal mode 10 samples per second
Sample frequency fixed mode: 50 samples per second
Supports MODBUS TCP and UDP
Integrated Web Server - access with ID, password and IP filter
Power up and safe levels can be programmed
2 x RJ45 10 / 100Mbit ports - daisy-chain
Pair-connection - mirror one input to others output
Supply voltage: 12 - 48VDC 4,2Watt
Dimensions: 120 x 76 x 38 mm
Housing: plastic with DIN bracket
