7 x inputs for temperature sensors (differential), Pt100, Pt1000, Ni120, CU100, CU1000, 1 x RJ45 LAN, MODBUS, 10-30VDC

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
1 x RJ45 port Ethernet
Dual Watchdog
Operating temperature range: -25 to + 75 ° C
I / O Pair-connection input is mirrored in the other's output
7 x RTD Interface: Pt100, Pt1000, Ni120, CU100, CU1000
Differentialindgange to the temperature sensor, 2 and 3-wire solution
16bit
Supply voltage: 10 - 30VDC / 2.5watt

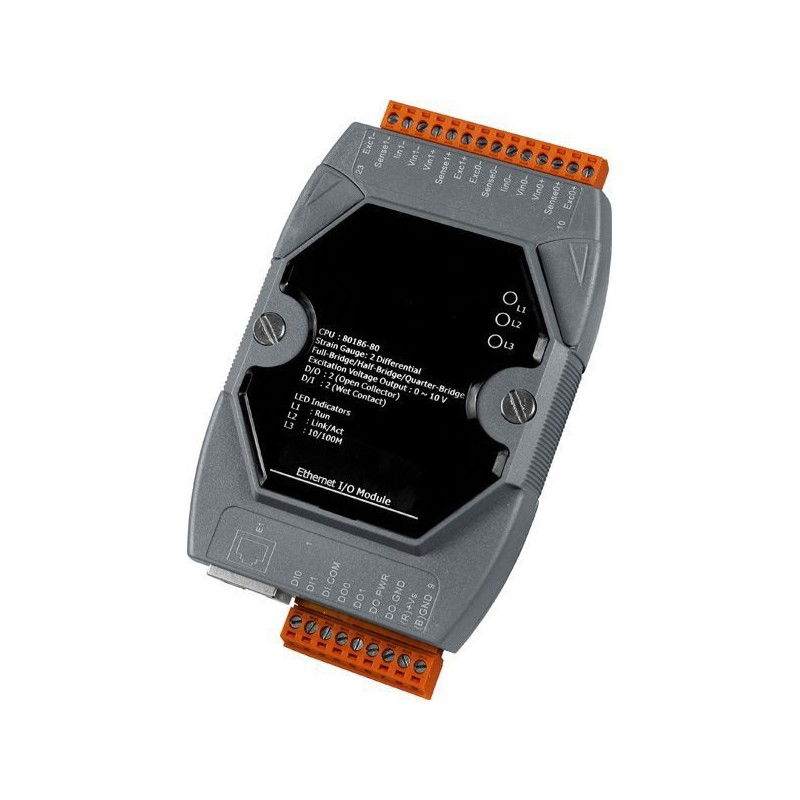

ETHIO7RTD-I
2,420.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

ETHIO7RTD-I is specially designed for long distance RTD measurement. It has automatic compensation for three-wire RTD regardless of the length of the wires and provides for open ledningsdetektion to the RTD measurement. ETHIO7RTD-I provides 7 channels, each of which can be connected to different types of RTD (Pt100, Pt1000, Ni120, CU100, Cu1000). ETHIO7RTD-I are also fully RoHS compliant and has qualification for 4 kV ESD protection as well as 2500 VDC isolation within the module.

Analoge indgange
7 stk. differentialindgange (2- eller 3-tråds). Kan bruges med termoføler af typerne Pt, Balco og Ni RTD
Forsyning
10 - 30 VDC, 5 W via klemrække
Indgangsimpedans
10 kΩ
Maks. hastighed
10 samples/sekund
Netværk
10/100 Mbit m/RJ45-stik
Nøjagtighed
maks. ±0,005 %
Opløsning
16 bits
Protokoller
Modbus/TCP, TCP/IP og UDP
Signal/støjforhold
100 dB
