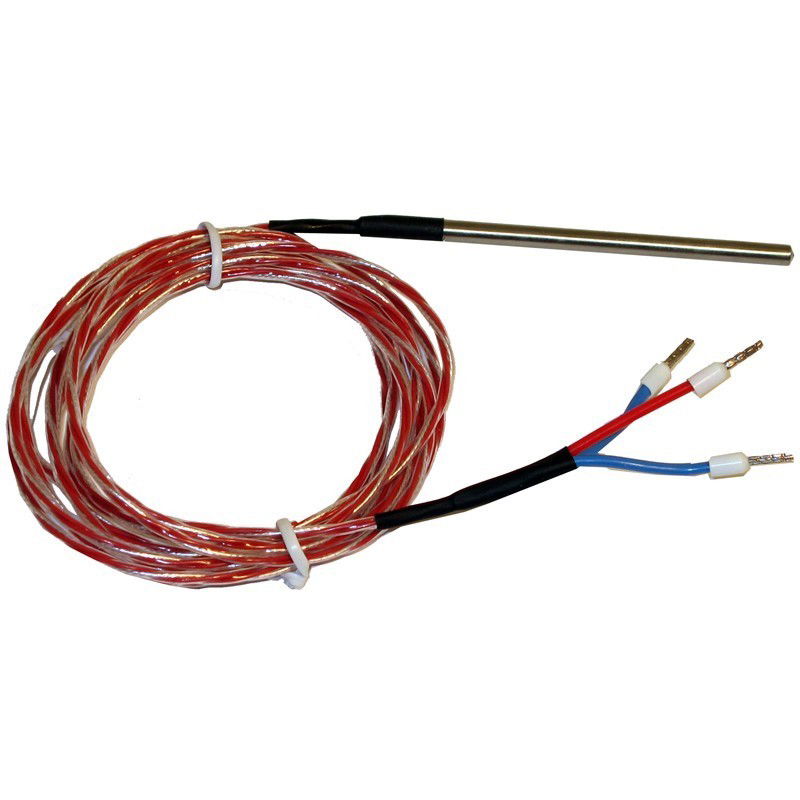

3 thread PT 100 sensor in metal house 4 x 80 mm, - 20 ° - +130 ° C, 2 meter cable

1-wire combi sensor for temperature and humidity
3 connections: +5VDC, Gnd, data
Max. length of cable to controller: 180 metres
Mounting bracket for wall
Mounting bracket for penetration
Temperature range: -40 - +80°C
Accuracy: ± 0.4°C (0°C to 80°C)
Humidity range: 0 - 100% RH
Not suitable for environments with repeated or prolonged condensation
Accuracy: ± 2%
Sensor type: Digital 1-wire (Maxim DS18B20)
Cable length: 3 meters
Probe length: 100 mm
Probe diameter: 17.5 mm

Intelligent Controller with Web Server
Logical functions, such as: IF-THEN-ELSE
No programming. Just select, click and finish
Supporter: I/O module, counter, hour, e-mail
Modbus / TCP protocol for SCADA software Seamless integration
IEEE 802.3af compatible power over Ethernet ( Poe)
1 x RJ45 - 100Mbit Ethernet
7 x Analog input: 0 - +/-2.5V, 0 - 20mA (ext. Resistors)
A/I Resolution: 16bit
10 Samples per Second
A/I Also to Thermocouller: J, K, T, E, R, S, B, B, C, L, M, LDIN43710
6 x Digital Output: 0 - + 50VDC / 700mA Open Collector
Supply voltage: POE or 12 - 48VDC / 4.5Watt

Pt.100 transmitter for your mounting
2 - 3-wire pt.100 sensor (red to 16, 2 x blue to 18 and A2
24v to 15 and 26
4 - 20 mA power Out of 16 and 26
4 - 20 mA The output gives power to PLC / instrument
Including PT100 feel with 80mm, Ø4MM Steel Tips
2 meter Flex cable
Supply voltage: 24VDC
Dim : H 74 x L 105 x B 22 mm

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
2 x RJ45 port Ethernet - Daisy chain to the next module
Dual Watchdog
Operating Temperature Range: -25 to + 75 ° C
I / O Pair-connection input is mirrored in the other's output
7 x RTD Interface: Pt100, Pt1000, Ni120, CU100, CU1000
Differentialindgange to the temperature sensor 2 and 3- wire
16bit resolution
Power supply: PoE or 10 - 30VDC / 2.5watt
PoE is NOT passed on to the next module - only data.

7 pcs. differentialindgange for temperature sensor
Pt-100, Pt-1000, Ni120, Cu100/1000
With built-in 2 port ethernet switch
LAN Daisy Chain to the next module
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
16 bit resolution - 12 samples / second
Good communication security
Dual Watchdog
Operating temperature: -25 to + 75 ° C
I / O Pair compound. Mirroring input to output
Supply voltage: 10 - 30VDC / 3watt

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
1 x RJ45 port Ethernet
Dual Watchdog
Operating temperature range: -25 to + 75 ° C
I / O Pair-connection input is mirrored in the other's output
7 x RTD Interface: Pt100, Pt1000, Ni120, CU100, CU1000
Differentialindgange to the temperature sensor, 2 and 3-wire solution
16bit
Power supply: PoE or 10 - 30VDC / 2.5watt
