1-Wire Temperature and Humidity sensor for Web-based X-4XX and X-600M controllers. -40 - +80°C, 0 - 100% RH. 3 meters

1-wire combi sensor for temperature and humidity
3 connections: +5VDC, Gnd, data
Max. length of cable to controller: 180 metres
Mounting bracket for wall
Mounting bracket for penetration
Temperature range: -40 - +80°C
Accuracy: ± 0.4°C (0°C to 80°C)
Humidity range: 0 - 100% RH
Not suitable for environments with repeated or prolonged condensation
Accuracy: ± 2%
Sensor type: Digital 1-wire (Maxim DS18B20)
Cable length: 3 meters
Probe length: 100 mm
Probe diameter: 17.5 mm

X-DTHS-P
2,024.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

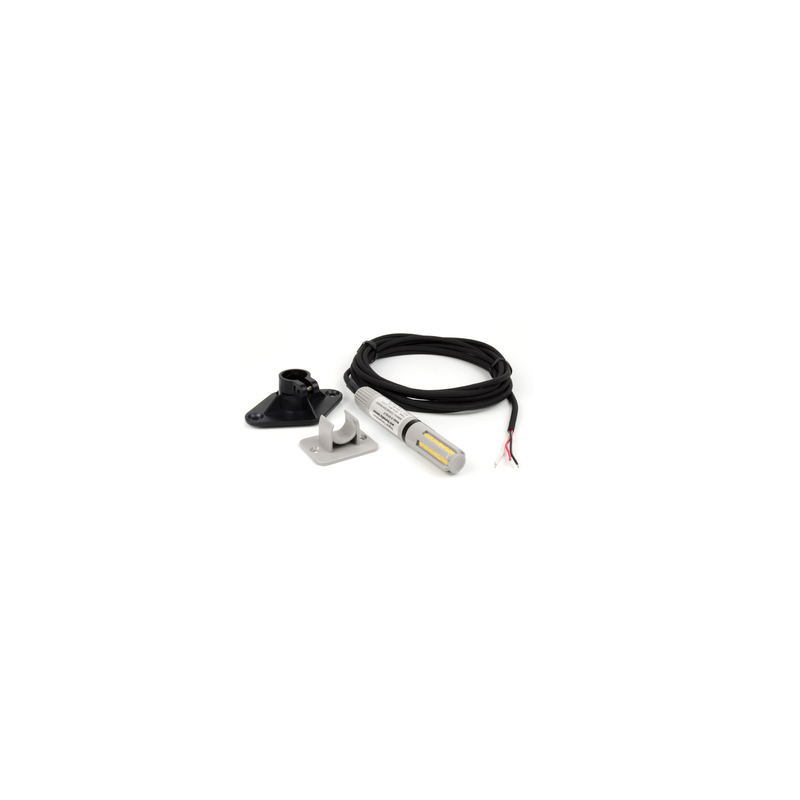

The X-DTHS-P is a new sensor and temperature sensing probe used with many of the 400 Series, X-600M and WebRelay Wireless products. Temperature and humidity are accurately measured, digitized and sent to the ControlByWeb module via a serial 1-wire data bus. One or more sensors can be connected to the 1-wire bus and the cable can be extended up to 180 meters from the module without loss of measurement accuracy. The X-DTHS-P comes with two mounting options: Mounting clamp - mounting against a surface. Thru-Wall Mounting Bracket. The bracket has a foam gasket that seals the access hole. Temperature / humidity sensor with accessories for wall mounting.
The sensor can be installed outdoors, but must be protected from the elements. Install the sensor in a protected location away from rain or direct sunlight. No additional software or power supply required. Simply connect and configure on one of our compatible products. Temperature sensor wiring: The sensor has three wires that connect to a compatible controller unit. If necessary, the cable can be extended with additional wire (max. 180 meters).
