There are 22 products.

Showing 1-20 of 22 item(s)

Active filters

Ethernet Module with Modbus...

Ethernet Module with Modbus TCP/IP. 2 x digital input, 2 x power relay output, I/O Pair connection, 12 - 48VDC

Ethernet I/O module Modbus/TCP / UDP slave
1 x RJ45 Ethernet
Redundant Power Supply
Protocol: TCP, UDP, HTTP, DHCP, BOOTP and TFTP
Web configuration and firmware update via Ethernet
2 x digital input (Wet - volts supplied)
2 x Relay, COM, NO - 250VAC 5A, 30VDC 5A
Avoid inductive load to relay contacts
With locked DI and 32-bit 3.5kHz counter
With I/O pair - input is mirrored in the other's output
Dual-watchdog with Power-on-safe value
Supply voltage: 12 - 48VDC, 1.7 Watt
Dimensions: 98 x 52 x 27 mm
Operating temperature: -25 - +75°C

Price 972.00 DKK
Product code: ETH-MOD2I2R-I
Physically in stock
  • 8 x Digital Input Wet /...

    8 x Digital Input Wet / Dry, 8 x Digital Output Over Ethernet Modbus/TCP, 2 x RJ45 to Daisy Chain. 12 - 48VDC.

    Modbus / TCP I / O module with built-in Web server
    Modbus / TCP and Modbus / UDP protocols
    2 x RJ45 Ethernet switch to Daisy-Chain topology
    Dual Watchdog
    Operating temperature range: - 25 to + 75 ° C
    I / O Pair connection - Ingang refles in the second's exit
    8 x Digital input: Wet (Apply Volt), Dry (Contact) - Digital Input: 0 - + 50CDC or Open / GND
    8 x Digital Outout, Open Collector 0 - 40VDC / 650MA
    Dimensions: 76 mm x 120 mm x 38 mm
    Supply voltage: 12 - 48vdc, 4 watt
    your bracket Wall mounting

    Price 2,982.00 DKK
    Product code: ETH-MOD8I8O
    On the way in
  • 12 x Digital inputs and 6 x...

    12 x Digital inputs and 6 x Digital outputs. 1 x RJ45 Ethernet. Modbus/TCP / Modbus/UDP. Pair-compound, 10 - 30VDC

    Built-in Web server
    Web HMI
    Support for both Modbus TCP and Modbus UDP protocols
    Communications Security
    1 x RJ45 Ethernet port
    Double watchdog
    Operating temperature range: -25 to +75°C
    I/O pair connection, the input is mirrored in the other's output
    Built-in I/O
    12 x Digital input: Wet / Dry, 0 - + 50VDC
    All entries are 32-bit counter 500Hz
    6 x digital output: Open Collector 0 - + 30VDC / 100mA
    Supply voltage: 10 - 30VDC

    Price 1,858.00 DKK
    Product code: ETHIO12I6O-I
    Physically in stock
  • 6 x Digital input 6 x Relay...

    6 x Digital input 6 x Relay output via Ethernet for industrial control applications. 2 x RJ45 Daisy Chain 10 - 30VDC

    6 x Digital Inputs - Wet (active at DC in)
    6 x Power relay outputs - 24VDC / 250VAC / 5A
    Protocol: Modbus TCP / UDP
    2 x RJ45 Ethernet interface
    With built-in network switch - with the daisy chain
    I/O Pair-function - the input is mirrored to the second output
    Digital inputs with counter - max 500Hz
    the minimum pulse width: 1 ms
    Screw terminal
    Supply voltage: 10 - 30VDC / 3watt

    Price 2,464.00 DKK
    Product code: ETHIO6I6PR-2I
    On the way in
  • 6 x Digital input, 6 x...

    6 x Digital input, 6 x Relay output via Ethernet for industrial control applications. 10 - 30VDC

    6 x digital inputs - Wet (active at DC input)
    6 x Power relay outputs - 24VDC / 250VAC / 5A (COM, NO)
    protocol: Modbus TCP / UDP
    1 x RJ45 Ethernet Interface
    I / O Pair Function - Input Mirrors for the second exit
    digital inputs with counter - max 500Hz
    Minimum pulse width: 1ms
    Screw terminals: 10 - 30vdc / 3Watt

    Price 1,977.00 DKK
    Product code: ETHIO6I6PR-I
    Physically in stock
  • 6 x Digital input, 6 x...

    6 x Digital input, 6 x Relay output via Ethernet for industrial control applications. 1 x RJ45 PoE

    6 x Digital Inputs - Wet (active at DC in)
    6 x Power relay outputs - 24VDC / 250VAC / 5A
    Protocol: Modbus TCP / UDP
    1 x RJ45 Ethernet interface with PoE in
    I / O Pair-function - the input is mirrored to the second output
    Digital inputs with counter - max 500Hz
    the minimum pulse width: 1 ms
    Screw terminal
    Supply voltage: PoE or 10 - 30VDC / 3watt

    Price 2,510.00 DKK
    Product code: ETHIO6I6PR-P-I
    Physically in stock
  • 6 x Digital input, 6 x...

    6 x Digital input, 6 x Relay output via Ethernet for industrial control applications. 2 x RJ45 daisy chain PoE

    6 x Digital Inputs - Wet (active at DC in)
    6 x Power relay outputs - 24VDC / 250VAC / 5A
    Protocol: Modbus TCP / UDP
    2 x RJ45 Ethernet interface
    With built-in network switch - with the daisy chain
    I / O Pair-function - the input is mirrored to the second output
    Digital inputs with counter - max 500Hz
    the minimum pulse width: 1 ms
    Screw terminal
    Supply voltage: PoE or 10 - 30VDC / 3watt
    PoE is NOT continued to LAN port 2 (data only)

    Price 2,741.00 DKK
    Product code: ETHIO6I6PR-P2I
    On the way in
  • 8 x Digital inputs Wet 0 -...

    8 x Digital inputs Wet 0 - + 50VDC 500Hz, 8 x Digital output (OC) + 40VDC 650mA, 2 x RJ45, Modbus TCP/UDP, 12 - 48VDC

    Built-in Web server
    Web HMI
    Modbus TCP and Modbus UDP protocols
    Good communication security
    Dual Watchdog
    Operating temperature range: -25 ~ + 75 ° C
    I/O Pair connection - the input is mirrored in the other's output
    8 x Digital input (count): 0 - + 50VDC (500Hz)
    8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
    2 x RJ45 Ethernet - daisy chain
    Supply voltage: 12 - 48VDC / 4Watt

    Price 2,300.00 DKK
    Product code: ETHIO8I8O-2I
    Physically in stock
  • Digital inputs 8 x Wet 0 -...

    Digital inputs 8 x Wet 0 - + 50VDC 500Hz, 8 x Digital output (OC) + 40VDC 650mA, 1 x RJ45, Modbus TCP / UDP 10 - 30VDC

    Built-in Web server
    Web HMI
    Modbus TCP and Modbus UDP protocols
    Good communication security
    Dual Watchdog
    Operating temperature range: -25 ~ +75°C
    I / O Pair compound - the input is mirrored in the other's output
    8 x Digital input (count): 0 - + 50VDC (500Hz)
    8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
    Supply voltage: 10 - 30VDC / 3watt

    Price 1,972.00 DKK
    Product code: ETHIO8I8O-I
    On the way in
  • 8 x Digital Inputs Wet 0 -...

    8 x Digital Inputs Wet 0 - + 50VDC 500Hz, 8 x digital output (OC) + 40VDC 650mA, 2x RJ45, Modbus TCP / UDP, PoE

    Built-in Web server
    Web HMI
    Modbus TCP and Modbus UDP protocols
    Good communication security
    Dual Watchdog
    Operating temperature range: -25 ~ + 75 ° C
    I/O Pair connection - input is mirrored in the other's output
    8 x Digital input (count): 0 - + 50VDC (500Hz)
    8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
    2 x RJ45 Ethernet - Daisy chain
    Power supply: PoE or 10 - 30VDC / 3watt
    PoE fed NOT proceed to the next module - only data

    Price 2,861.00 DKK
    Product code: ETHIO8I8O-P2I
    On the way in
  • 8 x PhotoMOS relay output -...

    8 x PhotoMOS relay output - not wear out, 60VDC 1A, 1 x RJ45 Ethernet. Modbus/TCP/UDP, 10 - 30VDC

    The Web server
    WEB HMI
    Modbus TCP / UDP Modbus
    Dual Watchdog
    Operating temperature: -25 ~ +75°C
    I/O Paie connection - input is mirrored to the other's output
    8 x PhotoMOS relay (solid state) COM NO
    Relay contact voltage: max 60VDC
    Relay contact current: max. 1A
    Switching times: on: 5ms, off: 0.3ms
    Optical isolation to 3000 Vrms
    Supply voltage: 10 - 30VDC / 3watt

    Price 2,056.00 DKK
    Product code: ETHIO8PR-I
    On the way in
  • 11-channel Power Relay...

    11-channel Power Relay Module for Ethernet / MODBUS with PoE. 2 LAN ports for Daisy Chain

    Built-in Web server
    Web HMI
    Modbus TCP and Modbus UDP protocols
    Good communication security
    2-port Ethernet switch for daisy-chain topology
    Double watchdog
    Wide operating temperature range: -25 ~ + 75 ° C
    I / O pair connection. Mirrors the input to output
    Built-in I / O to 11 x Power relay: 250VAC / 24VDC 5A
    Supply voltage: 10 - 30VDC
    PoE voltage is not fed to the LAN port 2
    DIN mount

    Price 2,752.00 DKK
    Product code: ETHIO11PR-P2I
    On the way in
  • 8 x Power Relay COM NO,...

    8 x Power Relay COM NO, 24VDC / 250VAC 5A, 1 x RJ45 Ethernet Modbus/TCP/UDP, PoE

    Built-in web server
    Web HMI
    Modbus TCP and Modbus UDP protocols
    Good communication security
    Dual Watchdog
    Operating temperature range: -25 ~ +75°C
    I/O Pair - second module's input is mirrored to output
    8 x Power Relay - electromechanical, COM NO
    Relay switching time: on: 10ms, off: 5ms
    Relay contact voltage and current: 24VDC/250VAC/5A
    Electromechanical: Avoid inductive load
    Supply voltage: PoE or 12 - 48VDC

    Price 2,441.00 DKK
    Product code: ETHIO8PR-P-I
    Physically in stock
  • 6 x Power relay, 6 x...

    6 x Power relay, 6 x digital input over Ethernet Modbus/TCP 1 x RJ45, PoE or 12 - 48VDC

    Modbus TCP Slave Module LAN or Internet
    6 x Relay, End Contact 250VAC / 5A, 30VDC / 5A
    Avoid inductive load
    6 x Digital input. High is 10 - 50V
    supply via PoE or 12 - 48VDC
    is with I / O Pair Connection - Input is mirrored to exit.
    with important "Sale Setting" which sets relays as desired
    watchdog which sets relays in "Safe Setting" in error detection
    Dim: 123 x 72 x 35 mm
    built-in your bracket

    Price 1,663.00 DKK
    Product code: ETH-MOD6I6R-P-I
    Physically in stock
  • Ethernet-based output...

    Ethernet-based output module with 2 x analog output, 4 x digital out with PWM, 2 x relay contact, MODBUS

    Multi-Network Output Module with Galvanic I / O
    10/100 Mbit Ethernet Connection
    Password Protected WEB Server
    2 Analog Outputs with Voltage and Power Generator
    0 - 20mA, 4 - 20mA, 0 - 24mA
    0 - 5V or 0 - 10V voltage output
    4 digital (open drain) outputs with ON / OFF or PWM
    2 relays with COM, NO and NC contacts
    4 scheduled actions, 1 time or weekly
    NTP, SNMP v2, SNMP trap for up to 5 recipients
    MODBUS TCP / IP
    HTTP upload with current status in XML or JSON remote server file
    HTTP API commands in server and client mode
    HTTP Post can be sent to 3 servers
    DIN rail / wall mounting
    Supply voltage: 10 - 32VDC / max 250mA

    Price 3,104.00 DKK
    Product code: TCW280
    Physically in stock
  • High Speed ​​8 analog...

    High Speed ​​8 analog inputs 200 kHz sample rate, 16-bit, 4 digital outputs, 4 digital inputs, -25 - + 75 ° C, PoE, 12-48VDC

    8 single ended input +/- 10V analog, +/- 5V
    200kS / s (200 kHz) for each channel sampling rate
    FIFO 2000 is sampled - the memory of 30 million data samples
    16bit solution
    Trigger mode: SW, Ext. clock, digital falling edge (post, pre, delay), analog
    1 x 32-bit counter, max. 30 kHz
    4 x digital input (wet) up to + 30VDC
    4 x digital output (Open Collector) up to + 30VDC, 100mA
    Overload protection up to 1.3A
    1 x Ethernet port RJ45
    Security: ID, password and IP filter
    Powered by the PoE or 12 - 48VDC, 2,6W
    Dimensions: 120 x 76 x 38 mm
    Housing: Metal, with DIN bracket
    Operating temperature: -25 - + 75 ° C

    Price 6,347.00 DKK
    Product code: ETHIO8AI8IO-P-I
    On the way in
  • High Speed ​​4 analogue...

    High Speed ​​4 analogue inputs 128kHz sample rate, 24-bit, 12bit 2 analog outputs, 1 EI, 7 digital I / O, -25 - + 75 ° C, PoE

    4 single ended input +/- 10V analog, +/- 5V, +/- 2.5V ... +/- 20mV
    128kS / s for each channel sampling rate
    FIFO: 4000 samples - memory 30 million data samples
    24bit resolution
    2 x analog output +/- 10V, +/- 5V, 0-5 / 10V
    analog output 12bit resolution
    Trigger mode: SW, Ext analog
    1 x 32bit counter, max. 30kHz
    1 x Encoder input: Qadrant / CW / CCW and pulse
    3 x digital inputs (wet) up to + 30VDC
    4 x digital output (Open Collector) up to + 30VDC, 100mA
    Overload protection up to 1.3A
    1 x Ethernet port RJ45
    Security: ID, password and IP filter
    Powered by the PoE or 12 - 48VDC, 2,6W
    Dimensions: 120 x 76 x 38 mm | Housing: Metal, with DIN bracket
    Operating temperature: -25 - + 75 ° C

    Price Call for price
    Product code: ETHIO4AI2AO7IO-P-I
    On the way in
  • 8 x analog high voltage...

    8 x analog high voltage inputs +/- 150VDC, 16bit, 4 x digital output to the LAN, Pair-mode, 2 x RJ45, -25 - + 75 ° C, 12 - 48VDC

    Ethernet I/O module for the measurement of analog high-voltage differential inputs
    8 x Analog input: +/-50V, +/-150V
    4 x Digital output - Isolated Open Collector, max. 50VDC, 700mA per channel
    16bit solution
    Sample frequency: Normal mode 10 samples per second
    Sample frequency fixed mode: 50 samples per second
    Supports MODBUS TCP and UDP
    Integrated Web Server - access with ID, password and IP filter
    Power up and safe levels can be programmed
    2 x RJ45 10 / 100Mbit ports - daisy-chain
    Pair-connection - mirror one input to others output
    Supply voltage: 12 - 48VDC 4,2Watt
    Dimensions: 120 x 76 x 38 mm
    Housing: plastic with DIN bracket

    Price Call for price
    Product code: ETHIO8AI4O-2-I
    On the way in
  • 8 x Power Relay Com N.O,...

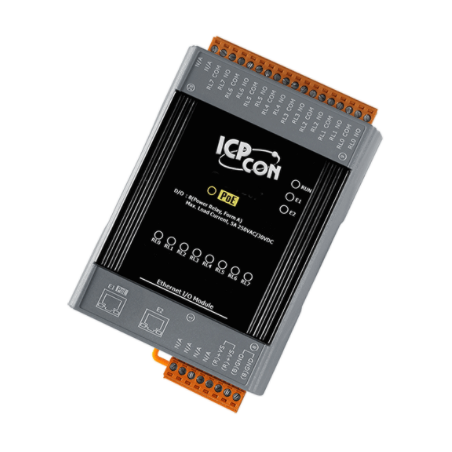

    8 x Power Relay Com N.O, 24VDC / 250VAC 5A, 2 x RJ45 Ethernet Daisy Chain, Modbus / TCP / UDP, PoE

    Built-in Web server
    Web HMI
    Modbus TCP and Modbus UDP protocols
    Good communication security
    2 x RJ45 Daisy Chain, only data is continued Further to Dual Watchdog
    Operating temperature range: - 25 ~ + 75 ° C
    I / O Pair Connection - Input Mirrors to another's output
    8 x Power relay - electromechanical, COM NO
    Rel becoming: On: 10ms, Off: 5ms
    Relay Contact voltage and current: 24VDC / 250VAC / 5A
    Electromechanical: Avoid inductive load
    supply voltage: POE or 12 - 48VDC

    Price 2,998.00 DKK
    Product code: ETHIO8PR-P2I
    On the way in
