Relæ til styring op til 230 VAC
250 VAC klæberelæ til DIN skinne
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
2 x RJ45 Daisy Chain, only data is continued Further to Dual Watchdog
Operating temperature range: - 25 ~ + 75 ° C
I / O Pair Connection - Input Mirrors to another's output
8 x Power relay - electromechanical, COM NO
Rel becoming: On: 10ms, Off: 5ms
Relay Contact voltage and current: 24VDC / 250VAC / 5A
Electromechanical: Avoid inductive load
supply voltage: POE or 12 - 48VDC

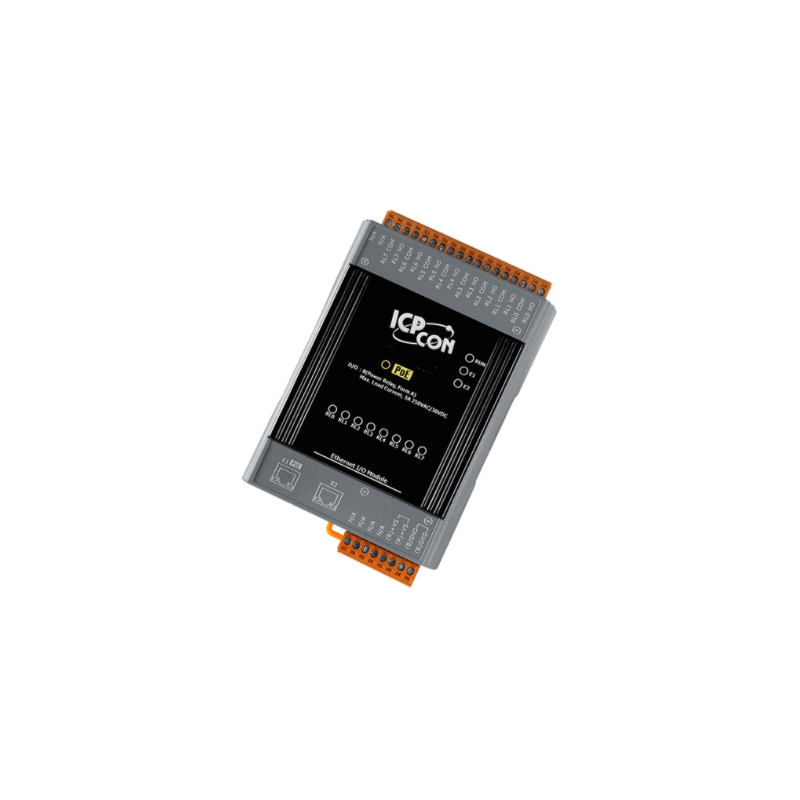

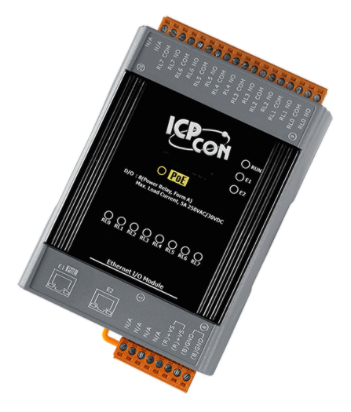

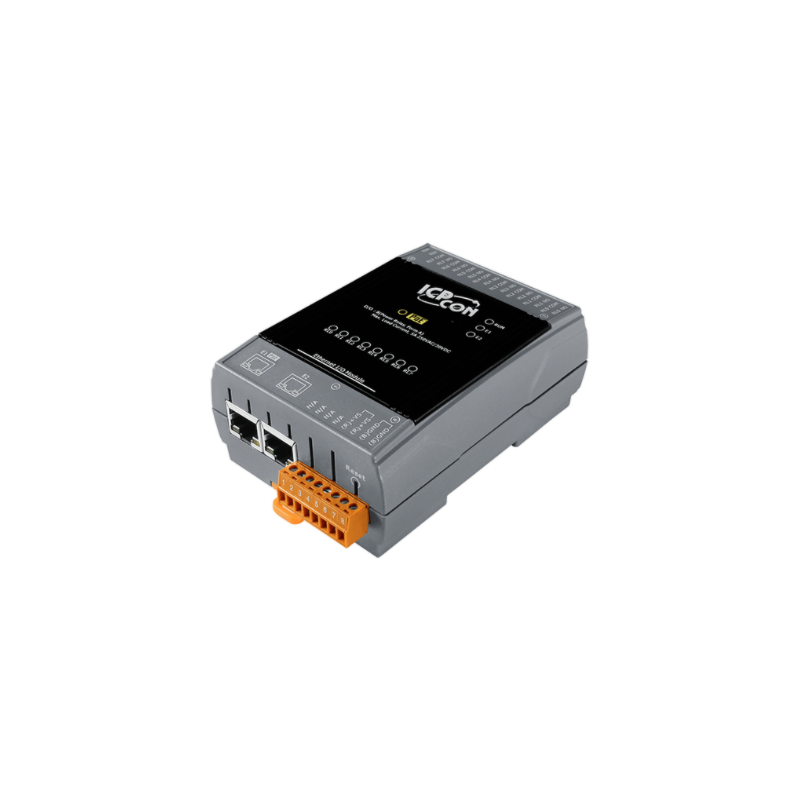

Ethio8PR-P2I provides 8 pcs form-A electromechanical relays com N.O. It has optical insulation for 3000 VDC of transient protection against overvoltage and does not have channel-to-channel insulation. The ignition value and the safe value of the relay are programmable. It can be safely used in applications where there are dangerous voltages.
250 VAC klæberelæ til DIN skinne
6 x Digital Inputs - Wet (active at DC in)
6 x Power relay outputs - 24VDC / 250VAC / 5A
Protocol: Modbus TCP / UDP
2 x RJ45 Ethernet interface
With built-in network switch - with the daisy chain
I / O Pair-function - the input is mirrored to the second output
Digital inputs with counter - max 500Hz
the minimum pulse width: 1 ms
Screw terminal
Supply voltage: PoE or 10 - 30VDC / 3watt
PoE is NOT continued to LAN port 2 (data only)
7 relay outputs (normally open contact)
Glavanisk isolated outputs
Switching time: ON: 5ms
RS485 bus
DIN bracket
10 - 30VDC / 1.5Watt
4 x relay outputs 2 end and 2 switch
4 x insulated inputs
supply voltage: 10 - 30vdc
1 x RS485 communication port
