8 x Digital inputs Wet 0 - + 50VDC 500Hz, 8 x Digital output (OC) + 40VDC 650mA, 2 x RJ45, Modbus TCP/UDP, 12 - 48VDC

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair connection - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
2 x RJ45 Ethernet - daisy chain
Supply voltage: 12 - 48VDC / 4Watt

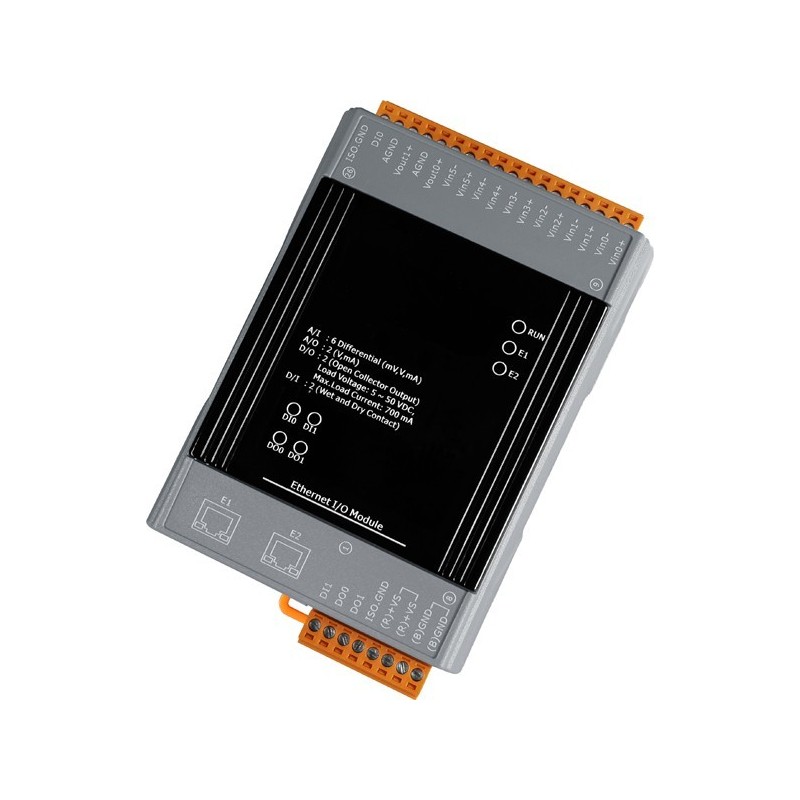

ETHIO8I8O-2I
2,300.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

ETHIO8I8O-2I provides 8 digital contact channels to vådkontakt and 8 digital output channels. It has optical isolation to 2500 VDC with transient over-voltage protection, but does not provide channel-to-channel isolation. Each input channel can be used as a 32-bit counter, and each output channel can drive 650 mA load. Ignition value and ensure value for digital output channel is programmable. It can be safely used in applications where hazardous voltages.

Forsyning
10 - 30 VDC, 2 W via klemrække
Indgang
8 stk. Logisk 0: 0 - 4 VDC, Logisk 1: 10 - 50 VDC
Netværk
10/100 Mbit m/RJ45-stik
Protokol
Modbus/TCP, TCP/IP og UDP
Switch
Indbygget 2 port Ethernet switch
Tæller
Indgange kan virke som 32 bit tæller, maks. frekvens 500 Hz
Udgange
8 stk. “open collector”: 10 - 40VDC / 650 mA (skal forsynes med ekstern forsyningsspænding som strømkilde til de 8 udgange)
