Web-based I/O module with 16 digital inputs with DRY contact and 2 port Ethernet switch

8 x analog inputs - Sample Rate 25 times per second
8 x input - Single ended: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
input 1 - 4 Can be 4-20mA
Web server for configuration and remote monitoring
Permissions: Administrator, Manager, User
Tasks
50 schedule planned
50 Conditional
20 overroubed
Email Alarms by Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Logging - Graph Presentation
static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: PoE or 9 - 28VDC

Web based controller with 8 digital inputs
Digital High is: +4 - +26VDC
8 x digital inputs Opto-isolated
Common ground
200Hz Counter - 24bit
Tasks: 50 Schedule Planned, 50 Conditional, 20 Tuffer Terms
Email Alarms by defined conditions
Supports encrypted e-mail servers such as Gmail
RTC with NTP server synchronization
No software required
Graph (Logged data)
HTTPS / TLS encrypted
Static or DHCP IP Address configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: 9 - 28VDC
Dim: 98 x 78 x 36 mm

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair connection - input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
2 x RJ45 Ethernet - Daisy chain
Power supply: PoE or 10 - 30VDC / 3watt
PoE fed NOT proceed to the next module - only data

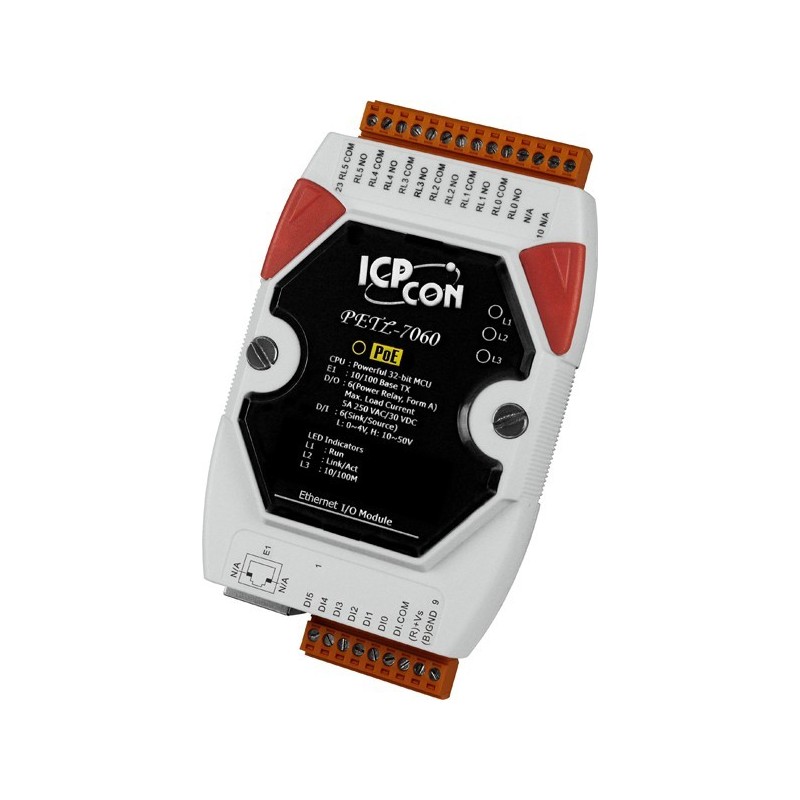

6 isolerede indgange med fælles stel og 6 relæudgange
