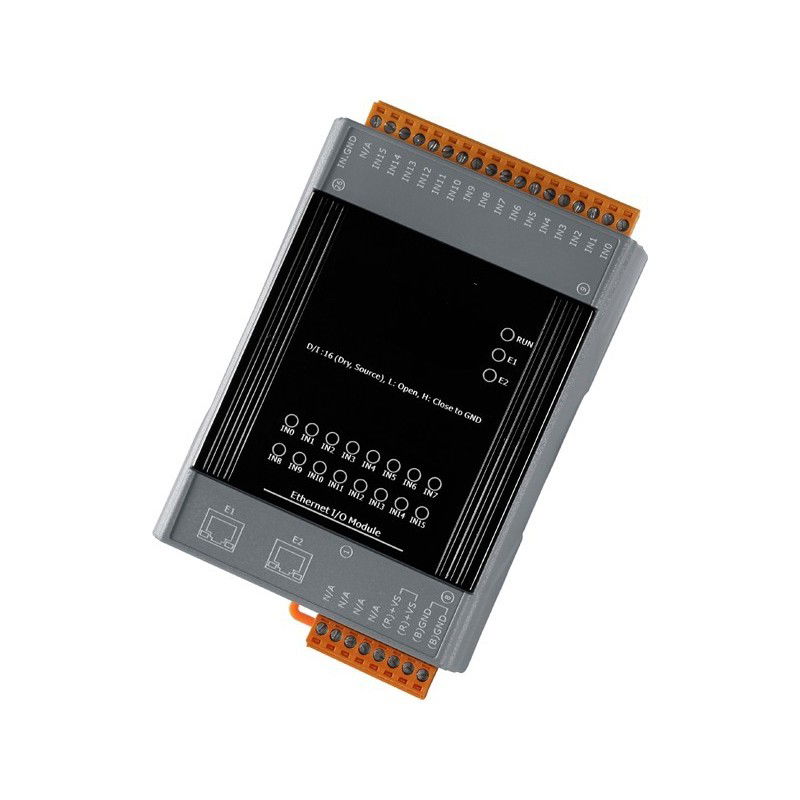

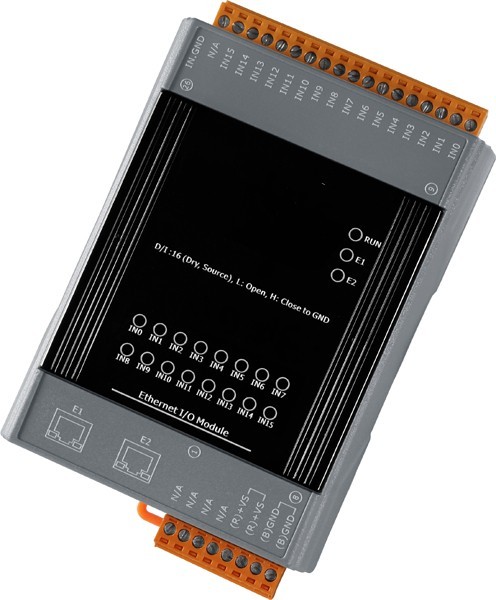

16 x digital inputs Dry contact input, 32bit counter 100Hz, 2 x RJ45, Modbus/TCP/UDP, POE and 12 - 48VDC
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I / O Pair - Input - Input Mirrors in the second's output
16 x Digital input (counter): Contact to input, DRY
2 x RJ45 Ethernet - Daisy Chain
Supply voltage: POE or 12 - 48VDC / 3.2Watt
$370.10
Excl. VAT
Quantity
On the way in
Product number ETHI16-P2I
Specifications
Forsyning | 10 - 30 VDC, 5 W via klemrække eller PoE |
---|---|
Indgang | 16 isolerede kanaler med fælles stel. Logisk 1: Svævende Logisk 0: Indgang lagt til stel |
Isolation | 3750 VDC |
Netværk | 10/100 Mbit m/RJ45-stik |
Protokol | Modbus/TCP, TCP/IP og UDP |
Switch | Indbygget 2 port Ethernet switch |
Tæller | Indgange kan virke som 32 bit tæller, maks. frekvens 500 Hz |
ETHI16-P2I provides 16 digital inputs - for drying (HIGE contact). It has optical insulation for 2500 VDC with transient protection against overvoltage, but does not provide channel-to-channel insulation. Each input channel can be used as a 32-bit counter. Powered with PoE. Is provided with 2 x RTJ45. One is for data + poe and the other is for data. Poe is not passed on to the next module.
