6 x Analog Differential input voltage and to mA. 2 x Analog output voltage and mA, 2 x Dig in 2 x Dig out, 2 x RJ45, PoE
Built-in Web server
Web HMI
Modbus / TCP and Modbus / UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair-link - the input is mirrored in the other's output
6 x Analog inputs: 500mV +/- - +/- 10 V, 0 - 20mA (16bit)
2 x Analog outputs: 0 - +/- 10VDC, 0 - 20mA (12bit)
10 samples per second
2 x Digital input (count): Wet / Dry, max. + 30VDC (100Hz)
2 x Digital outputs: Open Collector, max. 50VDC / 700mA
2 x RJ45 Ethernet Daisy chain
Supply voltage: PoE or 10 - 30VDC / 4Watt
$588.24
Excl. VAT
Quantity
On the way in
Product number ETHIO8I4O-P2I
Specifications
Forsyning | 10 - 30 VDC, 4 W via klemrække eller PoE |
---|---|
Indgang | 2 stk. Logisk 0: Lagt til stel Logisk 1: Åben 6 analoge differentialindgange: ±500 mV, ±1 V, ±5 V, ±10 V, 0 - 20 mA, 4 - 20 mA, ± 20 mA |
Indgangsimpedans | Analog indgange 2 MΩ |
Maks. hastighed | 10 samples/sekund |
Netværk | 10/100 Mbit m/RJ45-stik |
Nøjagtighed | Mindst ±0.1 % |
Opløsning | 16 bit |
Protokol | Modbus/TCP, TCP/IP og UDP |
Switch | Indbygget 2 port Ethernet switch |
Tæller | Digitale Indgange kan virke som 32 bit tæller, maks. frekvens 100 Hz |
Udgange | 2 analoge udgange: 0 – 5 V, 0 – 10V, ±5 V, ±10 V 0 - 20 mA, 4 - 20 mA. Opløsning 12 bit, nøjagtighed maks. ±0.05 %. 2 stk. "open collector” 30 V/100 mA |

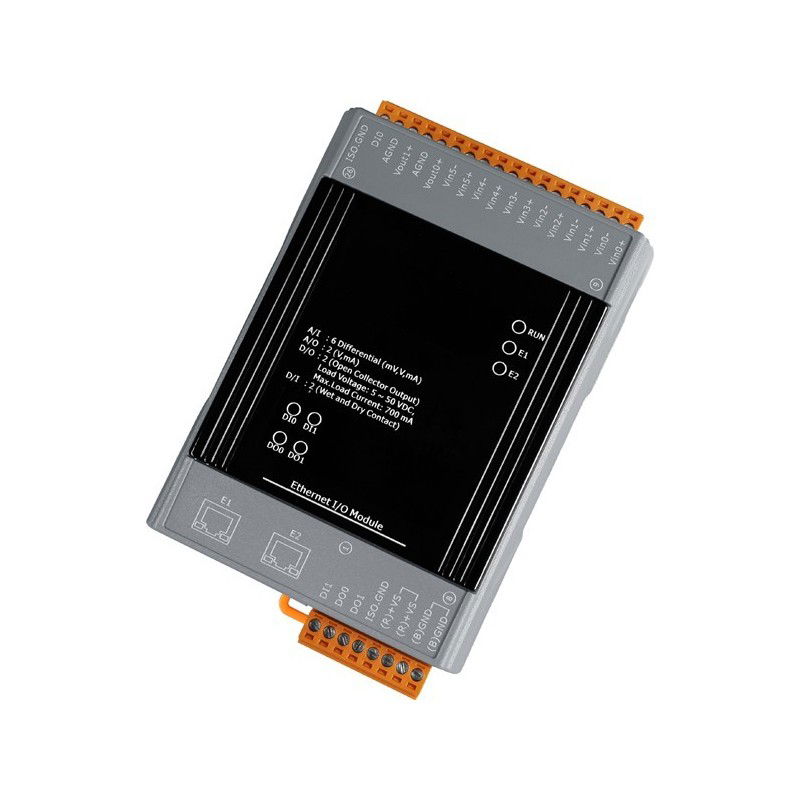

ETHIO8I4O-I is a multifunctional module with 6-channel analog inputs, 2-channel analog outputs 2-channel digital inputs and 2-channel digital outputs. It provides various programmable analog inputs (+/- 500 mV, +/- 1 V, +/- 5V, +/- 10V, +/- 20 mA, 0 ~ 20 ~ 4 mA and 20 mA) and analog outputs (+/- 5V, +/- 10 V, 0 ~ 20 ~ 4 mA and 20 mA). Each analog input has allowed to set up a proper range of 240 Vrms with high voltage protection. Each analog input / output can be programmed to accept the current or voltage as an input / output depending on the location of the corresponding jumper.
Andre produkter i samme kategori:
Ethernet module with 2 contact inputs, 1 relay output, PoE
Ethernet module with 2 digital inputs and 1 relay output
2 x digital dry contact - active high by connecting contact
1 x Power relay, 250vac / 5a, 30vdc / 5a
Avoid inductive load to relay
P2P Function that reflects an input to other module output
Supports Modbus / TCP and UDP Slave
Power supplied from PoE or 12 - 48VDC
PoE: IEEE802.3af, Class 1
Operating temperature: - 25 - + 75 ° C
Dim: 98 x 52 x 27 mm
DIN bracket
$157.97
Item Number: ETH-MOD2I1R-P-I
16 x digital inputs Dry contact input, 32bit counter 100Hz, 2 x RJ45, Modbus/TCP/UDP, POE and 12 - 48VDC
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I / O Pair - Input - Input Mirrors in the second's output
16 x Digital input (counter): Contact to input, DRY
2 x RJ45 Ethernet - Daisy Chain
Supply voltage: POE or 12 - 48VDC / 3.2Watt
$370.10
Item Number: ETHI16-P2I
6 x Power relay, 6 x digital input over Ethernet Modbus/TCP 1 x RJ45, PoE or 12 - 48VDC
Modbus TCP Slave Module LAN or Internet
6 x Relay, End Contact 250VAC / 5A, 30VDC / 5A
Avoid inductive load
6 x Digital input. High is 10 - 50V
supply via PoE or 12 - 48VDC
is with I / O Pair Connection - Input is mirrored to exit.
with important "Sale Setting" which sets relays as desired
watchdog which sets relays in "Safe Setting" in error detection
Dim: 123 x 72 x 35 mm
built-in your bracket
$243.46
Item Number: ETH-MOD6I6R-P-I
8 x Digital Inputs Wet 0 - + 50VDC 500Hz, 8 x digital output (OC) + 40VDC 650mA, 2x RJ45, Modbus TCP / UDP, PoE
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair connection - input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
2 x RJ45 Ethernet - Daisy chain
Power supply: PoE or 10 - 30VDC / 3watt
PoE fed NOT proceed to the next module - only data
$418.85
Item Number: ETHIO8I8O-P2I
8 x Digital Inputs Wet 0 - + 50VDC 500Hz, 8 x digital output (OC) + 40VDC 650mA, 1x RJ45, Modbus TCP/UDP, PoE
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair connection - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
| 1 x RJ45 Ethernet
Power supply: PoE or 10 - 30VDC / 3watt
$323.25
Item Number: ETHIO8I8O-P-I
8 x DI Wet/Dry 0 - +50VDC 500Hz, 8 x DO +40VDC 650mA, 2 x RJ45, Modbus TCP/UDP, PoE and 12 - 48VDC
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair - Input Mirrors at the second's output
8 x Digital input (counter): 0 - + 50VDC (500Hz) - Wet / Dry
8 x Digital output: Open Collector 0 - + 40VDC / 650MA per Ch
2 x RJ45 Ethernet - Daisy Chain
Supply voltage: POE or 12 - 48VDC / 4Watt
$450.47
Item Number: ETHIO8I8O-P2I+
6 x Digital input, 6 x Relay output via Ethernet for industrial control applications. 2 x RJ45 daisy chain PoE
6 x Digital Inputs - Wet (active at DC in)
6 x Power relay outputs - 24VDC / 250VAC / 5A
Protocol: Modbus TCP / UDP
2 x RJ45 Ethernet interface
With built-in network switch - with the daisy chain
I / O Pair-function - the input is mirrored to the second output
Digital inputs with counter - max 500Hz
the minimum pulse width: 1 ms
Screw terminal
Supply voltage: PoE or 10 - 30VDC / 3watt
PoE is NOT continued to LAN port 2 (data only)
$401.28
Item Number: ETHIO6I6PR-P2I
