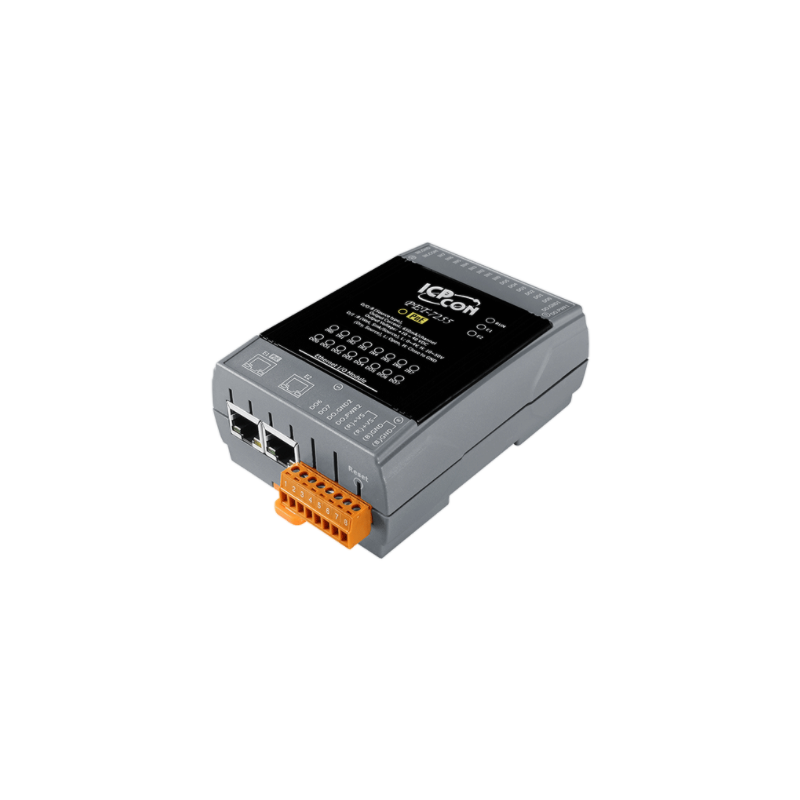

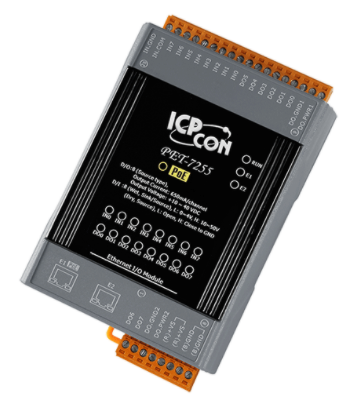

8 x DI Wet/Dry 0 - +50VDC 500Hz, 8 x DO +40VDC 650mA, 2 x RJ45, Modbus TCP/UDP, PoE and 12 - 48VDC

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C

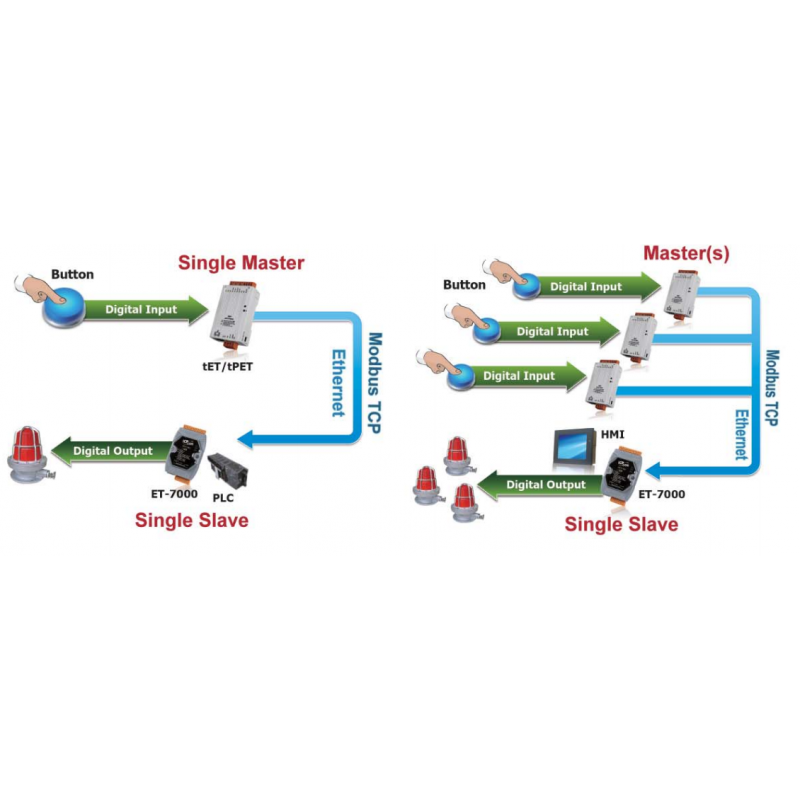

I/O Pair - Input Mirrors at the second's output
8 x Digital input (counter): 0 - + 50VDC (500Hz) - Wet / Dry
8 x Digital output: Open Collector 0 - + 40VDC / 650MA per Ch
2 x RJ45 Ethernet - Daisy Chain
Supply voltage: POE or 12 - 48VDC / 4Watt

Reference: ETHIO8I8O-P2I+

3,077.00 DKK

Tax excluded

Quantity

Physically in stock

Download PDF
Downloads

Ask a question

Description
Product Details

Ethio8i8o-p2i + provides 8 digital contact channels for WET or DRY contact and 8 digital output channels with Open Collector. It has optical insulation for 2500 VDC with transient protection against overvoltage, but does not provide channel-to-channel insulation. Each input channel can be used as a 32-bit counter, and each starting channel can run 650 mA load. Safe value for digital output channel is programmable. It can be used in applications where there are dangerous voltages. Powered with PoE. Is provided with 2 x RTJ45. One is for data + poe and the other is for data. Poe is not passed on to the next module.

Forsyning: PoE eller 12 - 48VDC, 4Watt
Indgang: 8 stk. Wet (tilfør volt) eller Dry (kontakt
Netværk: 10/100Mbit 2 x RJ45 PoE og data til Daisy chain
Protokol: Modbus/TCP / UDP
Tæller: Indgange som 32 bit tæller 500Hz
Udgange: 8 stk. Open Collector maks. 40VDC 650mA/ch
