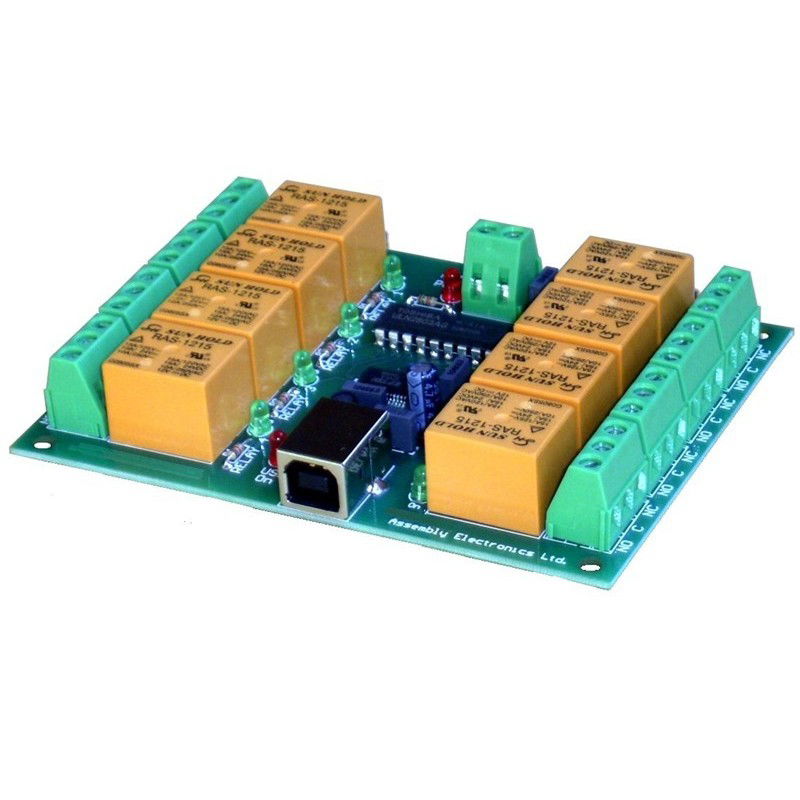

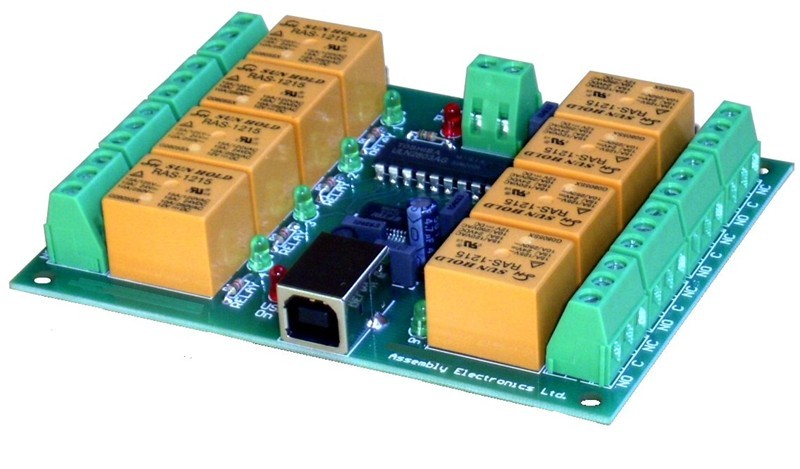

Compact Open Board with 8 relay exits
250V / 10A Only resistive load
Controlled from USB
supply voltage: 5VDC
supply via DC Jack or terminal block
No cabinet
Installed via HID driver, for example, can be controlled via USB-relay-HID (software)
during PC boot or connection to USB relays can change mode
Net adapter 12V, 1A - Switch mode
Output: 12VDC / 1Amp
230VAC input
Power plug: 5.5 / 2.5 mm
Cable color: + Red, - White
Versatile frequency counter, pulse counter via the USB port
Powered from the USB port
A total of 8 entries, of which:
4 channels for UP/DOWN, DIR/PULSE, Phase AB
8 channels for Count-Up and frequency counter
32 bit resolution
Max. 500kHz (non-isolated)
Input voltage: 0 - +30V
USB 2.0
YOUR assembly
Dimensions: 107 x 102 x 33 mm
Operating temperature: -25 - + 75°C
8 final lecturer 250 VAC 5 A
USB type B with screw terminals
USB 2.0 Full-Speed via USB port
Plug-and-Play
PWR / RUN / ERR LED lamps
For YOUR rail mounting
Operating temperature: -25 to + 75 °
Active sub-D 25 connectors with built-in TTL I / O
Connect to USB Port
24 TTL I / O Programmable channels
Buying Relayer - Term25R8OPTI8
Relayer has 8 x optoisolated entries
The relay card has 8 x relay outputs
when purchasing input and relay cable
Recommended cable K-DB25M-F0.75
Compact open board with 1 relay output
250VAC / 30VDC / 10A resistive load only
Controlled from USB via HID (E.g. usb-relay-hid )
Supply voltage: 5VDC via USB
No cabinet
Please note no software is included
Get info on USB-RELAY-HID software online.
