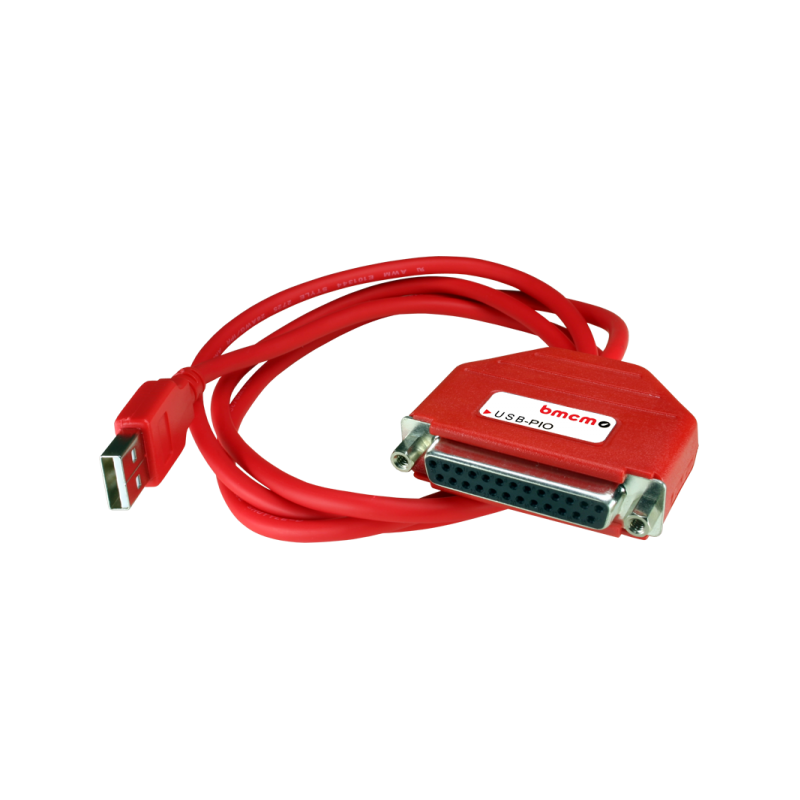

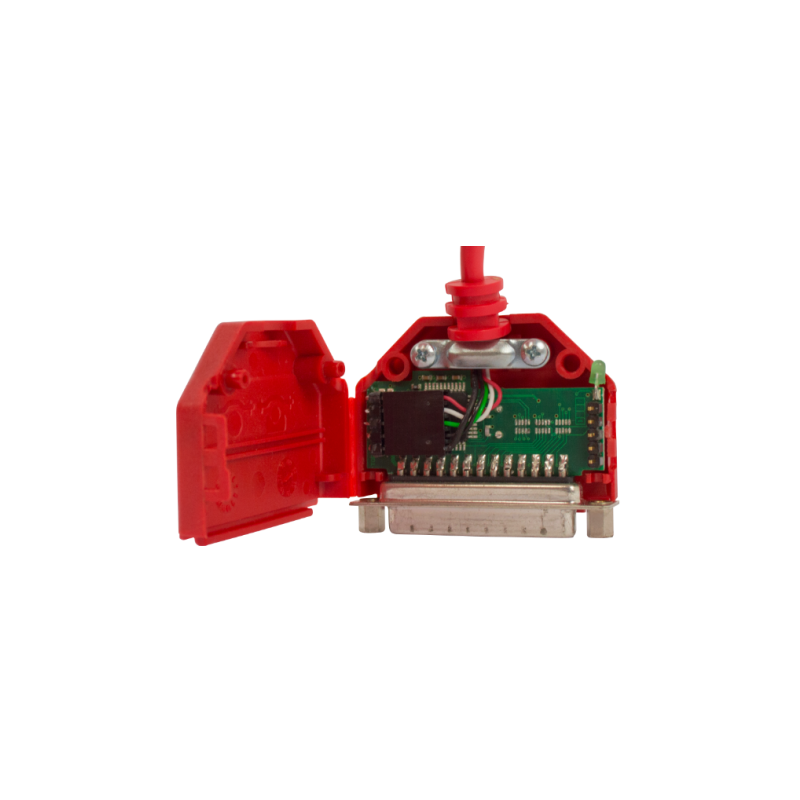

Active sub-D 25 connectors with built-in TTL I / O
Connect to USB Port

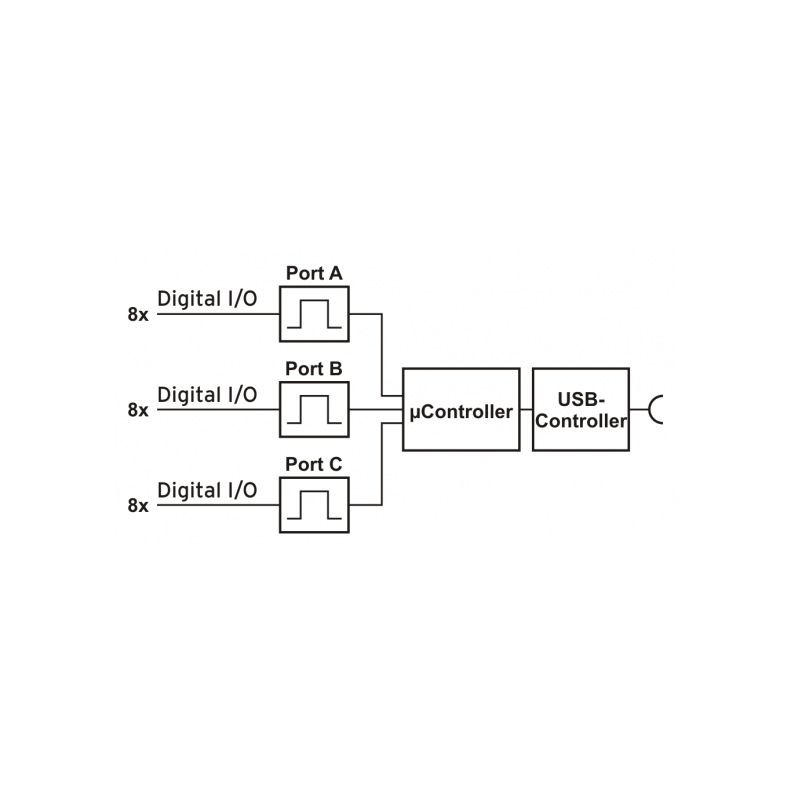

24 TTL I / O Programmable channels
Buying Relayer - Term25R8OPTI8
Relayer has 8 x optoisolated entries
The relay card has 8 x relay outputs
when purchasing input and relay cable
Recommended cable K-DB25M-F0.75
USB-DIO24 har 24 programmerbare I/O kanaler, der kan sættes individuelt som ind- eller udgange. Kan bruges sammen med TERM25R8OPTI8 (8 optoisolerede indgange og 8 relæudgange og TERM25R8 (8 relæudgange).
Gender changer with 2 x DB25 connector
Adapter, DB25 hanstik, 37 x 8 mm, inkl. kappe
Terminal cards with 25 and 10 screw terminals
DIN-Rail Mounting
9-pin D-sub connector
25-pin D-sub connector
Pin to Pin screw terminal
Dimension: 148mm x 76mm
Active Terminal Cards
Input Levels: Logical 0: 0-0.8, Logical 1: 5 - 30 V
8 End Phrases 250 VAC 6 A
DB25 Male
30 x 100 x 160 mm

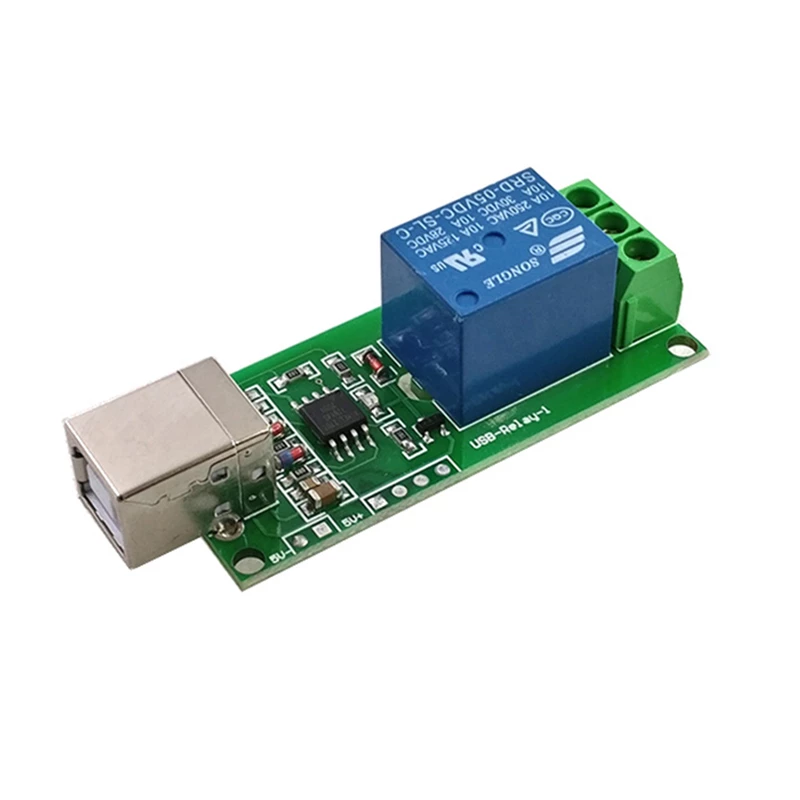

Compact open board with 1 relay output
250VAC / 30VDC / 10A resistive load only
Controlled from USB via HID (E.g. usb-relay-hid )
Supply voltage: 5VDC via USB
No cabinet
Please note no software is included
Get info on USB-RELAY-HID software online.
Compact open board with 4 relay outputs
250VAC / 30VDC / 10A resistive load only
Controlled from USB via HID (E.g. usb-relay-hid )
Supply voltage: 5VDC
Supply via DC jack or terminal block
No cabinet
Please note no software is included
Get info on USB-RELAY-HID software online.
Compact Open Board with 8 relay exits
250V / 10A Only resistive load
Controlled from USB
supply voltage: 5VDC
supply via DC Jack or terminal block
No cabinet

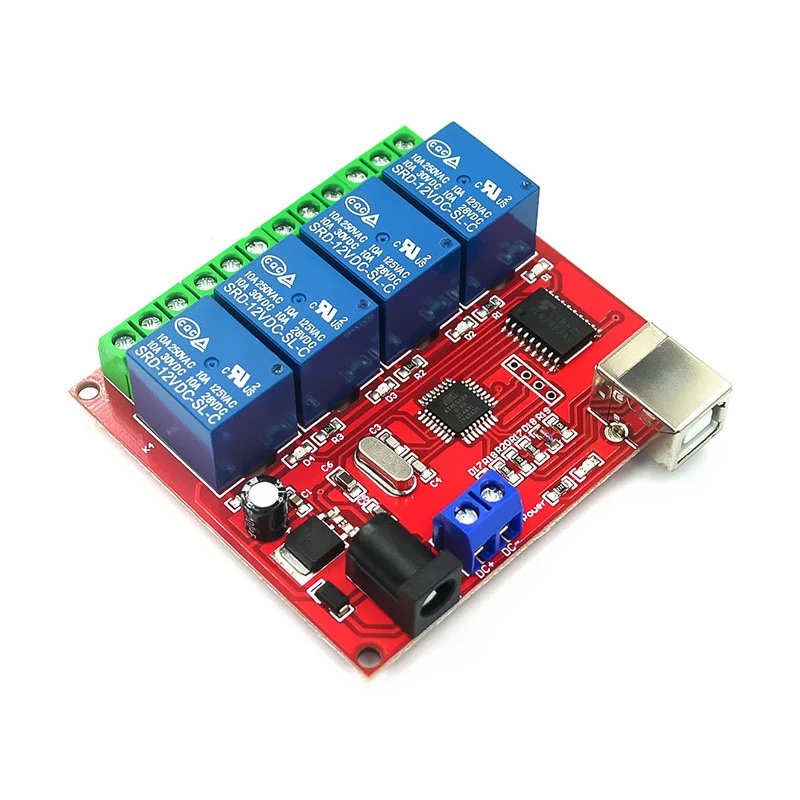

Compact open board with 4 relay outputs
250VAC / 30VDC / 10A resistive load only
Controlled from USB via HID (E.g. usb-relay-hid )
Supply voltage: 12VDC
Supply via DC jack or terminal block
No cabinet
Please note no software is included
Get info on USB-RELAY-HID software online.
