Vandtætte

12.1" LCD 1280 x 800 LED 400 Nits
Intel®Celeron J6412 processor Intel® Elkhart Lake
BISO UEFI
Support DDR4-2666/2933/3200MHz, Max. Capacity 32GB
2 x HDMI
3 x USB 3.0
3 x USB 2.0
2 x LAN
1 x Line-out
1 * M.2 Key-M(NVMe SSD 2280), 1 * M.2 Key-B Slot
Security support TPM 2.0 onboard IC
Standard IP66/IP67 models I/O: 1 x HDMI, 2 x USB, 1 x LAN.
(Needs to be ordered special: connector type: M12 Metal connectors, MIL-38999, MIL-26482 series connectors
-15°C ~ 70°C (5°F ~ 158°F) , 10% ~ 90% (no condensation)

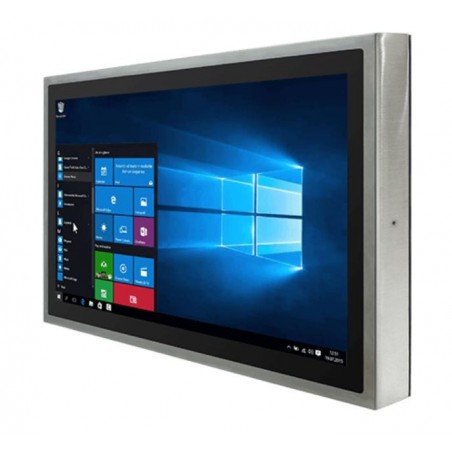

21.5" TFT 1920x1080
standard 250Nits (on special request 100 or 1500 nits)
PCAB Multi Touch Screen, Support touch with glove/ Rain mode
Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) Gen 11.
1 x SO-DIMM DDR4 3200MHz, MAX.32GB
M12 waterproff connectors
2 x Rj45 Intel Ethernet
1 x M.2 2280 NVMe SSD
1 x RS232
1x SATAIII
TPM 2.0
IP67K
VESA: 200x100 M4
Addons: "Optical Bonding", YOKE mount
541x337x56.2mm
10Kg
Stainless Housing SUS 316/ AISI 316
10% to 90% RH, Non­Condensing
Working Temperature 0°C to 45°C
12Vdc (M12 Type)
CE, FCC

21.5" TFT-LCD
Intel Celeron Processor N2930
8GB DDR3L onboard
1 x 128GB 2.5" MLC SSD mounted
1 x 64GB mSATA MLC SSD mounted
316 Stainless Steel Chassis
Total IP66 Grade with M12 Waterproof Connector
Variety of IO applications
Wide range DC 9~36V Power Input
Support Panel Mount & VESA Mount
Support Projected Capacitive Touch
Full Flat Bezel and Fanless Design
ATEX/IECEx Zone2, Zone22 and C1D2/C2D2/C3 Certified

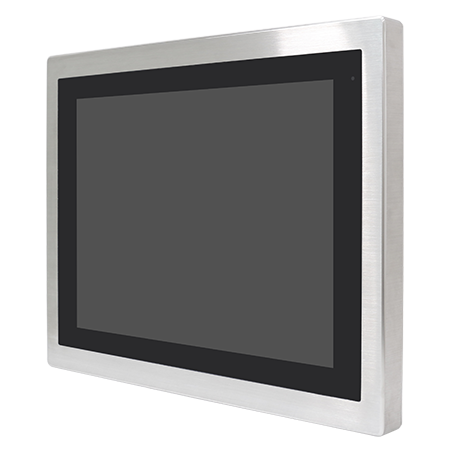

• 15.6" PanelPC TFT-LCD with 1920x1080 resolution.
  300 cd/m² (nits) luminance.
  Contrast ratio: 500:1
  Capacitive touch
  Intel Celeron J1900 SoC (opt.: i3,i5,i7 on order contact our sales department)
• DDR3L/DDR4 (depends on CPU)
  2 x USB port
  1 x Gigabit Ethernet.
  Robust frame in stainless steel
• Full IP65 rating for industrial environments.
  VESA mount 100/75mm
  422,30x272,30x47mm (WxHxD)
  24Vdc

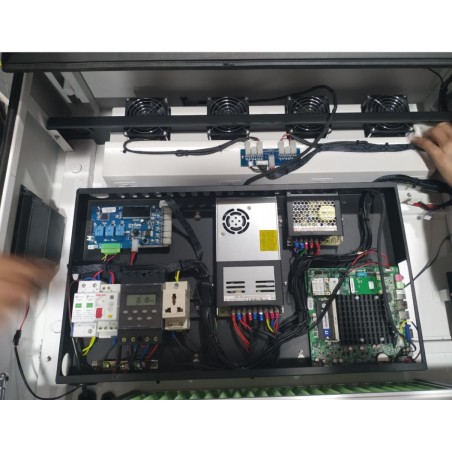

32" LCD
J1900 CPU
64GB SSD
4GB RAM
resolution 1920x1080
High nits: 1500
Light sensor
IP65
WiFi
Ethernet
Wall mount
Kg 55
-20 ^o -45 ^o C
110/240vac
865x610x300 mm (wxhxd)
Windows 10 support
Without touch!

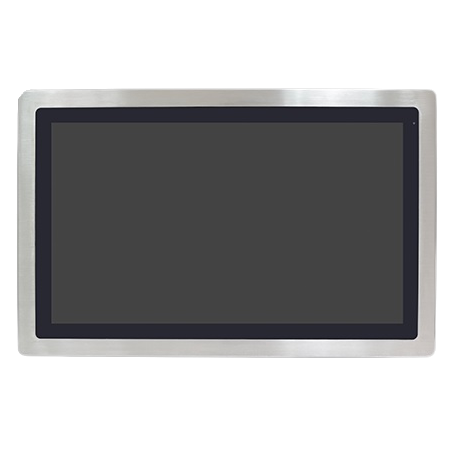

21.5" PC in stainless steel
1920x1080 250nits, (Special request 1000Nits for sunlight use)
I3 or I5 CPU
RAM max. 64GB
M.2 1 x 2280 (sata default, PCI-e selection in BIOS) for SSD
USB 1x M12 waterproof
COM 1x M12 RS232/422/483 (default RS232) waterproof
Lan 1x M12 waterproof
1x Full size mSATA/mPCI
1x NANO SIM
1x m.2 E-Key 2230 (PCIe+USB) for WIFI/BT module
easy-to-clean front design
Grade 304 stainless steel cabinet
(option 316 Stainless steel cabinet can be ordered on request)
IP66 / IP69K IP
M12 connector
Can be ordered with Resistive Touch, Projected Capacitive Touch and Glass (specified when ordering)
Press the on/off button on the side edge for hygienic reasons
100x100 Vesa mounting
Yoke Mount (is without stand, must be ordered separately)
571 x 362 x 55 mm
0~50°C
DC 9~36V
CE/FCC Class A
OS Support: Windows 10 IoT ENT LTSB, Windows 11

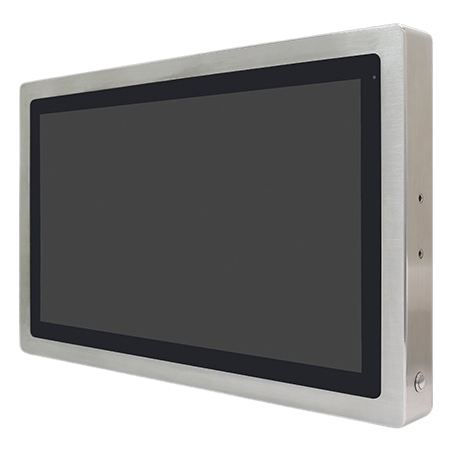

23.9"  Stainless Steel Panel PC
8th Gen Core i5-8365UE 1.6GHz,  or Core i3-8145UE  2.2 Ghz
1 x 260 SO-DIMM DDR4 2400MHz max. 32GB RAM
TPM 2.0
1 x M12 Ethernet
1 x M12 RS232/422/485 default 232
1 x M12 USB 2.0
1 x 2½" SATA3 SSD  (opt)
1 x M.2 ;M-key (PCIe x4/SATA3 Auto detect), Support 2242 default
RFID mpdul design for fron as OPT. (need to be ordered)
1 x Mini PCIe for 4G/5G. Wifi/BT
1 x Nano sim socket
easy to clean Design
Grade 304 Stainless Steel Enclosure
(Option 316 can be ordered special)
IP66/IP69K IP
M12 Connectors
Standard 250 nits, (High Brightness on request 1000 nits)
Resolution 1920 x 1080
Can be ordered with Resistive Touch, Projected Capacitive Touch, and Glass (Specified when ordered)
Touch on/off Button on the Side Edge for Hygienic Cleaning
Special order can be with 2 x M12 spare for (2x USB2.0 or 1 x USB 3.0 or 1 x LAN or 1 x COM)
Vesamount
YOKE-Mount as opt.
DC 9~36Vdc
OS support: WIN 10 / WIN 11

Fanless and rugged design
7th Gen Intel® Core™ i3 7100U / i5 7300U / i7 7600U CPU
Resolution 1280 x 1024 dpi
5 Wires Resistive touch solution
Full 304 IP65 6 sides stainless enclosure
All IP65 M12 waterproof connectors
1 x USB, 2 x RS232, 1 x GLAN
VESA mount Yoke mount
Full 316 IP65 6 sides stainless enclosure optional
Optical bonding, high brightness sunlight readable solution
OS SUPPORT:WIN10 pro/ embedded/ IOT/ Linux Fedora 25, Ubuntu 16.04

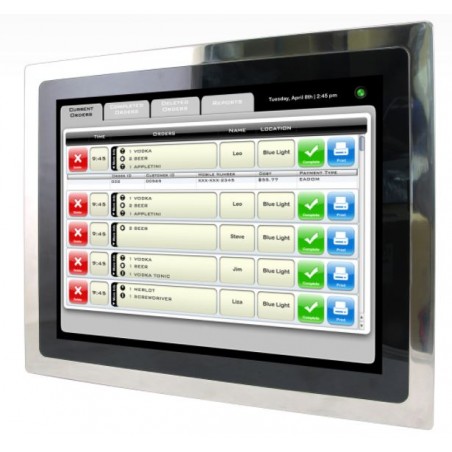

Processor Intel® Celeron® Processor N3350
Intel® Apollo Lake SoC with integrated chipset
Projective capacitive touch screen
Full Flat Design
Waterproof ON/OFF Button
2 x USB
1 x COM (DB9)
1 x LAN Metallurgy Waterproof Connector
Full System IP65, IPX9K
Addons must be ordered separately: NFC / WiFi / auto dimming / high brightness Solution​

15" til 21.5"
CPU N2930, i3/i5 Gen.6
1 x Mini PCIe (udvidelse)
M12 Interfave til VGA, USB, RS232/422/485 (vantætte stik)
450 til 1000 cd/m2 lysstyrke
Max opløsning fra 1024x768  til 1920x1080 afhængig af skræemstørrelse
Projected Capacitiv Touch
Forsyningsspænding DC 9~36V
316 Stainless Steel
Vesa mount eller Panel Mount
GODKENDELSER:
CSA C22.2 No.61010
CE / FCC Class A, ATEX Zone2 Ex nA ic IIC T4 GcClass I, Division2, Group ABCD T4ANSI/ISA 12.12.01-2013CSA Std. C22.2 No213-1987

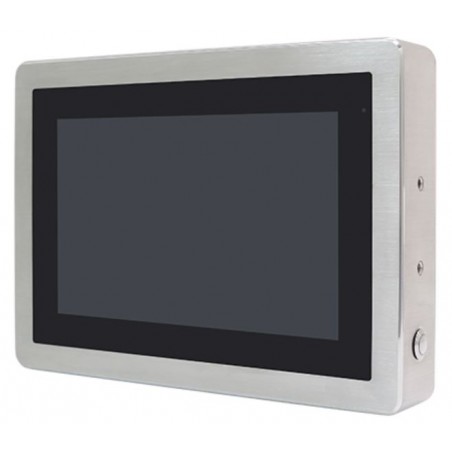

10.1” Stainless Steel Panel PC
350 cd/m2
Intel Celeron N2930 1.83 GHz Onboard Processor
8GB Onboard DDR3L SDRAM max. 8GB total
Flat front frame Design
grade 304 stainless steel housing (Grade 316 is Option)
IP66 / IP69K Rated with M12 connector
Support resistive touch, expected capacitive touch, and Glass Touch
on / off button on the side Edge for hygienic cleaning
Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
OPTION HIGH BRIGHTNESS 1000cd/m2

Built To Order
17 "Panel PC (optional: 15" / 19 "contact us)
Option: CPU Intel 6th gen. Core i3-6100 or I5
4GB 1 x SO DIMM DDR 3L (option 8GB)
Projective Capacitive Touch (pcap)
1x USB2.0 M12 8 pin
1x RS232 / 422/485 COM1 M12
1x Ethernet M12
1 x POWERM13 3 PIN 9 ~ 36V DC
1 x 2.5 "SATA SSD
1 x mPCIe slot for Option: Wifi / BT
Available with OS, RAM, CPU, SSD installed
Option: RFID on the < br> Option: 1000nits
Option: 2 x M12 can be used to ONE of the following extensions:
2x USB2.0
1x USB 3.0
1x LAN
1x COM
1x CAN

Build To Order
15 "Panel PC (optional: 17" / 19 "contact us)
Option: CPU Intel 6th gen. Core i3-6100 or I5
4GB 1 x SO-DIMM DDR 3L (option 8GB)
Projective Capacitive Touch (pcap)
1x USB2.0 M12 8 pin
1x RS232 / 422/485 COM1 M12
1x Ethernet M12
1x POWER M12 3 PIN 9 ~ 36V DC
1x 2.5 "SATA SSD
1x mPCIe slot for Option: Wifi / BT
324 x 399 x 53mm
Available with OS, RAM, CPU, SSD installed
Option RFID on the side
Option: 1000nits
Option: 2 x M12 can be used to ONE of the following extensions:
2x USB2.0
1x USB 3.0
1x LAN
1x COM < br> 1x CAN

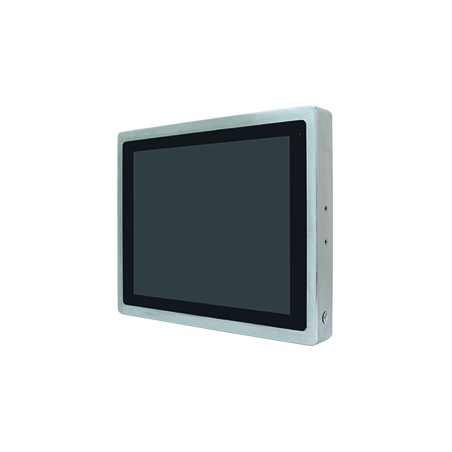

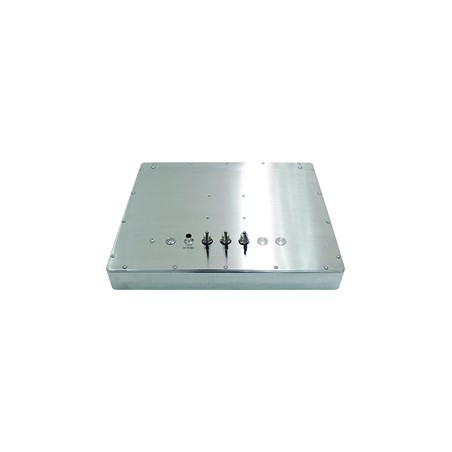

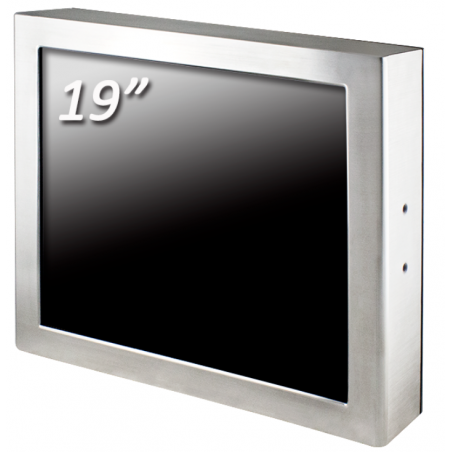

19 "TFT-LCD 1280x1024
Projected Capacitive Touch.
Intel 6th Core I3-6100U 2.3GHz (Option I5 3.0 GHz CPU)
Max. 16GB RAM DDR4
Flat Front Bezel
Grade 304 Stainless steel cabinet (Grade 316 for option).
IP66 / IP69K RATED with M12 connector.
Option: RFID
Press the power button on the side edge of Hygienic Cleaning.
OS Supoort: Windows Embedded 7 / 8.1, Windows 10 Iot Ent Ltsb
9 ~ 36v DC Power Input

10.1 " TFT LED panel with Capacitive touch display
Intel® Pentium® N4200
System memory max 8G SDRAM
Internal SATA 2.5" HDD and m.2 2242 socket
M12 Connectors 1 GbE LAN, 1 2xUSB2.0, 1COM
VESA and Yoke mounting
9~36 V DC Power Input Connectors (Waterproof switch)
-20~60° C Operating Temperature

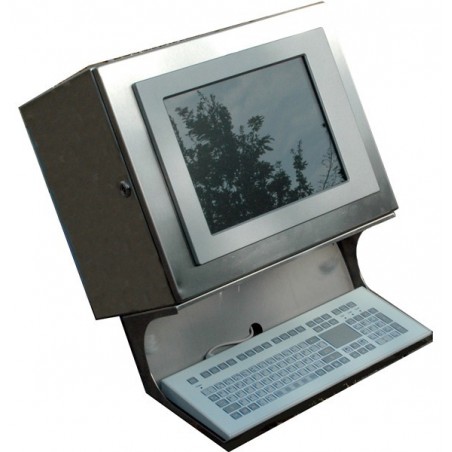

Panel PC i rustfrit stålkabinet m/tastaturholder og tastatur.

24" FHD TFT LCD display med LED backlight
G3 4th gen. Intel® Core™ i7/i5/i3, Celeron® & Pentium® mobile proc.
Build-to-order - bestykkes efter ønske
EN60601-1 og CE godkendt
IP65 tæt front
10-punkts multi-touch
Antimicrobakteriel kabinet
Super tynd og letvægt design
vægbeslag, VESA beslag og fod

24" 16:9 1920 x 1080 250 nits
Intel Hasswell CPU (max. 45W)
Max. 8GB RAM
PCAP Touch (multi Touch)
6 x USB
2 x RJ45 Gbit
Option: Wifi, MSR, RFID ect.

Barbone
18.5 "wide LCD, 1366 x 768, 1000nts
Fanless design
3rd Gen. I3 / I5 / I7 Intel® mobile processor support
Resistive touch screen
4 USB < br> 2 LAN
IP68
Wide range DC 15 ~ 35V input

27"  1920x1080
IP65
Touch
Ethernet
2½" HDD/SSD
WIN 7/ XP support
12Vdc
