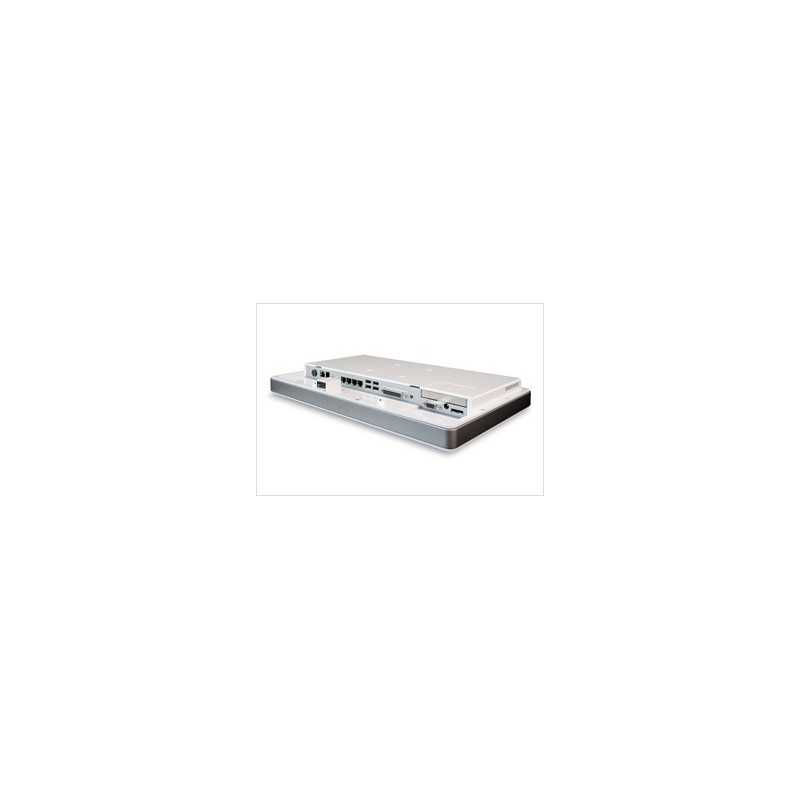

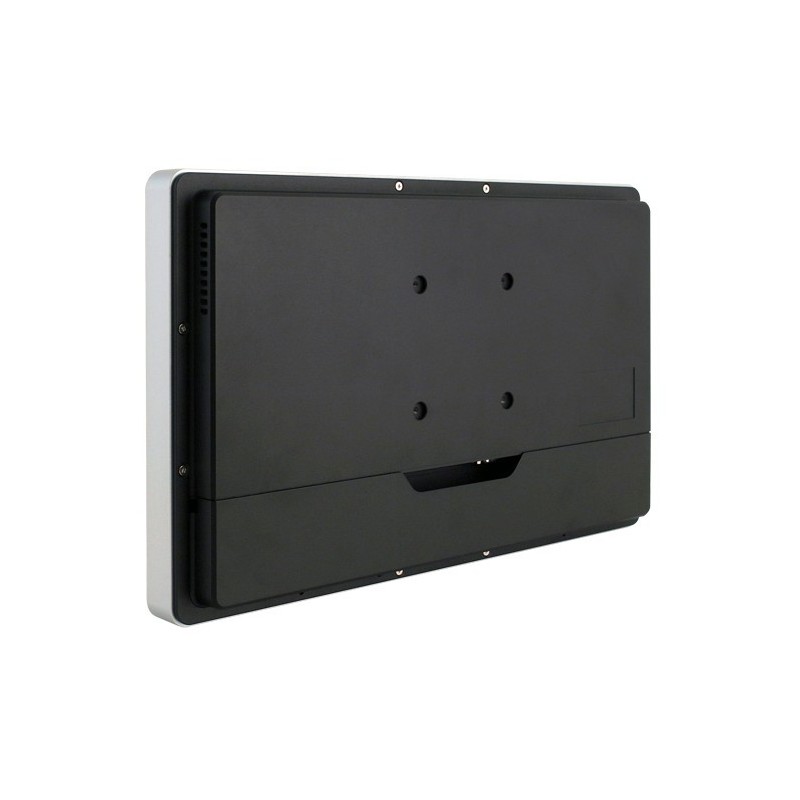

Medicinal panel PC med touch
Medicinal panel PC 18,5" med touch skærm.
24" 16:9 1920 x 1080 250 nits
Intel Hasswell CPU (max. 45W)
Max. 8GB RAM
PCAP Touch (multi Touch)
6 x USB
2 x RJ45 Gbit
Option: Wifi, MSR, RFID ect.
Medico godkendt panel PC i henhold til FCC Class A, CE, LVD EN60601-1, UL 60601-1 3rd.
Option med batteri drift. Kan konfigurers i henhold til ønske.
Kontakt vores salgsafdeling.
Medicinal panel PC 18,5" med touch skærm.
10.1” Stainless Steel Panel PC
350 cd/m2
Intel Celeron N2930 1.83 GHz Onboard Processor
8GB Onboard DDR3L SDRAM max. 8GB total
Flat front frame Design
grade 304 stainless steel housing (Grade 316 is Option)
IP66 / IP69K Rated with M12 connector
Support resistive touch, expected capacitive touch, and Glass Touch
on / off button on the side Edge for hygienic cleaning
Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
OPTION HIGH BRIGHTNESS 1000cd/m2
24" FHD TFT LCD display med LED backlight
G3 4th gen. Intel® Core™ i7/i5/i3, Celeron® & Pentium® mobile proc.
Build-to-order - bestykkes efter ønske
EN60601-1 og CE godkendt
IP65 tæt front

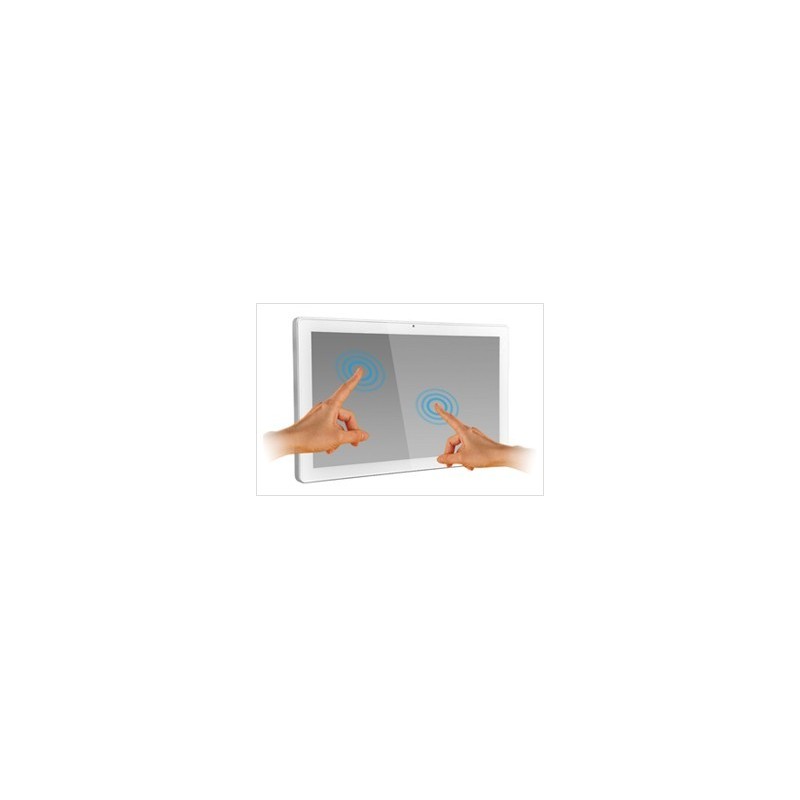

10-punkts multi-touch
Antimicrobakteriel kabinet

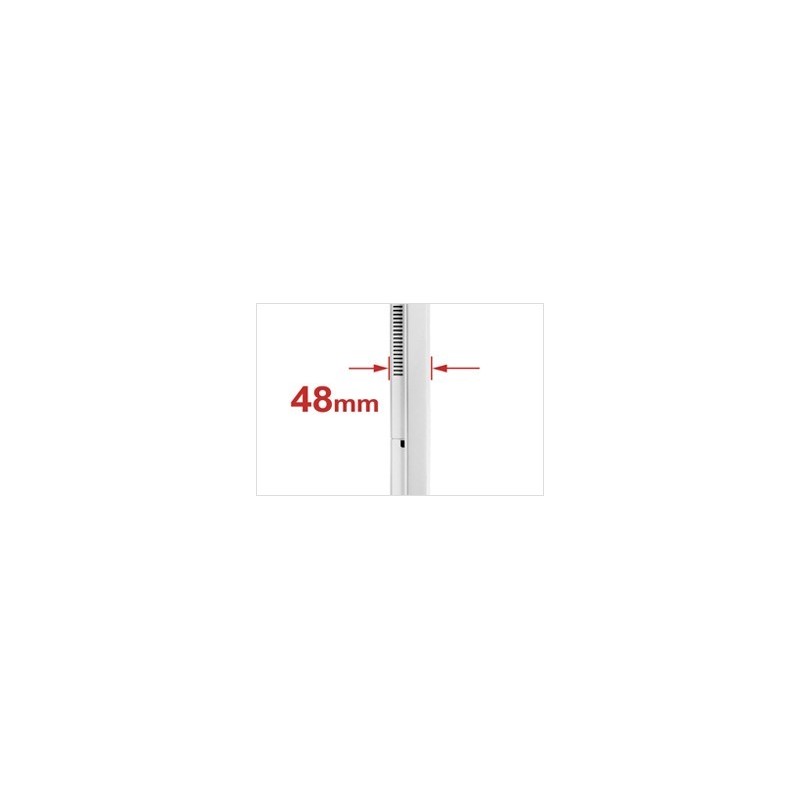

Super tynd og letvægt design

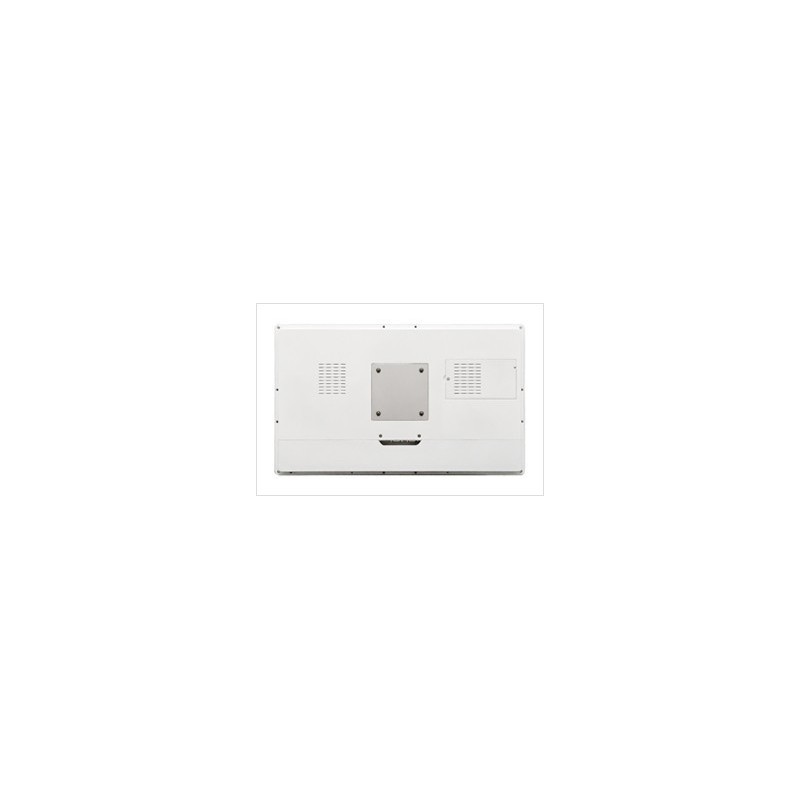

vægbeslag, VESA beslag og fod
Chipset integrated in the processor (SOC)
Full HD
1920 x 1080 resolution
Pixel: 274,5x274,5
Contrast: 3000
Nits: 250
Front IP65 < br> 2 x 260pin SODIMM socket
up to 32GB per slot (DDR4 SDRAM 2400) Pattern 2 | 1 x 2230 1 x
mPCIe with SATA or mSATA PCIE x1 | 1 x 2.5 "Drive Bay (storage) to 4 x USB 3.0
1 x SATA III
1 x HDMI Kabel 1 x DisplayPort (DP)
2 x RJ45
Audio chipset: Realtek ALC892
10 / 100/1000 Base-Tx GbE Compliant
Supply Voltage: DC + 19-24V
Operating temperature: 0-40 degrees
Weight: 6.9 kg (without battery and adapter)
Dimensions: 538.6 x 342.6 x 45.2 mm | OS support: Win 10 64 bit / Linux
