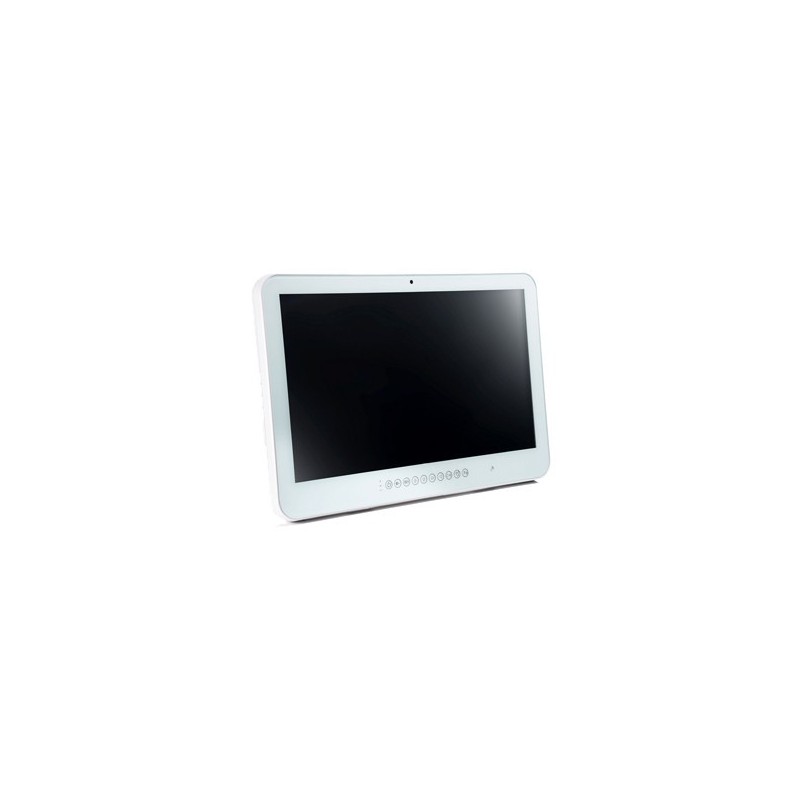

24 "pcap multi-touch fanless panel PC, 7th Generation Intel® Core Kaby Lake i5-7300U Processor

Chipset integrated in the processor (SOC)
Full HD
1920 x 1080 resolution
Pixel: 274,5x274,5
Contrast: 3000
Nits: 250
Front IP65 < br> 2 x 260pin SODIMM socket
up to 32GB per slot (DDR4 SDRAM 2400) Pattern 2 | 1 x 2230 1 x
mPCIe with SATA or mSATA PCIE x1 | 1 x 2.5 "Drive Bay (storage) to 4 x USB 3.0
1 x SATA III
1 x HDMI Kabel 1 x DisplayPort (DP)
2 x RJ45
Audio chipset: Realtek ALC892
10 / 100/1000 Base-Tx GbE Compliant
Supply Voltage: DC + 19-24V
Operating temperature: 0-40 degrees
Weight: 6.9 kg (without battery and adapter)
Dimensions: 538.6 x 342.6 x 45.2 mm | OS support: Win 10 64 bit / Linux

IPP24MEDICA
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

This Medico approved panel PC can support two hot swappable batteries for real mobility. The system has advantage of Intel® Kaby Lake platform to provide a balance of performance and features. Specially designed for the transport means is IPP24MEDICA able to help with daily tasks in health institutions for use by professional health workers. With built-in hot swappable batteries and four slots charging tray, you can be sure of a stable panel PC.

Can be bought:
Optional Barcode Scanner
Optional Built-in privacy screen
Optional 5.0M auto-focus camera with cover
Opitonal 2 x 6900mAh Hot swappable batteries
Optional 4 Slots Charging Bay

Chipset
integrated in Processor (SOC)
Batteri
Optional Smart Battery Pack 14.4V 6900mAh, 99.4Wh
Certifications
CE : IEC/EN60601-1-2 FCC : Part 15 Class B UL60601-1: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012,C1:2009/(R)2012 and A2:2010/(R)2012 CB: IEC 60601-1/A1:2012 & EN 60601-1/A1:2013 (Ed 3.1) EN 60601-1:2006+A11:2011+A1:2013+A12:2014
Chok/Vibration
With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis, With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
Controller
touch controller: EETI EXC84H5680
Dimensioner
539.6 x 342.6 x 45.2 mm
Driftstemperatur
0°C ~ 40°C
Ethernet
Chipset: 1 x Intel® I211AT, 1 x Intel® I219LM
Forsyning
DC in +19V~24V
Hukommelse
2 x 260pin SODIMM socket up to 32GB Per Slot DDR4 2400 SDRAM
I/O
4 x USB 3.0, 1 x SATA III, 1 x HDMI, 1 x Display port, 1 x RJ45
Kamera
5.0M CMOS with auto-focus
Kontrast
250 cd/m², 3000
LCD
Full HD
Luftfugtighed
0% ~ 90% Relative Humidity, Non-condensing
Lyd
Chipset: Realtek ALC892
Lyskilde
LED backlight
Læser
Vinkel 89(U), 89(D), 89(L), 89(R)
Montering
Optional Mounting Kit (VESA 75 x 75, 100 x 100)
Netværk
10/100/1000 Base-Tx GbE compatible
Pixels
274.5×274.5
Skærm
Monitoring System Temperature & Voltage
Storage
1 x 2.5" Drive Bay
Touch
Projective Capacitive
Udvidelser
1 x M.2 2230 1 x mPCIe with SATA or PCIE x1 mSATA
Weight
6.9kg (Uden batteri og adapter)
Watchdog
H/W Reset, 1sec. ~ 65535sec. and 1sec./step
WiFi/WLAN
Optional WiFi 1T1R 802.11b/g/n/ac/ BT4.0
