21.5"/22" panel PC i5 1000nits, 1500nits, Full IP 65/66/67K, PCAP touch, SUS 316/ ASIS 316 Stainless steel all sides
21.5"/22" panel PC i5 1000nits, 1500nits, Full IP 65/66/67K, PCAP touch, SUS 316/ ASIS 316 Stainless steel all sides
Previous
Next
21.5"/22" panel PC i5 1000nits, 1500nits, Full IP 65/66/67K, PCAP touch, SUS 316/ ASIS 316 Stainless steel all sides
21.5"/22" panel PC i5 1000nits, 1500nits, Full IP 65/66/67K, PCAP touch, SUS 316/ ASIS 316 Stainless steel all sides

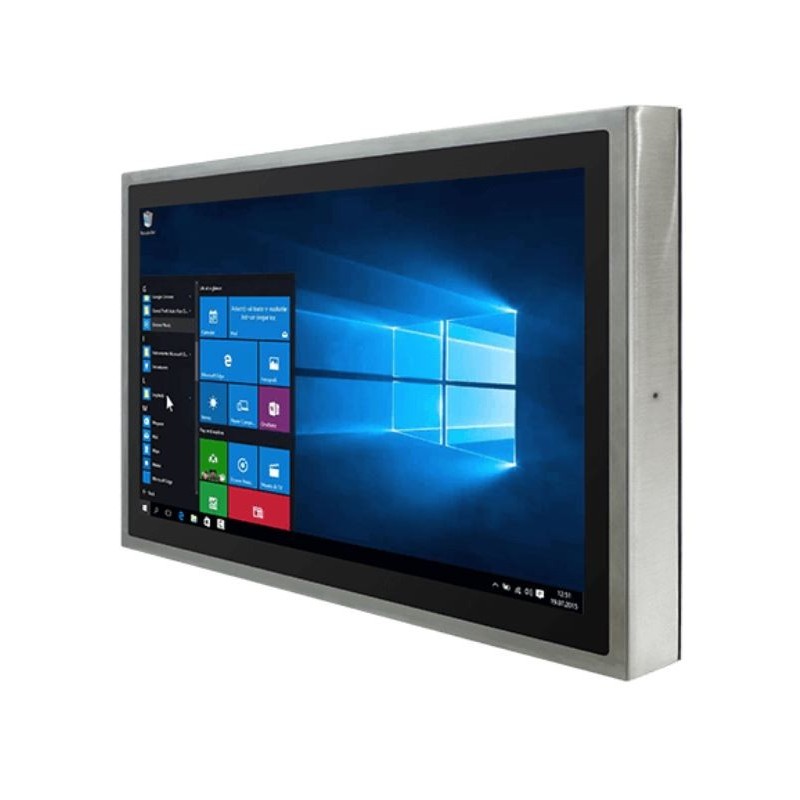

21.5" CPU I5, PCAP Panel PC FULL IP69K, SUS316/ASIS316 Stainless Steel 250Nits or 1500 nits version

21.5" TFT 1920x1080
standard 250Nits (on special request 100 or 1500 nits)
PCAB Multi Touch Screen, Support touch with glove/ Rain mode
Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) Gen 11.
1 x SO-DIMM DDR4 3200MHz, MAX.32GB
M12 waterproff connectors
2 x Rj45 Intel Ethernet
1 x M.2 2280 NVMe SSD
1 x RS232
1x SATAIII
TPM 2.0
IP67K
VESA: 200x100 M4
Addons: "Optical Bonding", YOKE mount

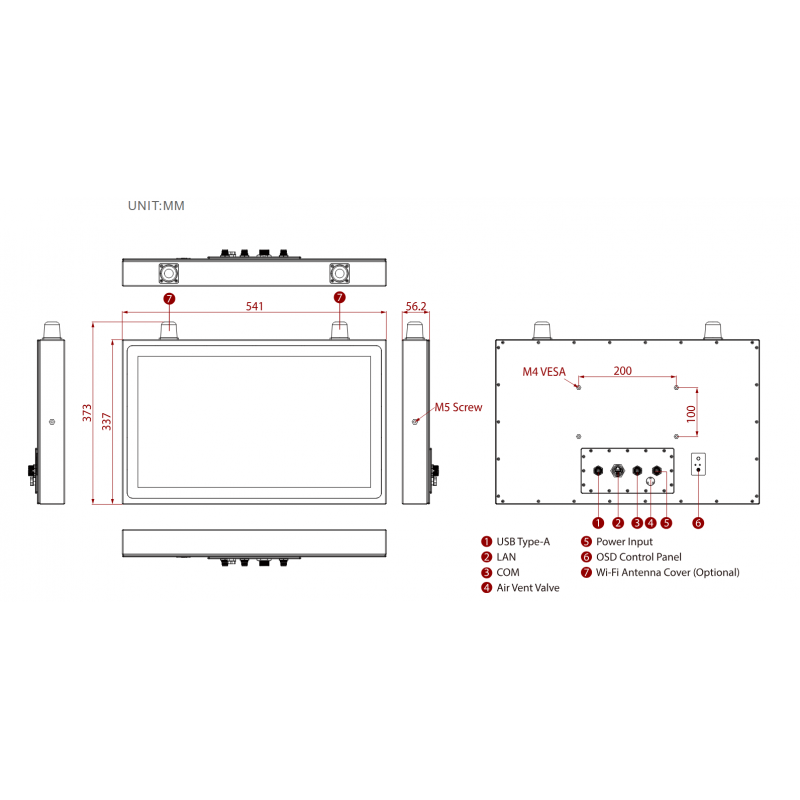

541x337x56.2mm
10Kg
Stainless Housing SUS 316/ AISI 316
10% to 90% RH, Non­Condensing
Working Temperature 0°C to 45°C
12Vdc (M12 Type)
CE, FCC


Call +45 56 66 20 20 for price
Quantity
On the way in
ADD TO CART
Product number IPP21.5IX-IP69K
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Memory Type DDR4
Max. Memory Capacity 32
Power Input DC 12V
USB 1 x USB 2.0
Operating Temp. 0°C to 45°C
Betjening OSD Control Panel
bluetooth Optional
Ethernet 1 x RJ45 M12
IP-Tæthed Full IP69K
Luftfugtighed 10% to 90% RH, Non­Condensing
M.2 1 x M.2 M-Key 2280 NVMe SSD
Maks. opløsning 1920x1080 @ 60Hz
Mål og vægt 10Kg
OS SUPPORT Windows 11 IoT Enterprise (64 bit) Windows 11 Pro 64 bit Windows 10 IoT Enterprise (64 bit) Linux Ubuntu 22.04
SATA 1 x SATA III up to 2TB OPTIONAL
Skærm 21.5" Full HD TFT LCD 250 nits 1920 x 1080
Touch P-cap multi-touch (USB)
TPM 2.0
WiFi/WLAN Optional
Dimensioner 541 x 337 x 56.2 mm
Antal LAN Porte 1
Antal USB 2
Antal Serial 1

The Panel PC fully complies with IP69K water and dust resistance to withstand splashing conditions during stringent cleanup processes and strict hygiene demands in the Food, Beverage, and Pharmaceutical industries.
The wide range of stainless (HMI) and Panel PCs are widely used for automation processes.
Projected Capacitive Multi-Touch (P-CAP)
The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.

We have other sizes and solutions please contact us for further information.

Other products in same category:

Industry Panel PC 19" I3/i5 CPU IP65 / 66 / 69K Close in Rusfrit and waterproof Cabinet Vitam Aplex IP66 CAN bus -Danbit A / S
19 "SXGA IP66 / IP69K Stainless Steel Panel PC I3-6100U CPU 32G MLC SSD, Projected Touch

19 "TFT-LCD 1280x1024
Projected Capacitive Touch.
Intel 6th Core I3-6100U 2.3GHz (Option I5 3.0 GHz CPU)
Max. 16GB RAM DDR4
Flat Front Bezel
Grade 304 Stainless steel cabinet (Grade 316 for option).
IP66 / IP69K RATED with M12 connector.
Option: RFID
Press the power button on the side edge of Hygienic Cleaning.
OS Supoort: Windows Embedded 7 / 8.1, Windows 10 Iot Ent Ltsb
9 ~ 36v DC Power Input

Call +45 56 66 20 20 for price
Item Number: IPP19I3
On the way in
ADD TO CART
Quick view
304L stainless steel wall mount for food processing, VESA MOUNT 75/100, TFT mount, panel pc mount
Wall mount VESA bracket VESA 75/100 stainless steel 304 monitor or Panel PC wall bracket

Stainless Steel 304

Industrial Design

VESA 75/100

2-axis movement

1,900.00 kr
Item Number: MON-VESA-STEEL
Physically in stock
ADD TO CART
Quick view
Fanless Touch Panel PC - 15 Apollo Lake, IP65/IPX9K Chassis
15" Apollo Lake SoC Mobile Processor Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65 & IP-X9K

Processor Intel® Celeron® Processor N3350
Intel® Apollo Lake SoC with integrated chipset
Projective capacitive touch screen
Full Flat Design
Waterproof ON/OFF Button
2 x USB
1 x COM (DB9)
1 x LAN Metallurgy Waterproof Connector
Full System IP65, IPX9K
Addons must be ordered separately: NFC / WiFi / auto dimming / high brightness Solution​

Call +45 56 66 20 20 for price
Item Number: IPP15-IP65
On the way in
ADD TO CART
Quick view
Panel PC med 19\" touch skærmforPanel PC
Fanless Panel PC IX Series Gen.7 IP65 All sides Steel Cabinet, USB, RS232, Gbit, VESA and Yoke Mounting

Fanless and rugged design
7th Gen Intel® Core™ i3 7100U / i5 7300U / i7 7600U CPU
Resolution 1280 x 1024 dpi
5 Wires Resistive touch solution
Full 304 IP65 6 sides stainless enclosure
All IP65 M12 waterproof connectors
1 x USB, 2 x RS232, 1 x GLAN
VESA mount Yoke mount
Full 316 IP65 6 sides stainless enclosure optional
Optical bonding, high brightness sunlight readable solution
OS SUPPORT:WIN10 pro/ embedded/ IOT/ Linux Fedora 25, Ubuntu 16.04

Call +45 56 66 20 20 for price
Item Number: IPP19-IP65+
On the way in
ADD TO CART
Quick view
Industrial Waterproof Full IP66 Panel PC With Touch CPU I3 / I5 highnits 1000nits Steel 304/316
21.5" Panel PC IP66 360° Fulll IP66 / IP69K steel cabinet with M12 connector connection. I3 or I5 CPU

21.5" PC in stainless steel
1920x1080 250nits, (Special request 1000Nits for sunlight use)
I3 or I5 CPU
RAM max. 64GB
M.2 1 x 2280 (sata default, PCI-e selection in BIOS) for SSD
USB 1x M12 waterproof
COM 1x M12 RS232/422/483 (default RS232) waterproof
Lan 1x M12 waterproof
1x Full size mSATA/mPCI
1x NANO SIM
1x m.2 E-Key 2230 (PCIe+USB) for WIFI/BT module
easy-to-clean front design
Grade 304 stainless steel cabinet
(option 316 Stainless steel cabinet can be ordered on request)
IP66 / IP69K IP
M12 connector
Can be ordered with Resistive Touch, Projected Capacitive Touch and Glass (specified when ordering)
Press the on/off button on the side edge for hygienic reasons
100x100 Vesa mounting
Yoke Mount (is without stand, must be ordered separately)
571 x 362 x 55 mm
0~50°C
DC 9~36V
CE/FCC Class A
OS Support: Windows 10 IoT ENT LTSB, Windows 11

Call +45 56 66 20 20 for price
Item Number: IPP21.5IX-IP66
On the way in
ADD TO CART
Quick view
Ex godkendt panel PC til Offshore,ATEX Zone2 Ex nA ic IIC T4 GcClass I, ABCD T4ANSI/ISA 12.12.01-2013CSA Std. C22.2 No213-1987
Ex approved panel PC for oil and gas industry 15 "Celeron N2930, I3 / I5 / I7 Available in many versions IP66

15" til 21.5"
CPU N2930, i3/i5 Gen.6
1 x Mini PCIe (udvidelse)
M12 Interfave til VGA, USB, RS232/422/485 (vantætte stik)
450 til 1000 cd/m2 lysstyrke
Max opløsning fra 1024x768  til 1920x1080 afhængig af skræemstørrelse
Projected Capacitiv Touch
Forsyningsspænding DC 9~36V
316 Stainless Steel
Vesa mount eller Panel Mount
GODKENDELSER:
CSA C22.2 No.61010
CE / FCC Class A, ATEX Zone2 Ex nA ic IIC T4 GcClass I, Division2, Group ABCD T4ANSI/ISA 12.12.01-2013CSA Std. C22.2 No213-1987

Call +45 56 66 20 20 for price
Item Number: IPP15-IX-EX
On the way in
ADD TO CART
Quick view
Waterproof 24" Panel PC IP66/IP67K touch, P-CAP, Projected Capacative CPU I3/i5 Vesa Youke RS232/422/485, USB 4G, 5G
23.9" Panel PC IP66/IP69K Closed steel cabinet with M12 Connection, I3 or I5 CPU, VESA, Yoke mounting, RS232/422/485,

23.9"  Stainless Steel Panel PC
8th Gen Core i5-8365UE 1.6GHz,  or Core i3-8145UE  2.2 Ghz
1 x 260 SO-DIMM DDR4 2400MHz max. 32GB RAM
TPM 2.0
1 x M12 Ethernet
1 x M12 RS232/422/485 default 232
1 x M12 USB 2.0
1 x 2½" SATA3 SSD  (opt)
1 x M.2 ;M-key (PCIe x4/SATA3 Auto detect), Support 2242 default
RFID mpdul design for fron as OPT. (need to be ordered)
1 x Mini PCIe for 4G/5G. Wifi/BT
1 x Nano sim socket
easy to clean Design
Grade 304 Stainless Steel Enclosure
(Option 316 can be ordered special)
IP66/IP69K IP
M12 Connectors
Standard 250 nits, (High Brightness on request 1000 nits)
Resolution 1920 x 1080
Can be ordered with Resistive Touch, Projected Capacitive Touch, and Glass (Specified when ordered)
Touch on/off Button on the Side Edge for Hygienic Cleaning
Special order can be with 2 x M12 spare for (2x USB2.0 or 1 x USB 3.0 or 1 x LAN or 1 x COM)
Vesamount
YOKE-Mount as opt.
DC 9~36Vdc
OS support: WIN 10 / WIN 11

Call +45 56 66 20 20 for price
Item Number: IPP24IX-IP66
On the way in
ADD TO CART
Quick view

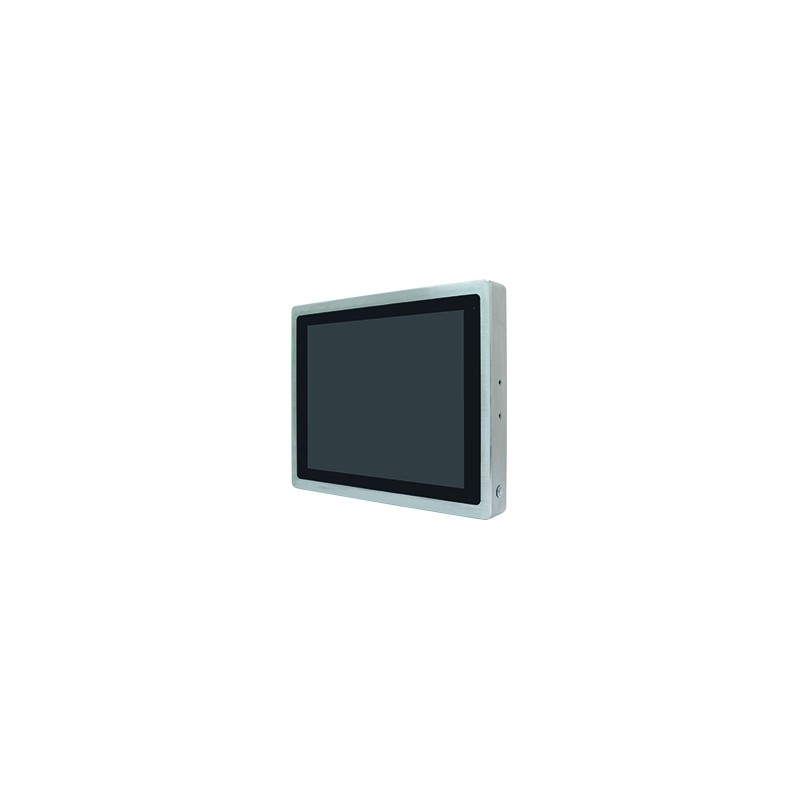

Industrial 17″ Stainless-Steel Panel PC – Core i, M.2 Expansion, IP66/IP69K
