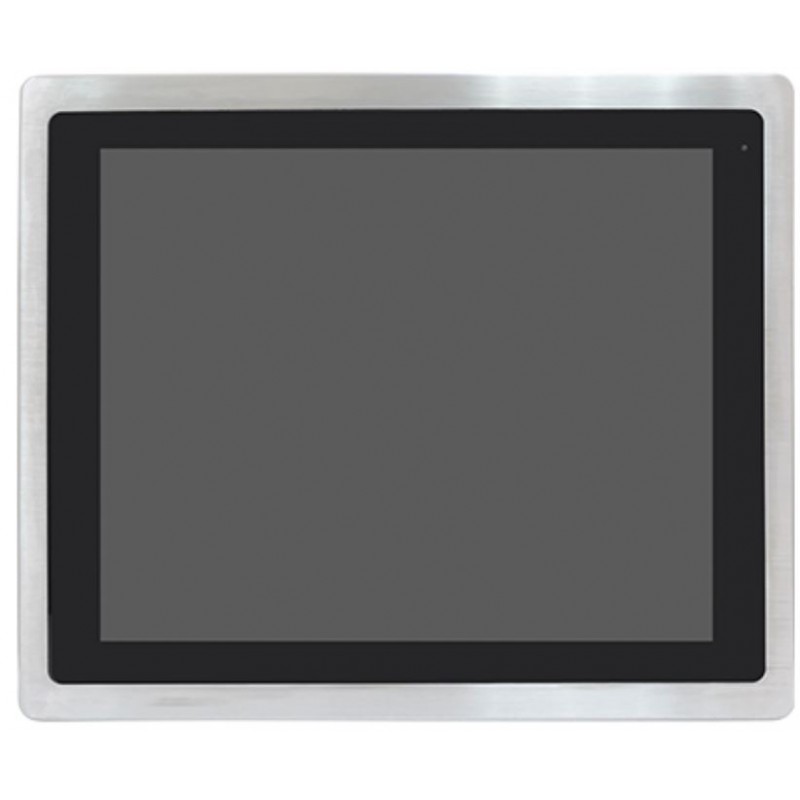

19 "SXGA IP66 / IP69K Stainless Steel Panel PC I3-6100U CPU 32G MLC SSD, Projected Touch

19 "TFT-LCD 1280x1024
Projected Capacitive Touch.
Intel 6th Core I3-6100U 2.3GHz (Option I5 3.0 GHz CPU)
Max. 16GB RAM DDR4
Flat Front Bezel
Grade 304 Stainless steel cabinet (Grade 316 for option).

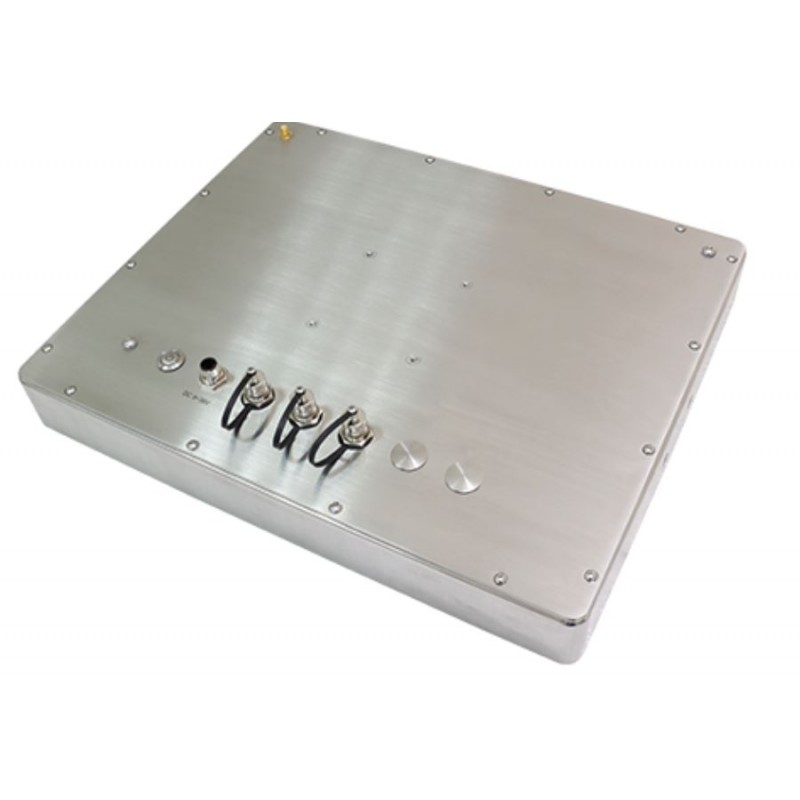

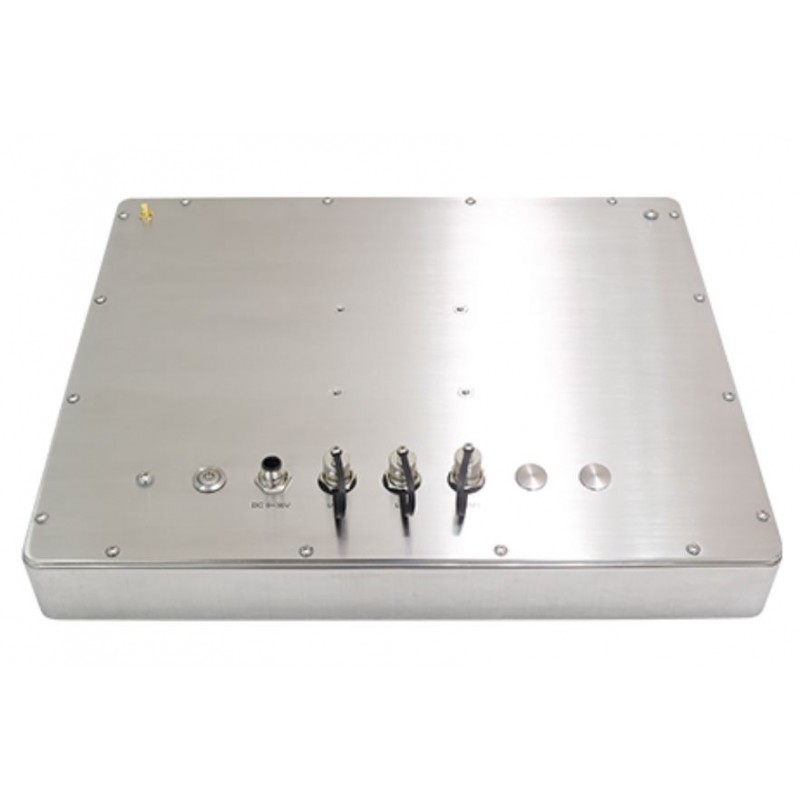

IP66 / IP69K RATED with M12 connector.
Option: RFID
Press the power button on the side edge of Hygienic Cleaning.
OS Supoort: Windows Embedded 7 / 8.1, Windows 10 Iot Ent Ltsb
9 ~ 36v DC Power Input

IPP19I3
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Panel PC Built in the rust-free steel cable. Suitable for food and pharmaceutical industry.
Hygiene friendly construction that is easy to cleanse.
We offer other models and sizes.
OPTION!
2 x M12 til en af følgende:
2 x USB 2.0
1 x USB 3.0
1 x LAN (POE option)
1 x COM
1 x CAN

Approval
Certification CE / FCC CLASS A
Dimensioner

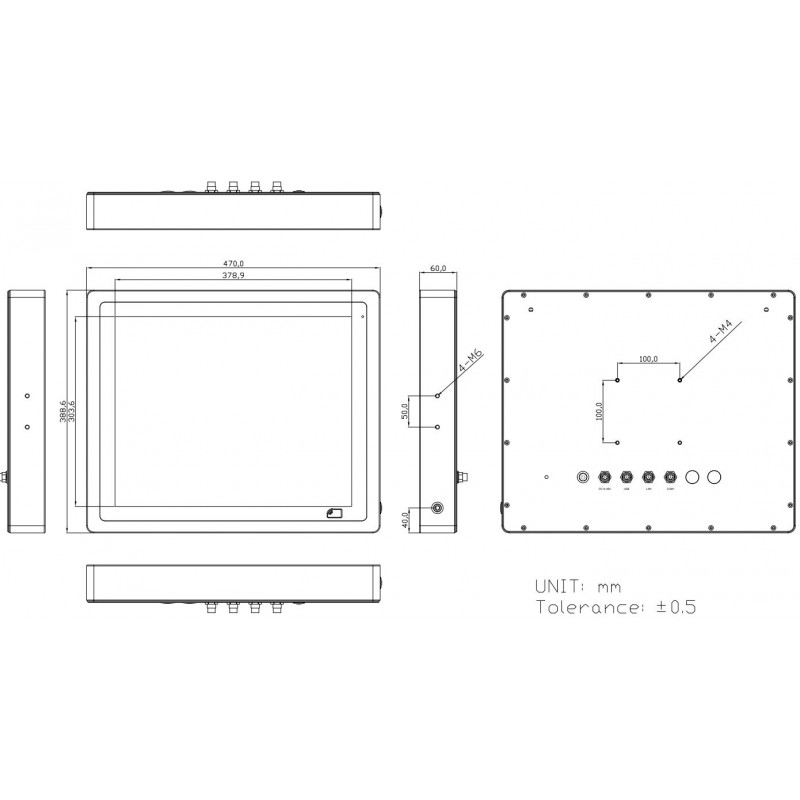

470 x 388.6 x 60 mm
Driftstemperatur
0~50°C
Ethernet
10/100/1000MBit LAN 1 x M12 8-pin for LAN with waterproof cover and chain
Hukommelse
1 x SO-DIMM DDR4 max. 16GB RAM (no RAM installed)
IP-Tæthed
IP rating IP66 / IP69K
Luftfugtighed
10 to 90% @ 40°C, non- condensing
Compositions
Construction 304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)
mPCIe
Expansion slot 1 x MiniPCIe slot for WIFI/BT(optional), 4G/LTE(optional)
Msata
1 x Msata onboard
Opløsning
Max. resolution 1280 x 1024
Porte
Serial 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
Storage
HDD/SSD 1 x 2.5" SATA3 HDD
Strømforbrug
30W
Strømforsyning
DC 9~36V Power 1 x M12 3-pin for DC power with waterproof cover and chain
Temperatur
-30~70°C
Touch
Standard Projected Capacitiv Touch Light transmission 80%, (Oprion; resistiv, protection glass)
USB
USB 1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain
Weight
9.5Kg
