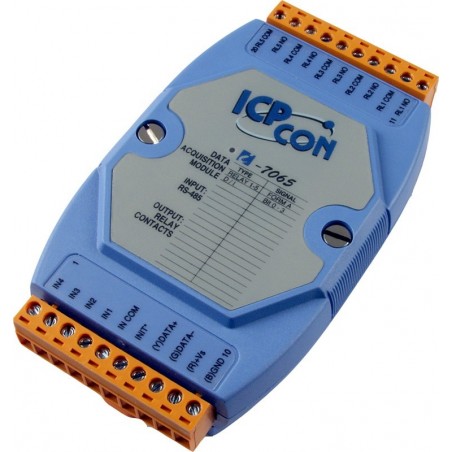

RS485 I/O module with 4 digital inputs and 5 relay output
4 x digital input (Wet) active with Volt in
digital input as 16 bit counter - 100Hz
5 x relay output - COM, NO
Supply: 10 - 30vdc
DIN

4 x relay outputs 2 end and 2 switch
4 x insulated inputs
supply voltage: 10 - 30vdc
1 x RS485 communication port

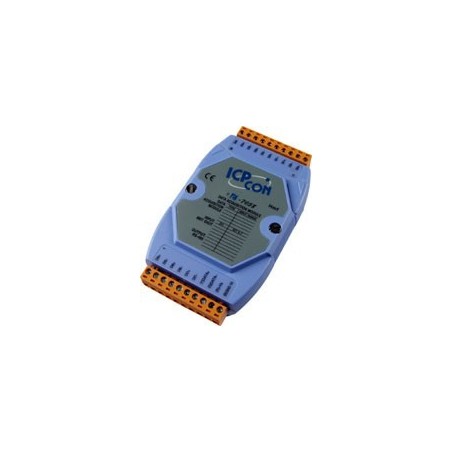

RS485 Module - Slave, with digital input
8 x digital inputs for DC and AC
Voltage monitoring
input voltage: 80 - 250VAC / DC
Supply: 10 -30vdc

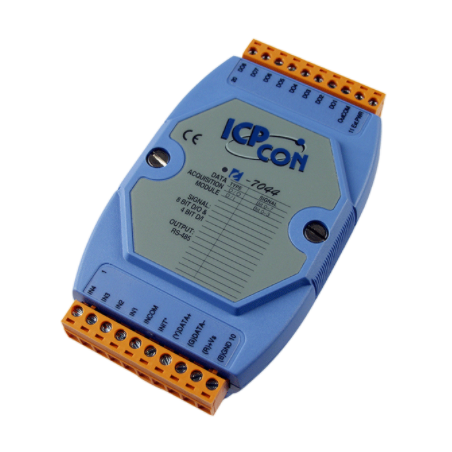

8 digital outputs and 4 digital inputs
Open Collector Output
Photocouple Isolation
Digital input channels can be used as 16-bit counters
Configurable Power-on Value settings
Configurable settings for sure value
3750 Vrms insulation voltage
Dual Watchdog
Wide operating temperature range: -25 to + 75 ° C

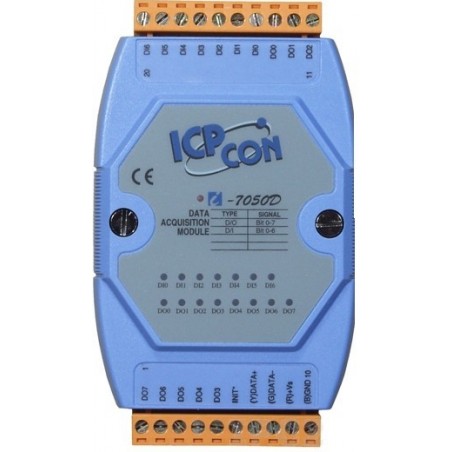

RS485 module with digital I / O
7 digital input
8 digital output, 30volt / 30mA
RS485 interface
Baudrate 1200 ~ 115200 bps
Dual Watchdog
10 - 30 VDC, 1 W via terminal block
-25- + 75 °
DIN rail mounting

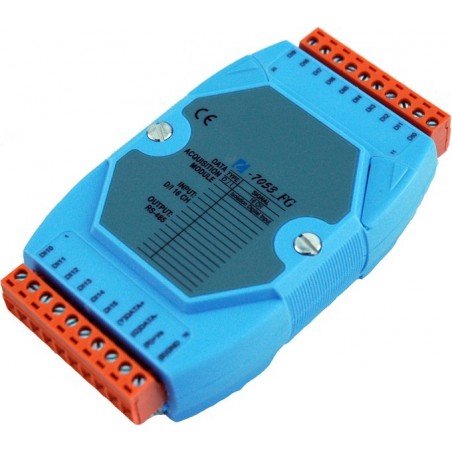

RS485 Module with 16 digital inputs
inputs are Dry Contact - High at contact to GND
RS485 The module is slave
supply: 10 - 30vdc
DIN bracket

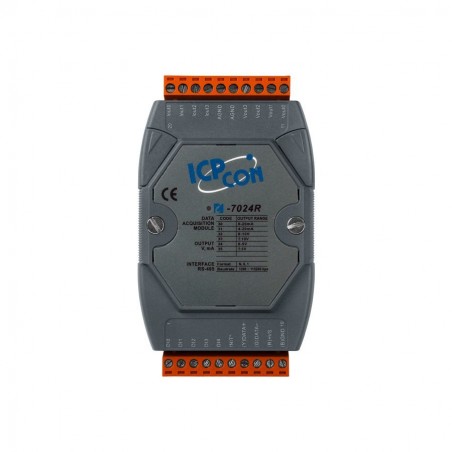

RS485 module with volt / mA output. Digital input
4 x analog output - 0 - +/- 10V and 0-20mA
Resolution: 14bit
5 x Digital input - Active high on contact for frame
RS485 Bus - Module is Slave
Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Baud Rate: 1200 ~ 115200 bps
Supply: 10 ~ 30 VDC

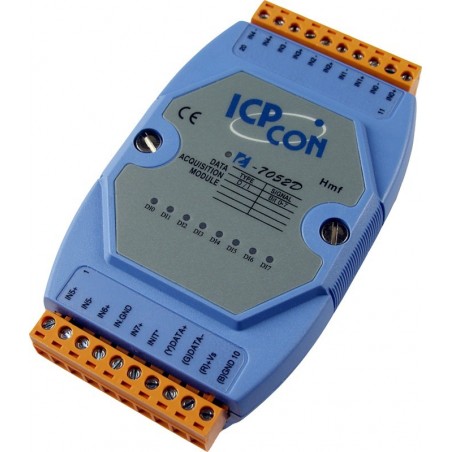

8 isolated digital inputs with 16 bit counter
RS485 interface
-25 ° C ~ + 75 ° C
Display
DIN rail
Screw terminal

Distributed I/O via Ethernet/RS485
Can be controlled via RS485 or Ethernet
10 x digital in 10 x relay out (mechanical relay)
9VDC ~ 24VDC supply voltage (power adapter included)
16bit / 100MHz CPU
256 KB ROM, 1 MB SDRAM

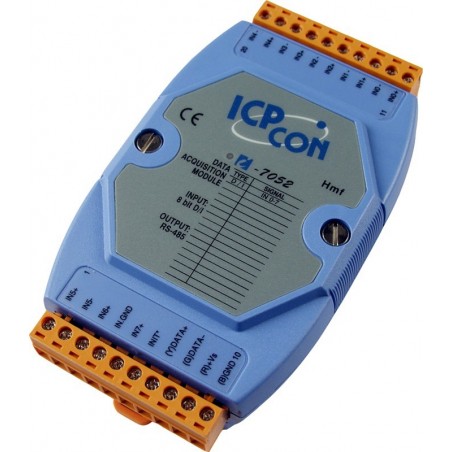

RS485 Slave module with 8 digital inputs
6 pcs. Balanced
2 pcs. With joint GND.
Sink and Source Inputs
16 Bit Counter
RS485 Bus
Supply voltage: 10 - 30VDC
Dim: 123 x 72 x 35 mm

8 digital contact inputs
8 digital outputs "Open source" from joint terminal
RS485 interface
DIN bracket
screw terminal

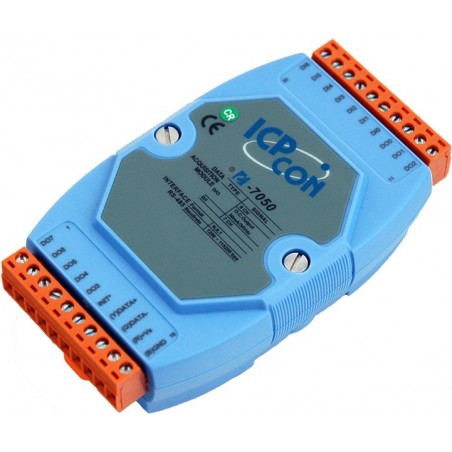

RS485 I / O Module
7 digital inputs - Contact or volt in
8 digital outputs with connect contact function
Supply: 10 - 30VDC

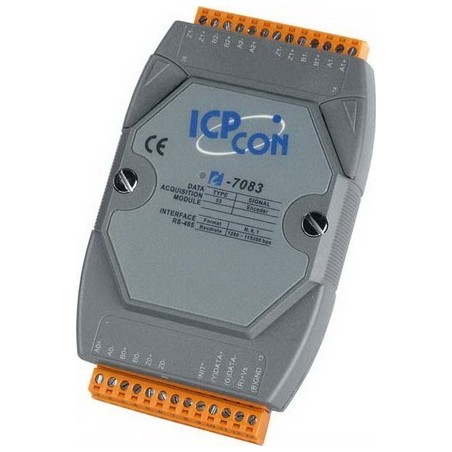

RS485 module with 3-axpet Encoder input
1MHz Frequency input
input voltage: Up to 5VDC
Other voltages are with external resistance
32 bit counter
Quadrant, Pulse / Dir, CW and CCW
RS485 port - 1200 - 115.2K Baud
Supply voltage: 10 - 30VDC
Dim: 123 x 72 x 35 mm
