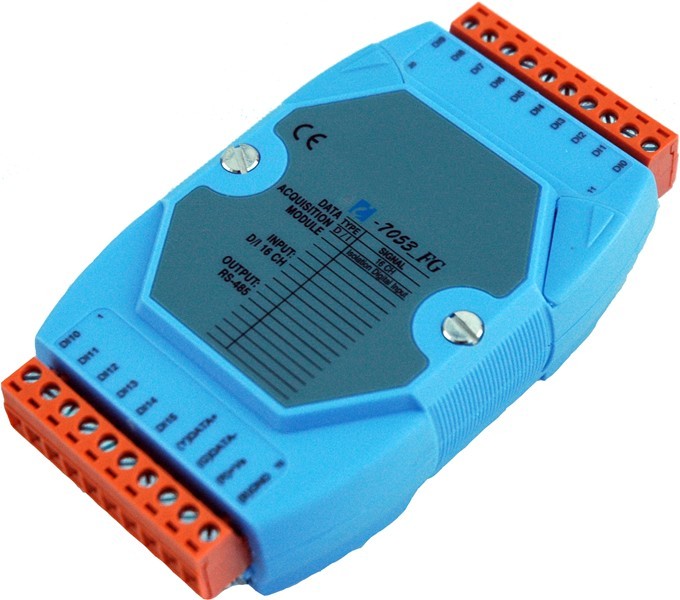

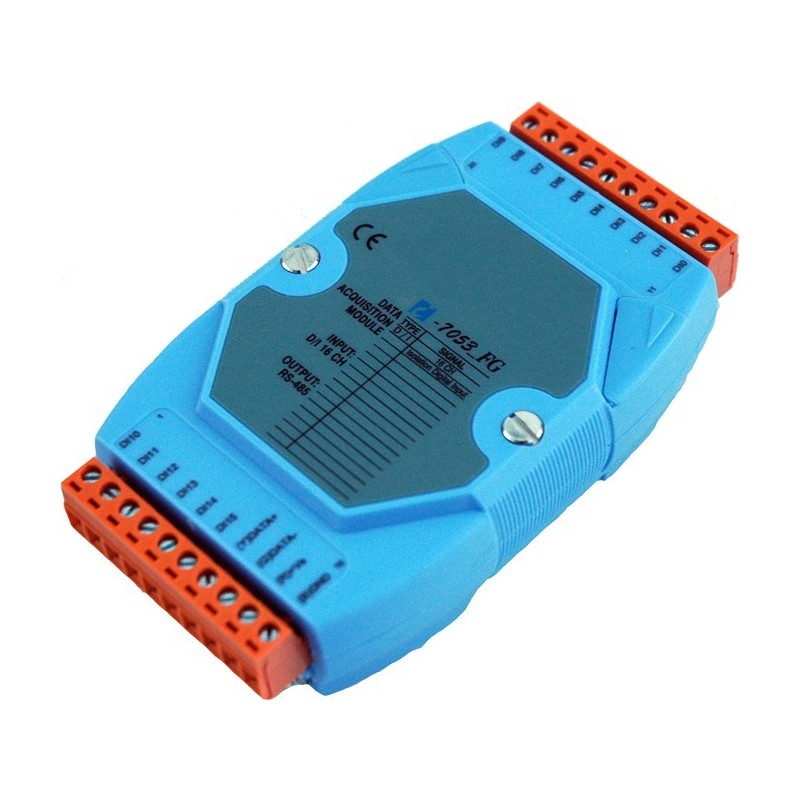

16 x digital input (DRY Contact) module. Active at contact to GND. RS485 bus. 10 - 30vdc.
RS485 Module with 16 digital inputs
inputs are Dry Contact - High at contact to GND
RS485 The module is slave
supply: 10 - 30vdc
DIN bracket
1,069.00 kr
Ekskl. moms
Quantity
On the way in
Product number M485-DI16-I
Ask a question
close
Specifications
Indgang | 16 stk. Kontakt tilslutning: Logisk 0: Sluttet Logisk 1: Afbrudt 16 stk. Styresignal: Logisk 0: 0 – 2 V Logisk 1: 4 – 30 V |
---|---|
Isolation | 3750 VRMS |
M485-DI16-I offers 16 completely independent digital input channels with common ground. The various inputs have channel for PSU isolation. You select or source input via wiring connections. The M485 di16-I has a long efficient distance to DRY contact input of up to 500 meters. The M485 di16-I supports input of source type. All 16 channels can also be used as 16-bit counters, each of which is not isolated.
