5 x relay outputs (COM, NO) 30VDC 5A, 250VAC 5A, 4 x digital inputs, RS485 bus, 10 - 30VDC

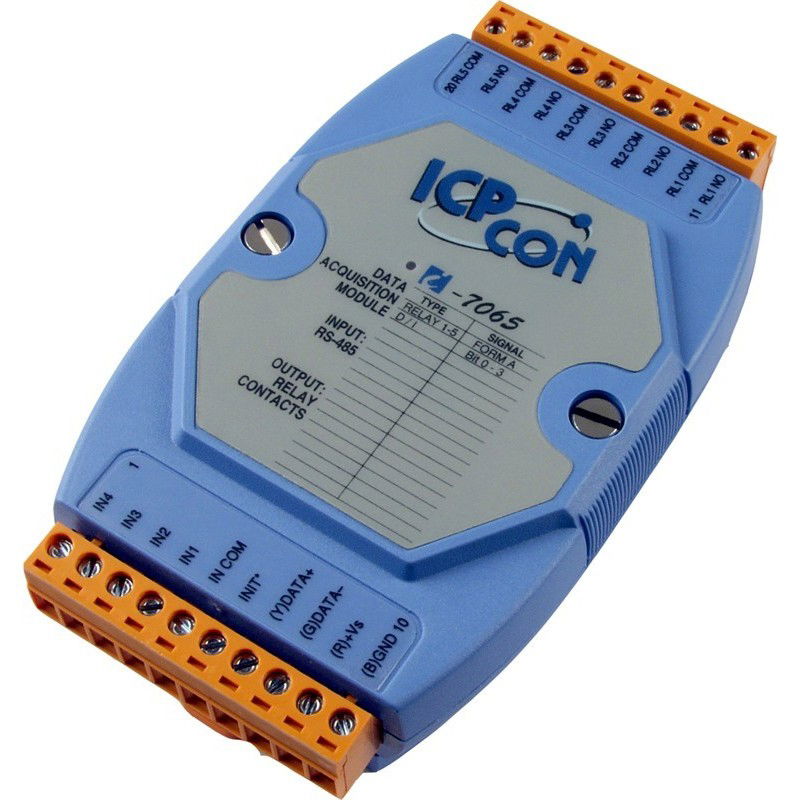

RS485 I/O module with 4 digital inputs and 5 relay output
4 x digital input (Wet) active with Volt in
digital input as 16 bit counter - 100Hz
5 x relay output - COM, NO
Supply: 10 - 30vdc
DIN

Reference: M485-REL5-I

1,209.00 DKK

Tax excluded

Quantity

On the way in

Download PDF
Downloads

Ask a question

Description
Product Details

M485-REL5-I serien giver 4 digitale indgangskanaler og 5 form A-relæudgangskanaler. Alle digitale indgangskanaler kan bruges som 16-bit tællere. Derudover kan de digitale indgangskanaler vælges enten som sink- eller source via ledningsforbindelser. Der er også muligheder for at konfigurere opstarts- og sikre værdier. 4 kV ESD-beskyttelse og 3750 VDC intra-modulisolering leveres også for at forbedre støjbeskyttelsesfunktionerne i industrielle miljøer.

Forsyning: 10 - 30 VDC, 0,8 W via klemrække
Indgang: 4 optoisolerede digitale indgange, Isolationsspænding: 3750 VDC Logisk 0: 0 - 1 V Logisk 1: 3,5 – 30 V
Kontaktdata: AC: 250 V / 5 A DC: 30 V / 5 A Lukketid: 5 ms Åbnetid: 2 ms
Udgange: 5 type A (slutte) relæer
