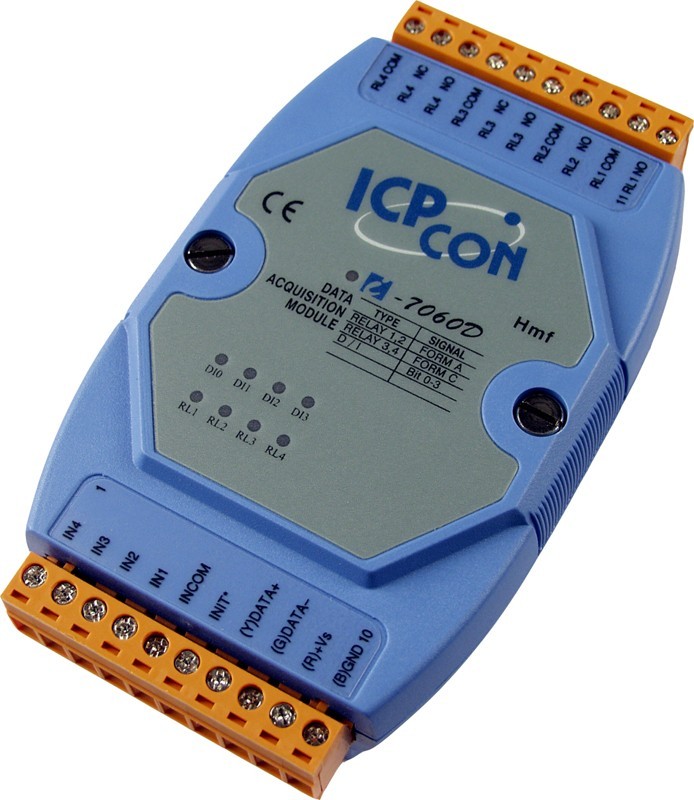

4 x relay outputs, (2 NO, NC and 2 NO) 4 x digital inputs, and isolated with the display, RS485 bus, 10 - 30VDC

RS485 relay box with the display
4 x relay outputs 2 and connect switch 2
4 x isolated inputs
Supply 10 to 30
RS485 Communication port
16 bit counter
ON Voltage Level: 4 V 30 ~ V
OFF Voltage Level: 0 ~ 1 V V
Insulation Voltage: 3750 Vrms
Input Resistance: 3 kΩ, 0.25 W
Dual Watchdog

2,267.20 SEK
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number M485-REL4D-I
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Andet Contact Rating 0.6 A @ 125 VAC 2 A @ 30 VDC
Baudrate 1200 ~ 115200 bps
Driftstemperatur -25 ~ +75°C
Forsyning 10 ~ 30 VDC 1.4 W via klemrække
Indgang 4 optoisolerede digitale indgange, Isolationsspænding: 3750
Indgangsimpedans 3 kΩ
Interface RS-485 Modbus RTU, DCON
LED Yes, 1 LED as Power/Communication Indicator I/O LED Indicators --- Yes, 8 LEDs as Digital Input/Relay Output Indicators
Montering DIN-Rail or Wall Mounting
Protokol DCON
Udgange 4 relæer 2 type A (slutte), 2 type C (skifte)
Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
