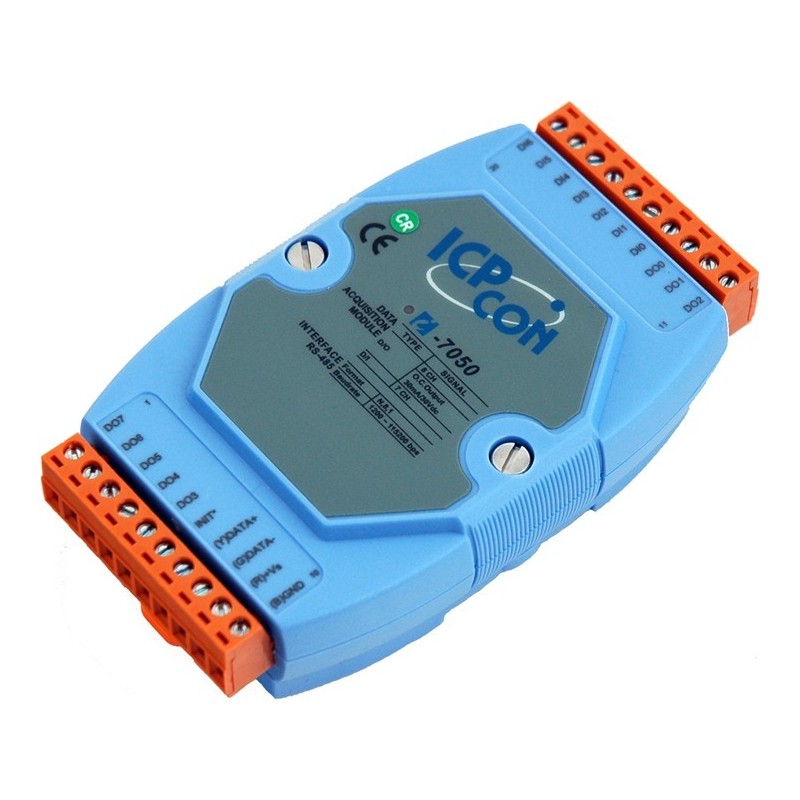

RS485 I / O Module
7 digital inputs - Contact or volt in
8 digital outputs with connect contact function
Supply: 10 - 30VDC
M485-DIO7-in the series of modules offers channels for digital inputs and 8 channels for digital output, each of which is not isolated. M485-DIO7-I supports Sink-type output using an NPN Open Collector and Source type input. All entrance channels can be used as 16-bit counters. There are also opportunities to activate both start-up and safe values. The M485 dio7-I has 15 LED indicators that can be used to monitor channel status.

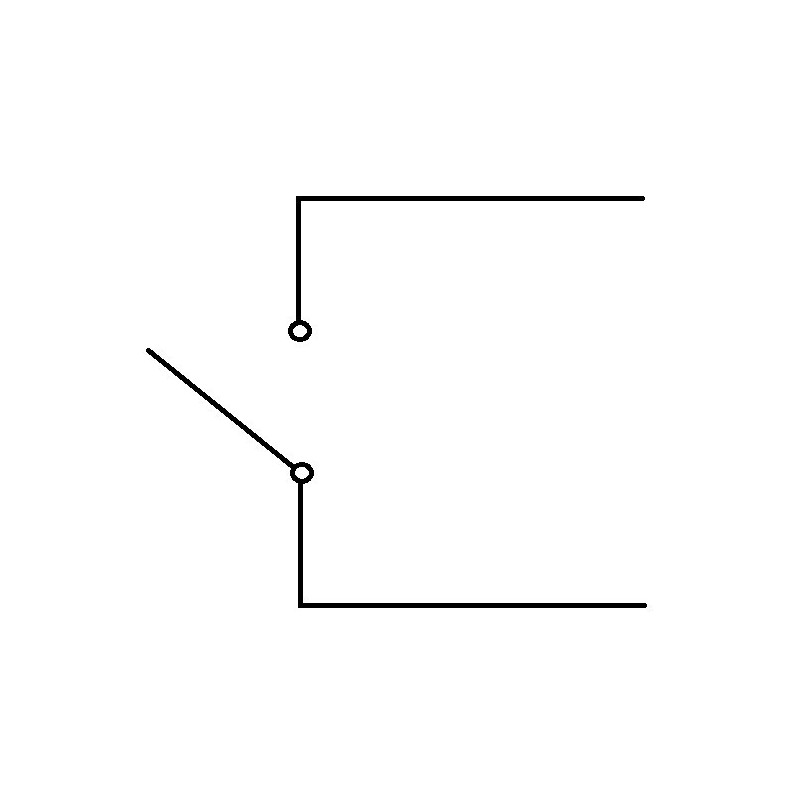

The 7 inputs can be used with a connect contact or with voltage in.
8 isolated digital inputs with 16 bit counter
RS485 interface
-25 ° C ~ + 75 ° C
Display
DIN rail
Screw terminal
Distributed I/O via Ethernet/RS485
Can be controlled via RS485 or Ethernet
10 x digital in 10 x relay out (mechanical relay)
9VDC ~ 24VDC supply voltage (power adapter included)
16bit / 100MHz CPU
256 KB ROM, 1 MB SDRAM
8 digital contact inputs
8 digital outputs "Open source" from joint terminal
RS485 interface
DIN bracket
screw terminal
RS485 module with digital I / O
7 digital input
8 digital output, 30volt / 30mA
RS485 interface
Baudrate 1200 ~ 115200 bps
Dual Watchdog
10 - 30 VDC, 1 W via terminal block
-25- + 75 °
DIN rail mounting
