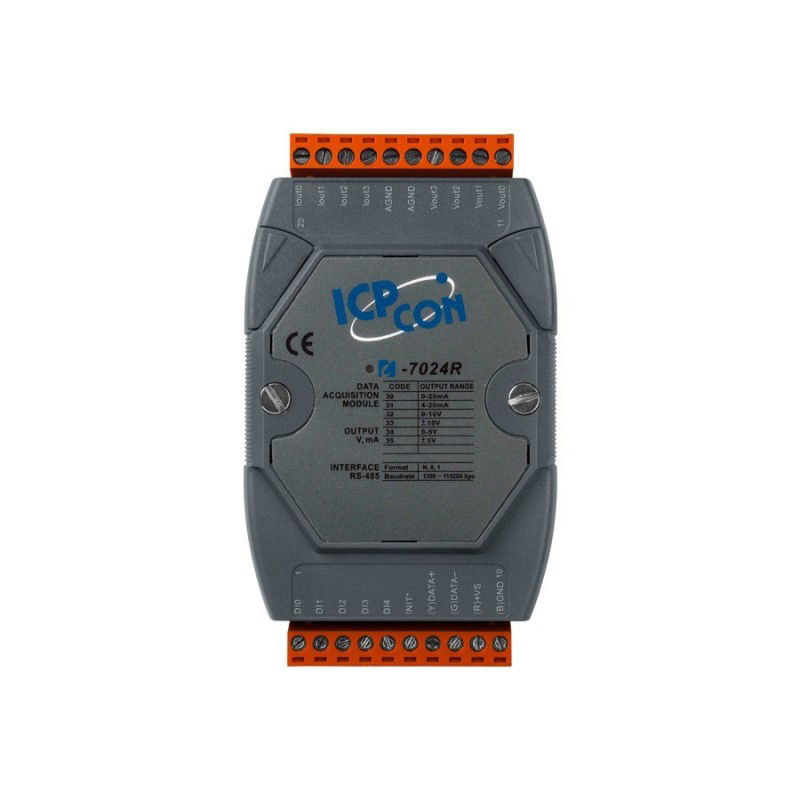

4 x analog output, 0 - +/- 10V and 0 - 20mA, 14bit. 5 x digital input with DRY contact to GND. RS485 bus. 10 - 30vdc.

20 channel analog input module for RS485 Bus
16bit resolution
20 Single Ended inputs (common frame) - Only for Volt
10 differential entrances for volts about power
10 measurements per second (Total )
Jumper Setting in the module
Supply voltage: 10 - 30vdc / 1.3 watts
Dim: 123 x 72 x 35 mm
DIN bracket

HMI control with 4.3 "TFT Touch
IP40
interface: 2 x RS485
USB port for download
RTC - Real Time Clock
Free HmiWorks Development software
Supply voltage: 12 - 48VDC
Temperature: -30 - + 50 ° C
Goal: 140 x 87 x 41 mm
Less-Surface-Exposed Housing Design Design

5 kanals analog input
2 kanals analog output
2 kanals digital input
2 kanals digital output

8 channel analog input module for RS485 Bus
16bit resolution
10 measurements per second (total)
for current measurement - shunt with 125 ohm resistance
Supply voltage: 10 - 30vdc / 1.3 watt
Dim: 123 x 72 x 35 mm
with your bracket
