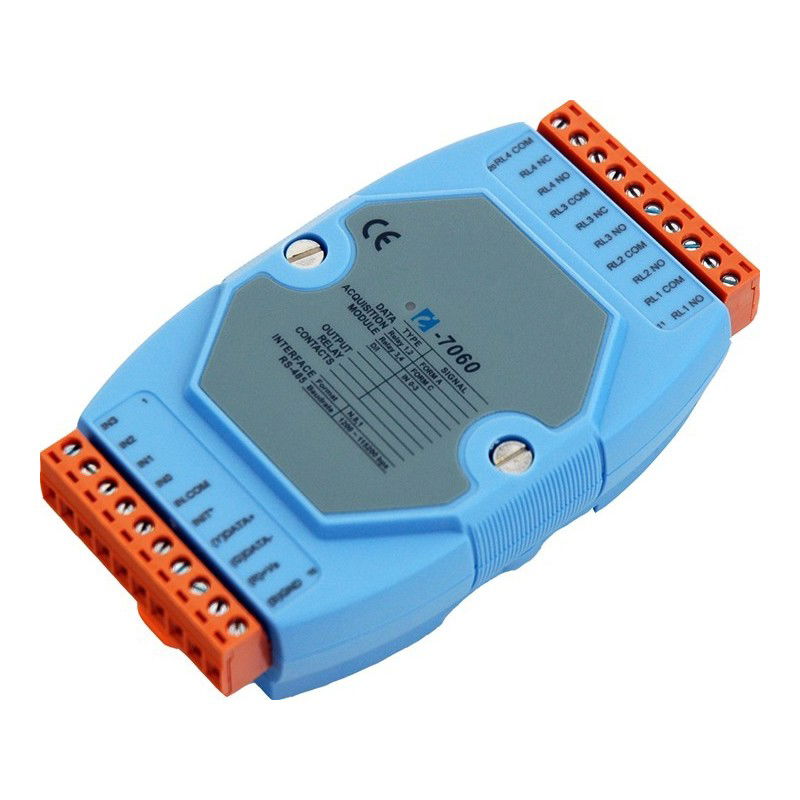

ICP DAS I-7060 is a module with 4 x relay outputs 4 x digital inputs, RS485 bus

4 x relay output (2 x COM, NO, NC), (2 x COM, NO), 4 x digital inputs, RS485 bus, 10 - 30VDC

4 x relay outputs 2 end and 2 switch
4 x insulated inputs
supply voltage: 10 - 30vdc
1 x RS485 communication port

1,300.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number M485-REL4-I
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Forsyning 10 - 30 VDC, 0,8 W via klemrække
Indgang 4 optoisolerede digitale indgange, Isolationsspænding: 3750 VDC Logisk 0: 0 - 1 V Logisk 1: 3,5 – 30 V
Kontaktdata AC: 125 V / 0,6 A / 250 V / 0,3 A DC: 30 V / 2 A / 110 V / 0,6 A Overslagsspænding: 500 VAC Lukketid: 3 ms Åbnetid: 1 ms
Udgange 4 relæer 2 type A (slutte), 2 type C (skifte)

Digital inputs - 4 x optoisulated digital inputs,
Insulation voltage: 3750 VDC
logic 0: 0 - 1 V Logical 1: 3.5 - 30V digital outputs,
4 Relays 2 Type A (End), 2 Type C (Switch),
Mounting Your Shine
Supply 10 - 30 VDC, 0.8W Via Clamp.
Contact Data AC: 125V/0.6 A / 250V/0.3A DC: 30V/2A / 110V/0.6A
closing time: 3 ms
open time: 1 ms
