8 optoisulated digital inputs. 6 is balanced and 2 with a common ground. 16 bit counter. RS485 bus. 10 - 30VDC.

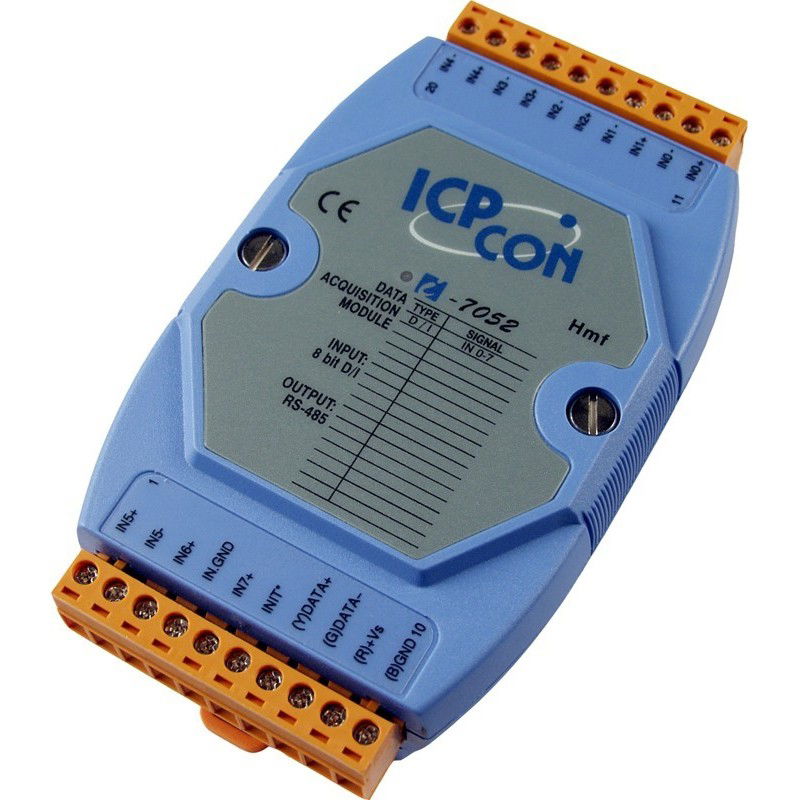

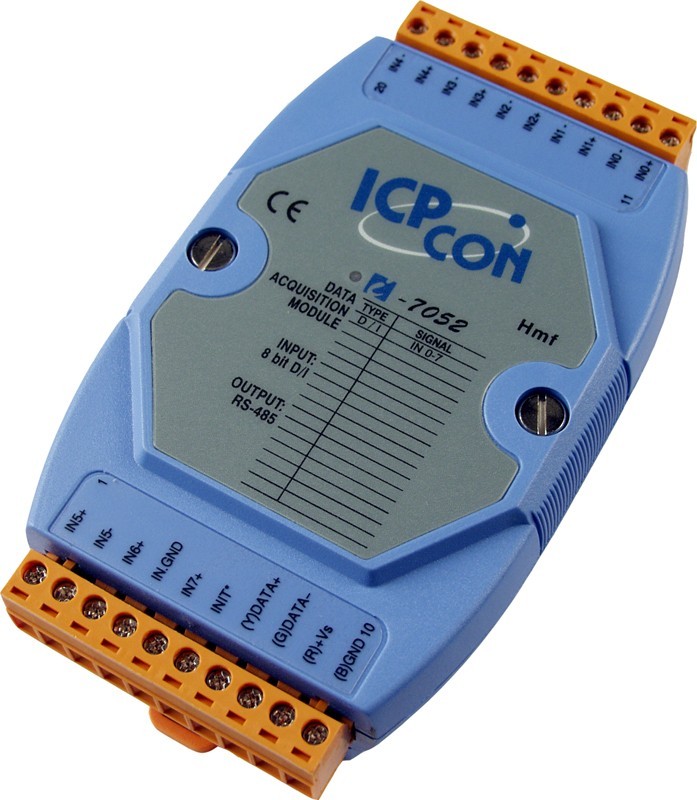

RS485 Slave module with 8 digital inputs
6 pcs. Balanced
2 pcs. With joint GND.
Sink and Source Inputs
16 Bit Counter
RS485 Bus
Supply voltage: 10 - 30VDC
Dim: 123 x 72 x 35 mm
$196.91
Excl. VAT
Quantity
Physically in stock
Product number M485-DI8-I
Specifications
Forsyning | 10-30 VDC, 0,4 W via klemrække |
---|---|
Indgang | 6 individuelt isolerede kanaler 2 isolerede kanaler med fælles stel Impedans: 3 kΩ / maks. 0,5 W Logisk 0: 0 – 1 V, Logisk 1: 3,5 – 30 V |
Isolation | 5000 VRMS |
Tæller | Alle indgange har 16 bit tællerfunktion med maks. tællefrekvens på 100Hz |
M485-DI8-I offers 6 completely independent channels and 2 common land channels for digital input. The various inputs have channel for isolation. In addition, you can choose either sinking or source input via wiring connections. All channels can be used as 16-bit has 8 LED indicators for di-channel status monitoring. 4 kV ESD protection and 5000 VRMS intramodulisulation are standard.
