8x Analog Inputs, Modbus RTU, DCON, RS485, 10 - 30 VDC
8x Analog Inputs to RS485
16-bit Readout
Power: 10 - 30 VDC
Dimensions: 123mm x 72mm x 35mm
Modbus RTU and DCON
RS485 module with 3-axpet Encoder input
1MHz Frequency input
input voltage: Up to 5VDC
Other voltages are with external resistance
32 bit counter
Quadrant, Pulse / Dir, CW and CCW
RS485 port - 1200 - 115.2K Baud
Supply voltage: 10 - 30VDC
Dim: 123 x 72 x 35 mm

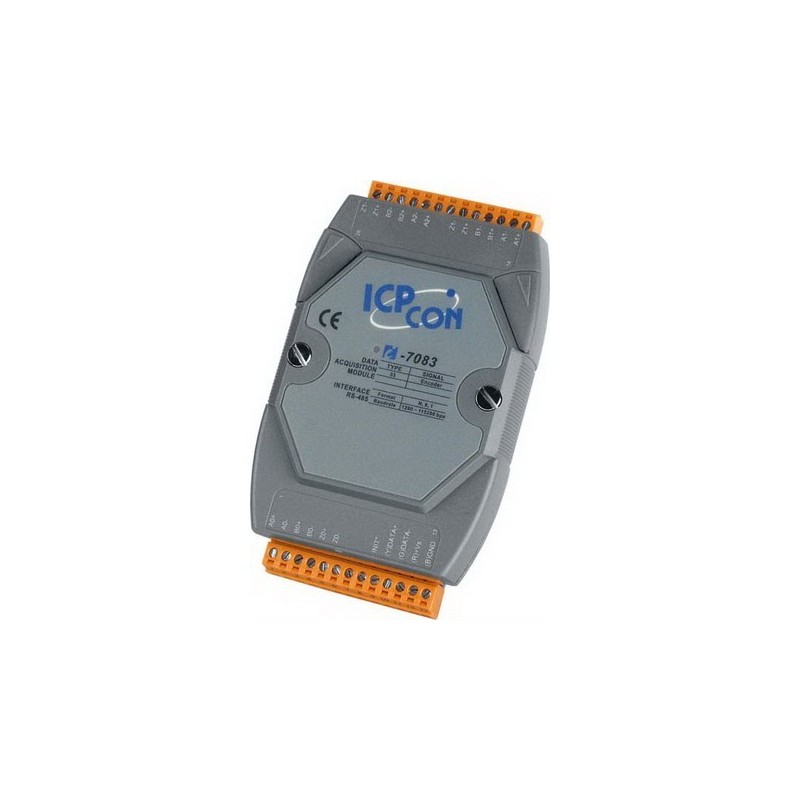

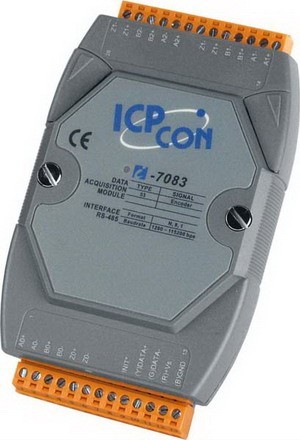

M485-Count Q-I is 3-axis high-speed encoder module. Each axis on the module can be independently configured as one of quadrant, pulse / dir or CW / CCW input mode with a maximum input rate of 1 MHz. The advanced specifications for the M485-Count Qi and complete software support make it ideal for a wide range of applications for positioning of motion systems working in industrial and laboratory environments.
Input Level 5vlogic High: 3.5V ~ 5vlogic Low: 0v ~ 2vinput 12V with external resistance of 1k Ohm. Logic High: 5V ~ 12Vlogic Low: 0V ~ 2V Input 24V with external resistance on 2K Ohm Logic High: 7V ~ 24Vlogic Low: 0V ~ 2V
8x Analog Inputs to RS485
16-bit Readout
Power: 10 - 30 VDC
Dimensions: 123mm x 72mm x 35mm
Modbus RTU and DCON
NMT Canopen Slave
Modbus RTU Master
Error Control: Node Guarding Protocol
Node ID: Setting CAN_MRU Utility Software or LSS Protocol
PDO modes: Eventless, externally requested, cyclic and acyclic Sync
Bob Mapping: Variable
Number of SDOs: 1 Server, 0 Client
Canopen Version: DS-301 V4.02
Device Profile: DSP-401 V2.1
CIA DSP -305 V1.1
Can Baud Rate: 10K - 1M BPS
Modbus Baud Rate 1200 - 115,200 BPS
LED indicators Run, Err and Overrun
Max. 10 Modbus RTU I / O Modules
Hiring program for configuration
7-segment LED to display Node ID, Can Baud Rate and RS-485 Baud Rate
Expansion module for X-400-I and X-600M-I
2 x Thermocouple connections for K-type Temperature sensor
10 pole interconnection flat cable for controller
RS485 communication between the devices
Supply voltage: 9 - 28VDC from Controller
Dim: 99 x 78 x 36 mm
Serial to HART Convert
Allows 2 pcs. Hart Masters
Point-to-Point or Multi-Drop Hart Mode
Possibility of connecting 15 HART modules
Point-to-point or multi-drop HART mode
for configuration of modules
Isolated COM 1: RS-232 / 422/485
PWR / RUN / ERR INDICATION LED
Built-in Watchdog
4 kV ESD protection
