Serial Port Converter with PoE

2x 3-wire RS-232 Port

Supports Baud Rate Up to 115200 bps

Parity Options: None, Odd, Even, Mark, Space

Data Bit Configurations: 5, 6, 7, 8

Stop Bits Options: 1, 2

Operating Temperature: -25 ~ +75 °C

Humidity: 10 ~ 90% RH, non-condensing

32-bit ARM CPU

Dimensions: 52 mm x 27 mm x 95 mm

Power input: 12-48VDC

Power Consumption: 0.07 A @ 24 VDC

Plastic Casing with DIN-Rail Mounting

RS232 optical isolator, BR up to 57.6k
Optical isolation: 2500 constant, 7.5kV surge
DB9 male and DB9 female
Powered from RS232 control signal channels TXD, RTS, DTR

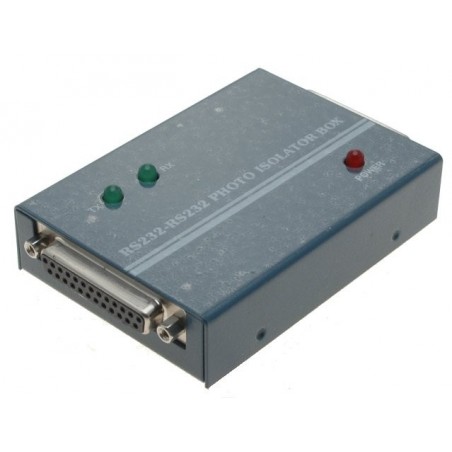

Mode: Asynchronous, Dual duplex, transparent data

Max. transfer rate 115 kb/s
transferred signals full RS232 - RxD, TxD, RTS, CTS, DSR, DTR, DCD, RI
optical indication RxD, TxD
max. line length 15 m
connector RS232 - PC side D - SUB 25 pin F
connector RS232 - DEVICE D - SUB 25 pin M
connector power supply 1,3mm plug
optical separation - optocouplers 2,5 kV
galvanic separation - DC/DC converter 1 kV
overvoltage (soft) protection - supply 600W 10/1000us
power supply +9 to 30V DC
input supply max. 1,2 W
dimension 91 x22 x 54 mm

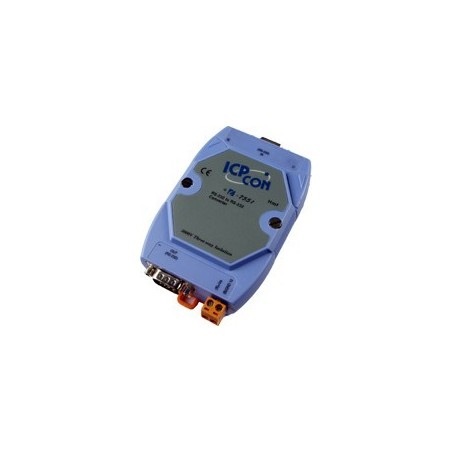

RS232 galvanic isolator, 3000VAC
With dual DC-DC converter, provides isolation both ways
Transmits Tx, Rx, RTS and CTS or DSR and DTR (selected)
Up to 115 kbit / s
Entrance: DB9 female, output: DB9 male
10-30VDC, screw terminal
DIN rail

RS232 galvanic isolator, 2500VAC

Transmits Tx, Rx, RTS and CTS

Up to 115 kbit/s

Input: DB9 female, output: DB9 male

RX, TX, ON indicator

12VDC / 100mA (-12V, +gnd)

Power supply included (3.5/1.3mm)
