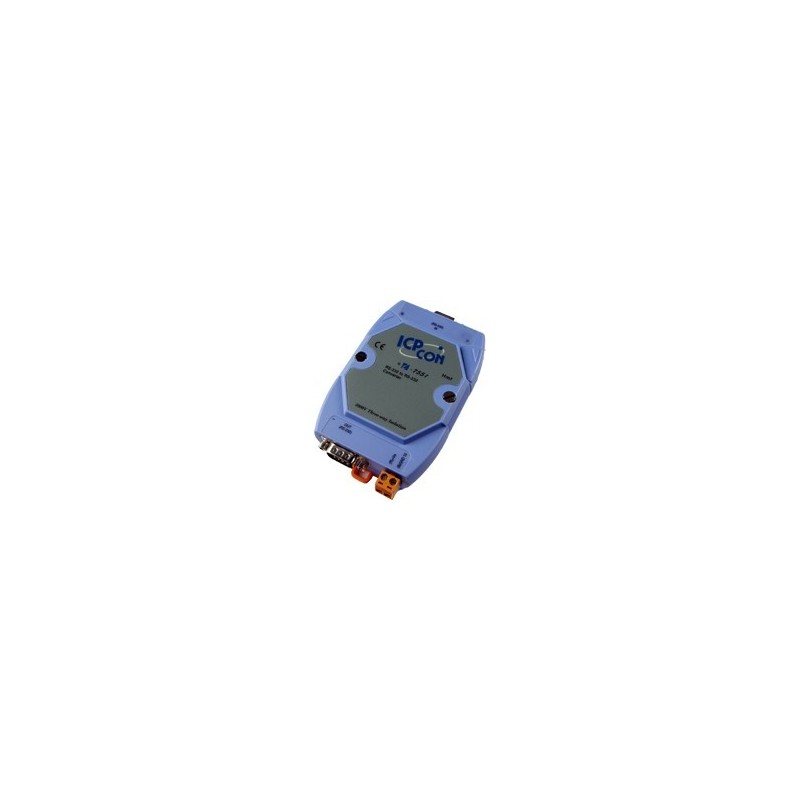

RS232 for RS232 with optical isolation, DB9 male / female, RX, TX, RTS / CTS or DSR / DTR

RS232 galvanic isolator, 3000VAC
With dual DC-DC converter, provides isolation both ways
Transmits Tx, Rx, RTS and CTS or DSR and DTR (selected)
Up to 115 kbit / s
Entrance: DB9 female, output: DB9 male
10-30VDC, screw terminal
DIN rail

M485-CNV232I232
924.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Type: Full duplex RS232 for RS232 optical isolator with DB9 connector
Isolation: 3000 VDC
Speed: Up to 115 kbit / s
Other: Internal jumper for selecting RTS / CTS or DSR / DTR.
Comes with brackets for DIN rail mounting
Supply: +10 VDC ~ +30 V DC Power Supply available as an accessory
Input: DB9F Output: DB9M.
Power Supply Screw Terminals

Forsyning
+10 VDC ~ +30 V DC, watt Strømforsyning medfølger ikke (se tilbehør)
Isolation
3000 VDC
