Interface provides instrumentation such as signal conditioners, output modules, high speed data loggers, portable load cell indicators, weight indicators and junction box. Many instruments are used in force measurement applications. We also offer full data acquisition and wireless telemetry systems for Load Cell and Torque Transducers. Our Multi-Channel Bridge Amplifier has a 4-Channel Capability, while the INF-USB2 Universal Serial has a Sensor to USB Output Converter.
Link: https://www.interfaceforce.com/product-category/instrumentation/
For 4 wire strain gauges
16 bit resolution
iOS and Android App
30m to 90m range (line of sight)
IP67
2 X AA battery (not included)
1 sample per second for 24 hours is approx. 10 months on battery
Operating temperature -40 to +85 ºC
Dimensions: 80 x 62 x 34 mm
Top-class weighing instrument from Interface
LCD screen, W x H - 117 x 86 mm
Display up to four channel channels per screenshot
With required Legal for Trade information
32 scale accumulations
Millivolt calibration, 5-point linearization and geographic calibration
NEMA Type 4X / IP66 stainless steel enclosure
Selectable A/D with measurement speed up to 960/second
100 set points, 30 configurable
64K uses built-in Non-V RAM
Power for 16, 350 ohm load cells per A / D card
Peak team
Sovereign Linearity Specifications
Excitation Voltage: 3.3Volt
Resolution: 24bit
% FS: 0.0002
Measurement speed up to 2400 samples per. Second
High internal resolution (up to 500,000 Counts)
IP67 Searched cabinet
Battery powered (long battery life)
128 x 64 Graphic screen with backlight
More display modes (Peak / bottom, Delta, Live , gross and net)
logging and graphing for PC (software is included)
support Ted's template 33, 40 and 41
Live calibration and multi-point calibration
Dim: 170 x 94 x 42 mm
Weight: 330 grams

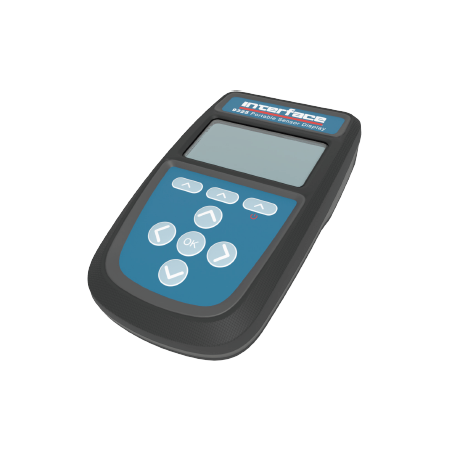

Handheld 7-digit LCD screen
4 Wire Full Bridge input
with Peak, Trough, Net, Overload and Shunt Cal Indication
Battery operation of 450 hours in power saving mode
Keys for ON / OFF , Interval Selection, Peak / Valley Hold and Gross / Net
Single Calibration (Direct mV/V) with double range for values such as kg and lb
Weighing only 250 grams
IP65 / NEMA4
TEDs Enabled to automatic Sensor calibration (IEEE1451 - Template 33)
Buy Leather case
Battery: 2 x AA
