Wireless strain gauge bridge, 4-wire load cell, transmitter module via Bluetooth APP, Android, iOS

For 4 wire strain gauges
16 bit resolution
iOS and Android App
30m to 90m range (line of sight)
IP67
2 X AA battery (not included)
1 sample per second for 24 hours is approx. 10 months on battery
Operating temperature -40 to +85 ºC
Dimensions: 80 x 62 x 34 mm

INST-LOADCELL-APP
3,600.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Designed to make measurement systems with practical and user-friendly access.
INST-LOADCELL-APP The Bluetooth system provides close-range load-cell, load-cell measurements for reading via SmartPhone or Tablet with instant interaction with data and projects.
Connect up to 12 sensors to a single or multiple mobile devices.

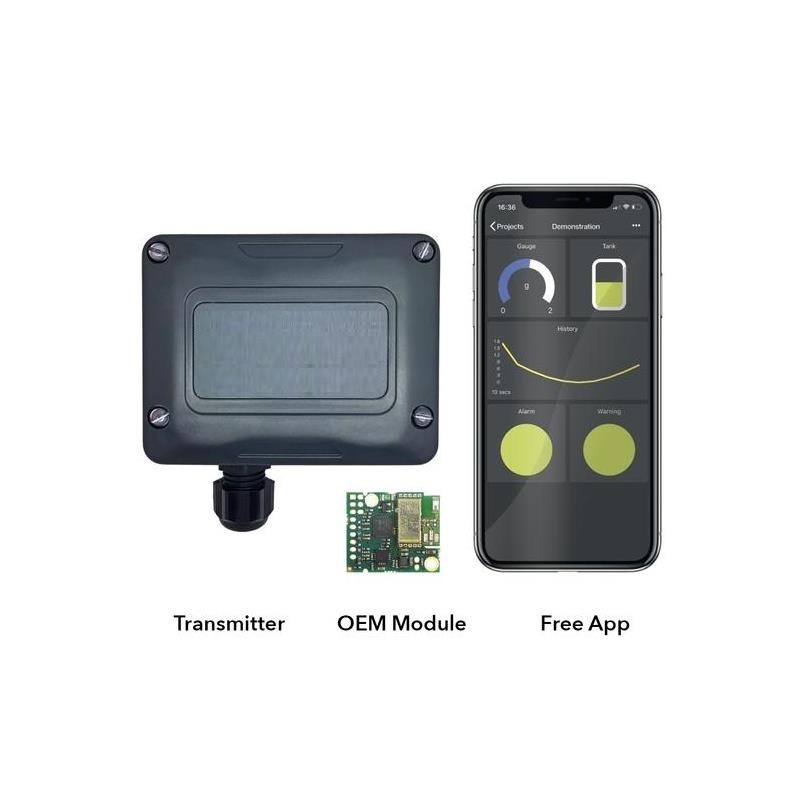

Has extremely power-saving electronics which, however, provide great input sensitivity. Sold either as an open board or in an IP67 enclosure with integrated battery holder for easy integration.
End user license terms apply, please ask.

Dimensioner
80 x 62 x 34 mm
Driftstemperatur
40 to +85 ºC
Forsyning
2 X AA cells, Transmitting 24 hr/day up to 10 months
Indgangsspænding
Strain Gauge Excitation Voltage (Nom) 3 V dc
Input
1x 4 Wire Strain Gauge
IP-Tæthed
IP67
Kapacitet
Strain Gauge Drive Capability 85 to 5000 ohms
Opløsning
16bits
OS SUPPORT
iOS and Android
