Interface Force Load Cells / Instruments

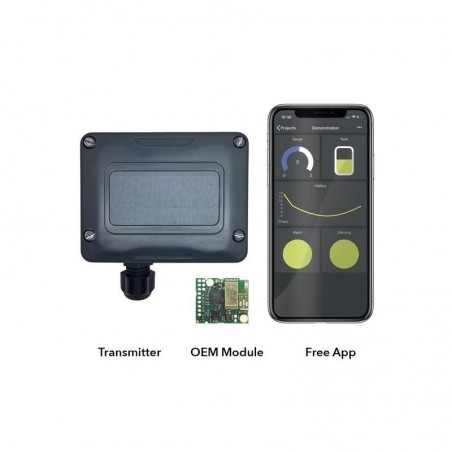

For 4 wire strain gauges
16 bit resolution
iOS and Android App
30m to 90m range (line of sight)
IP67
2 X AA battery (not included)
1 sample per second for 24 hours is approx. 10 months on battery
Operating temperature -40 to +85 ºC
Dimensions: 80 x 62 x 34 mm

Environmental sealing drawing and compression road cells
proprietary interface Temperature compensated load meters
Drag and print
small size
Construction of stainless steel
variant for immersed in liquid
mV/V 2.0
For Strain Gauge with 350 Ohm
Select the model with Newton Specification that fits the task
Price depends on weight class and sealing

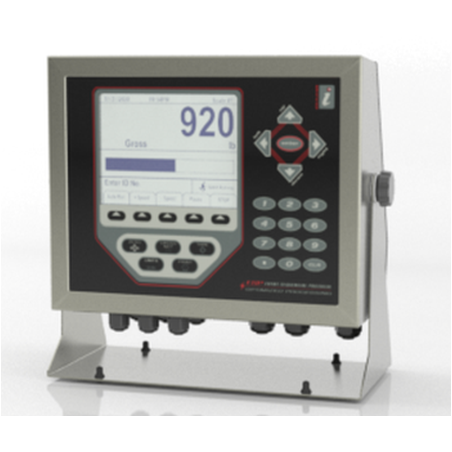

Top-class weighing instrument from Interface
LCD screen, W x H - 117 x 86 mm
Display up to four channel channels per screenshot
With required Legal for Trade information
32 scale accumulations
Millivolt calibration, 5-point linearization and geographic calibration
NEMA Type 4X / IP66 stainless steel enclosure
Selectable A/D with measurement speed up to 960/second
100 set points, 30 configurable
64K uses built-in Non-V RAM
Power for 16, 350 ohm load cells per A / D card
Peak team

3-axis Load cell with 3 outlets
simultaneous measurement of pressure and torque perpendicular to the pressure axis
Pressure axis works according to the same specifications Standard model
pressure stiffness and torque stiffness are both very high due to the Low Profile construction.

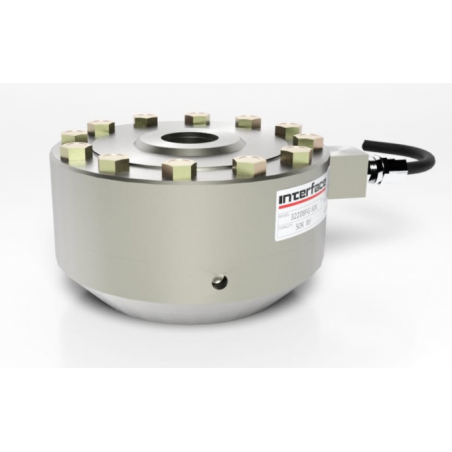

Load Cell series for the hard environment
the series is from 12.5n to 445Kn
current model is to 111Kn
Temperature compensated Strain Gauge
%FS: 0.03% High Output: 4mV/V For high accuracy
very low Deflection
made of stainless steel
Hermetical environmental sealed

3-axis - ForceX, ForceY, ForceZ Load cell
3 x Strain Gauge Bridges
Series from 10n to 500 KN Power Area
Current model is for 120kN
Compact Size
Low Cross Talk
mV/V output
Temperature compensated
Made in Aluminum - De-stressed material

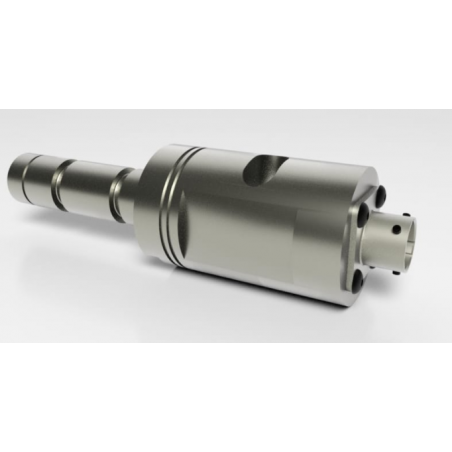

Weigh-pin to shackle or the like. For crane etc.
Designed pins or bolts for a load
stainless steel
used with fork arms or shafts to monitor loads
capacity up to 3.000k lbf. (1,360 MT)
custom Designs
Get Offer on This Product
Mechanical dimensions and Weight Need

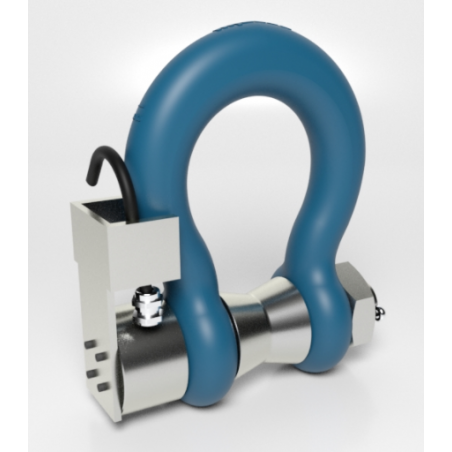

Shackel med vejecelle til kran og lign.
Fås i 10 vægtklasser
Denne model fås fra 1 - 35 ton
Crosby shackle
Til træk
Designet til 150% overload
IP67
Bestil ønsket vægtklasse

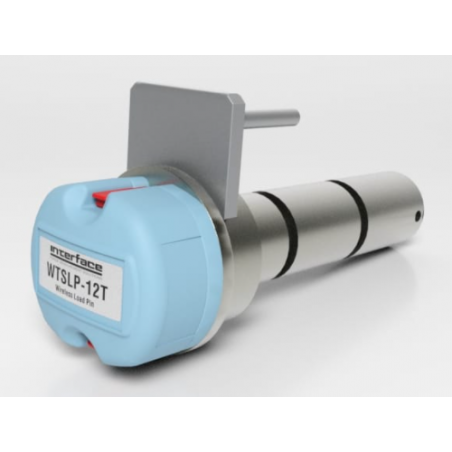

Weighing cell as a shakel pin can weigh up to 1,360 tonnes
Low power consumption for long battery life
Up to 600 meters range
Configured and calibrated via PC
Calibration using a base station and telemet tool set < Br> WiFi interface with WTS
robust lightweight house with built-in antenna
environmentally set for IP67

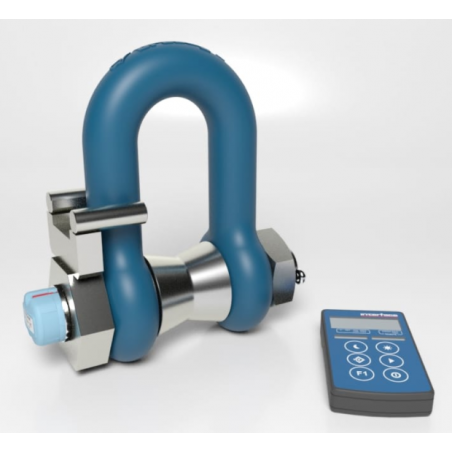

Crosby shackel with built-in road cell - wireless transfer
4 weight classes - up to 35 mega ton
Economic-proof for IP67
certified shackle and load-pin
2.4GHz WiFi
Battery operated
Up to 12 shackles per measuring instrument
Order for desired weight class
Contact the sales department
Instrument shown is not included

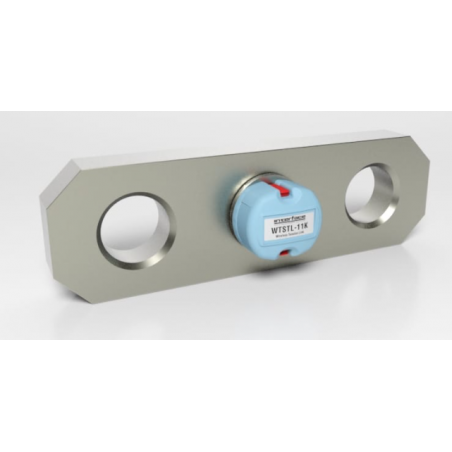

Pull-road cell for wire, cables, machinery - Wireless
Weight class: 5 - 100 ton
IP67 Environmental protection
Construction of stainless steel
Simple installation and operation
Wireless transmission range Up to 600 meters
long battery life

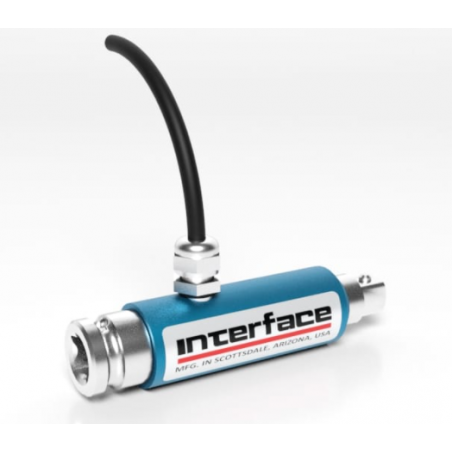

Torque-power measurement of e.g. fastner tools
can measure from 1Nm to 5 kNm - up to 500kg
No moving parts
Ideal for calibration of torque vrenches
Fits standard tool

low profile S-Beam load cells
only for pressure measurement (Tension)
Available in 17 variants from 22 N to 9 kN
Performance of 0.05%
Very large sensitivity
Temperature compensated Strain Gauges

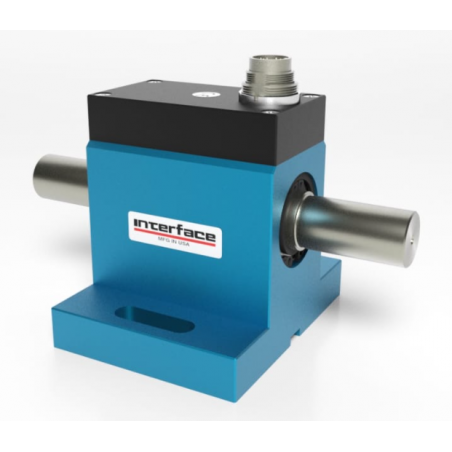

Load cell with shaft for measuring torque
capacities from 0.1Nm to 1kNm
speed up to 15,000 rpm
± 5vdc output (± 10vdc optional)
12 - 28vdc supply
Contactless data transfer to Stator
Digital electronics with on-shaft shunt
0.2% Combined error
10 kHz Sample Rate
12-bit resolution
measurement of speed and angle

Reaction twist-load cells in miniformat
Available in 3 weight classes from 5 Nm to 50 Nm (44.3 lbf-in to 443 lbf-in)
proprietary interface
Temperature compensated Strain Gauges
Compact Size: 70 x 60 mm
Excellent linearity and repeatability
low deflection and high twisting stiffness
Order desired weight class

Mini button cell for pressure measurement - sealed.
Available in 8 weight classes
superior to any other button cell
integrated temperature compensation
Improved eccentric load rejection
multi-point calibration
integrated loading button
Small diameter
environmental supplies
heat-treated stainless steel

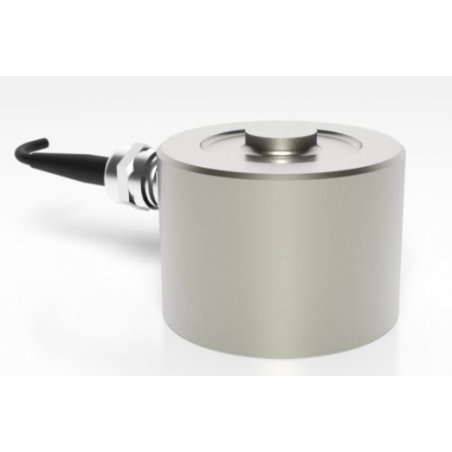

Load cell for tension - button cell model
capacities from 0.01 KN to 100 kN (2.25 LBF to 22.5K LBF)
Overload protected
Temperature compensated
small diameter
Environmental sealed IP60 or IP65
Stainless Steel

SMT Overload Protected S-Type Load Cel

• Proprietary Interface temperature compensated strain gages
• Overload protected in both tension and compression
• Safe overload to 10X capacity
• High performance
• Low creep
• 1 to 450 lbf

Overload protection: ± 400% of rated load
Temperature:
Temperature range: -10ºC to +45ºC
Temperature during use: -55ºC to +90ºC
Output Signal: 3.00 mV / V (nominal)
Supply voltage: 15 VDC
Cable length: 1.5 m
Dimensions: 130.3 x 50.8 x 31 mm
Weight: approx. 725 g
Linearity: ± 0.02% of rated load
Hysteresis: ± 0.02% of rated load
Reproducibility: ± 0.01% output

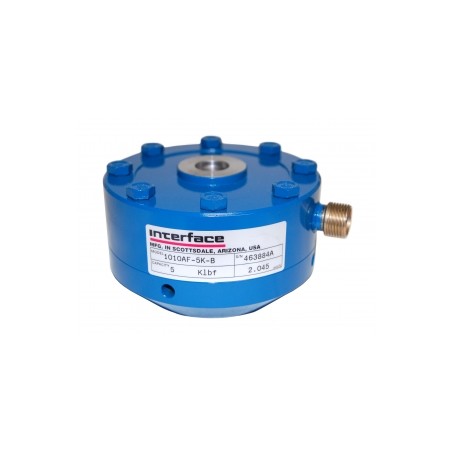

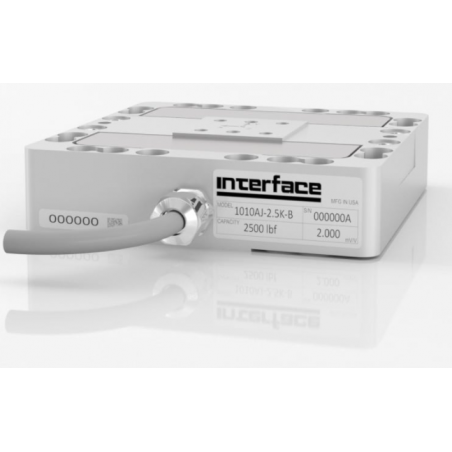

Top-class load cell - proven construction
Available in weight classes from 1.1 - 223Kn (100kg - 22 ton)
proprietary interface Temperature compensated strain Gauges
Performance for 0.03%
eccentric load compensated
Low deflection
0.0008% / ° F (0.0015% / ° C) temp. Effect on output
Barometric Compensation
Shunt calibration
E74 NIST trackable voltage and compression calibration (optional)
