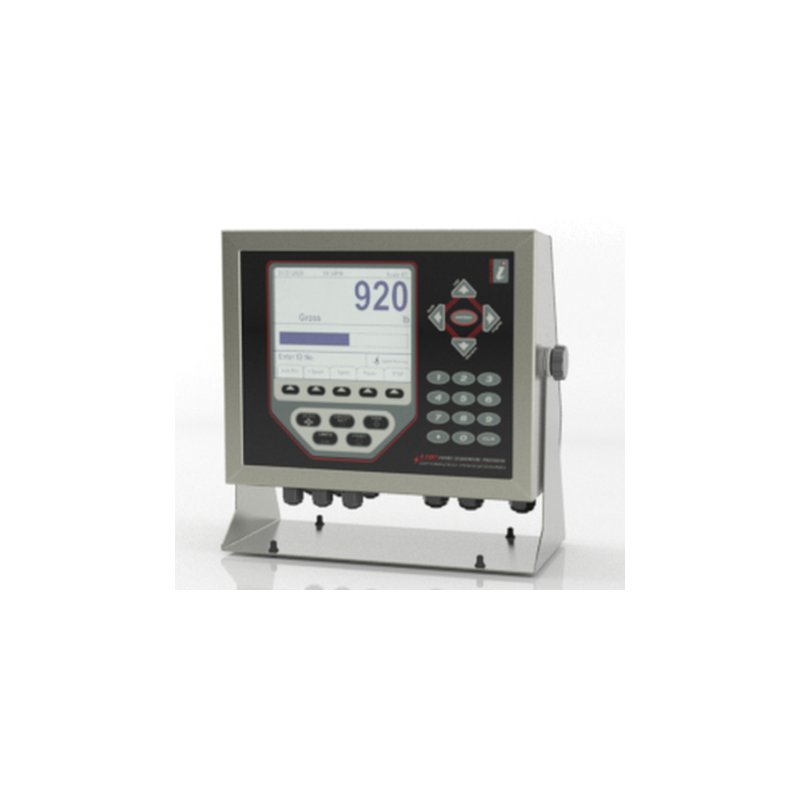

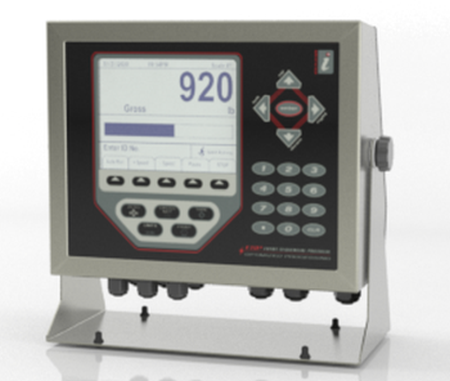

Programmable Load Cell Instrument and controller, LCD Display, Connection up to 16 Load Cell, IP66 NMEA 4X

Top-class weighing instrument from Interface
LCD screen, W x H - 117 x 86 mm
Display up to four channel channels per screenshot
With required Legal for Trade information
32 scale accumulations
Millivolt calibration, 5-point linearization and geographic calibration
NEMA Type 4X / IP66 stainless steel enclosure
Selectable A/D with measurement speed up to 960/second
100 set points, 30 configurable
64K uses built-in Non-V RAM
Power for 16, 350 ohm load cells per A / D card
Peak team

LC-920I-UNI
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

2 Slots for optional card
• 1000-ID truck registry for entry / Wastage
• 64 K Uses Built-in NV RAM
• User Programmable 128 K Flash Memory
• Reflash memory to upgrade firmware
• Power to 16, 350 ohm load cells per. A / D card
• Local remote control indicators
• Multi range / Interval
• Tracking of audit tracks
• Peak HD
• CHARGE SUBMISSION Possible options:
• Providing Streaming ASCII for printing, remote viewing and logging
• Internal MV / V calibration
• USB interface
• Analog output: 0-10V and 0-20MA
• Digital I / O, 24-channel TTL output
• Ethernet
