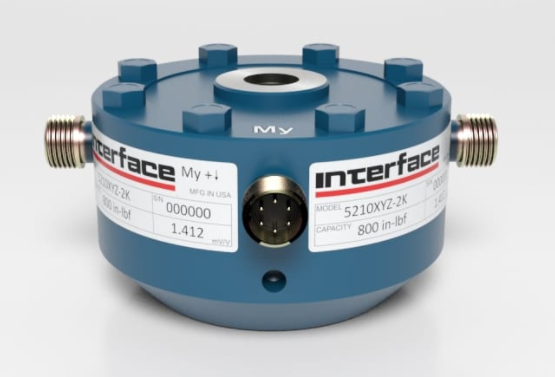

3 Axis Load Cell. Low Profile. 22Kn. Simultaneous measurement of force and torque.

3-axis Load cell with 3 outlets
simultaneous measurement of pressure and torque perpendicular to the pressure axis
Pressure axis works according to the same specifications Standard model
pressure stiffness and torque stiffness are both very high due to the Low Profile construction.

LC-5210XYZ-5K
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Multi-Axis Sensor Lowprofile ™ load cell is designed for applications where it is required to measure torque loads as well as axial load to determine center of gravity or misalignment.
