In this category you will find our selection of HART convert. HART Protocol is an acronym for 'Highway Addressable Remote Transducer' and is an industrial automation protocol. The advantage of using HART is that these devices can communicate over older analog 4-20mA current loops by sharing pairs of wires used for analogue systems. HART seen primarily in process and various automation systems, everything from simple automation applications for advanced industrial applications.
PROFIBUS TO HART Convert, Gateway
4 x HART Canals
Max. 2 pcs. HART Masters
Point-to-Point or Multi-Drop HART Mode
Possibility of connecting 15 HART modules
PWR / RUN / ERR indication LED
Built-in Watchdog
4 kV ESD Protection
Operating temperature -25-75 ℃
for DIN rail mounting
Serial to HART Convert
Allows 2 pcs. Hart Masters
Point-to-Point or Multi-Drop Hart Mode
Possibility of connecting 15 HART modules
Point-to-point or multi-drop HART mode
for configuration of modules
Isolated COM 1: RS-232 / 422/485
PWR / RUN / ERR INDICATION LED
Built-in Watchdog
4 kV ESD protection
Supports HART short / long frame
Supports HART Burst mode
Supports point-to-point or multi-drop HART mode
Supports connection of up to 15 HART slave devices
Allow 2 HART masters
The HC_Tool tool for module configuration and HART communication
Supports firmware update via Ethernet
PWR / TxRx indication LED
4KV ESD protection
Built-in watchdog
Selectable 250Ω load resistor
4 HART channels
Support VxComm technique
Built-in web server for network setting

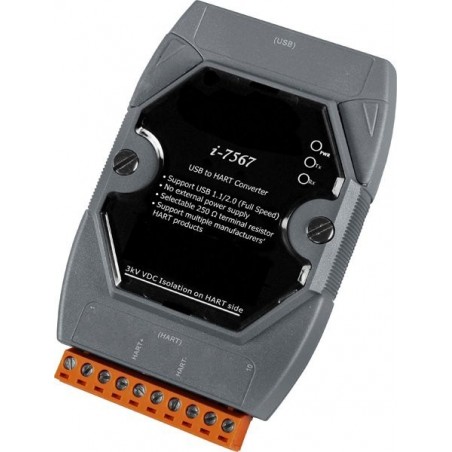

USB to Hart Bus Converter
to HART Short / Long Frame
to Hart Burst Mode
Point-to-point or Multi-Drop Hart mode
Up to 15 HART slave units < Br> Allow 2 Hart Master
Module Configuration Tools and HART communication
Power supplied by the USB port
Selectable 250Ω load resistance
