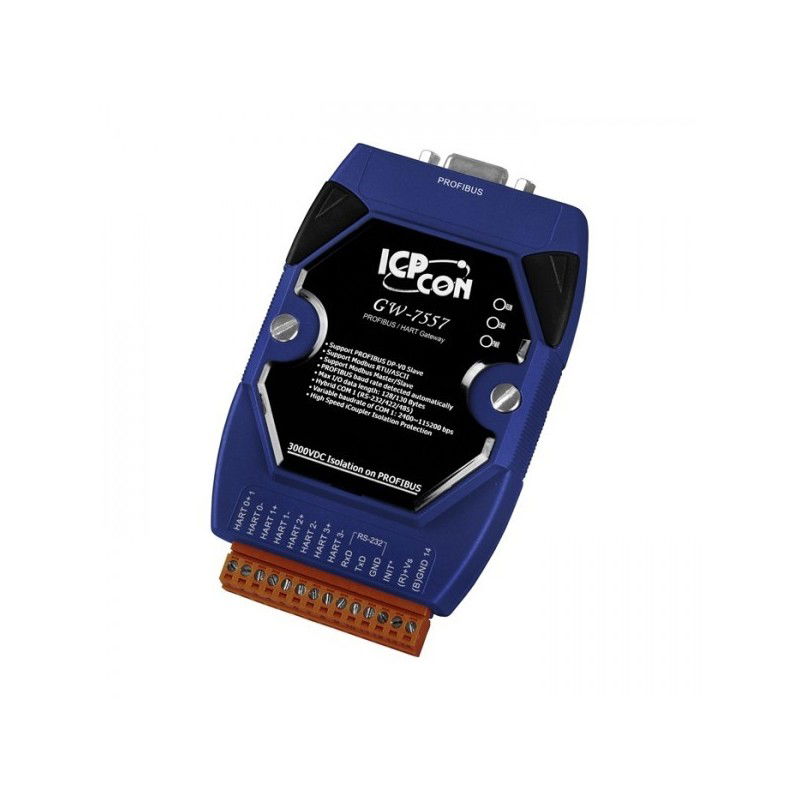

M485 Profibus til HART Gateway konverterforKonverter / Forstærker
M485 Profibus til HART Gateway konverterforKonverter / Forstærker

Profibus Master (RS232) for 4 Port Hart Slave Gateway Converter.

PROFIBUS TO HART Convert, Gateway
4 x HART Canals
Max. 2 pcs. HART Masters
Point-to-Point or Multi-Drop HART Mode
Possibility of connecting 15 HART modules
PWR / RUN / ERR indication LED
Built-in Watchdog
4 kV ESD Protection
Operating temperature -25-75 ℃
for DIN rail mounting

6,204.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number M485-PROFI-HART
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU 80186, 80 MHz or compatible
Operating Temp. -25 ~ 75℃
Controller Profichip VPC3+C
ESD ESD Protection 4 kV class A
Forsyning Power supply Unregulated +10 ~ +30 VDC Protection Power reverse polarity protection, Over-voltage brown-out protection Power Consumption 2.0 W
Hukommelse SRAM/Flash/EEPROM 512 KB / 512 KB / 16 KB
LED Round LED PWR LED, RUN LED, ERR LED
Montering DIN-Rail
Stik Profibus: 9-pin female D-Sub, HART Interface 8-pin screwed terminal block HART Channel 4 channels
UART COM RS-232 COM Connector 3-pin screwed terminal block (RxD, TxD, GND) Baud Rate (bps) Up to 115200 Data bit 7, 8 Stop bit 1, 2
Watchdog Watchdog IC CPU built-in
Dimensioner 72 mm x 33 mm x 119 mm (W x L x H)

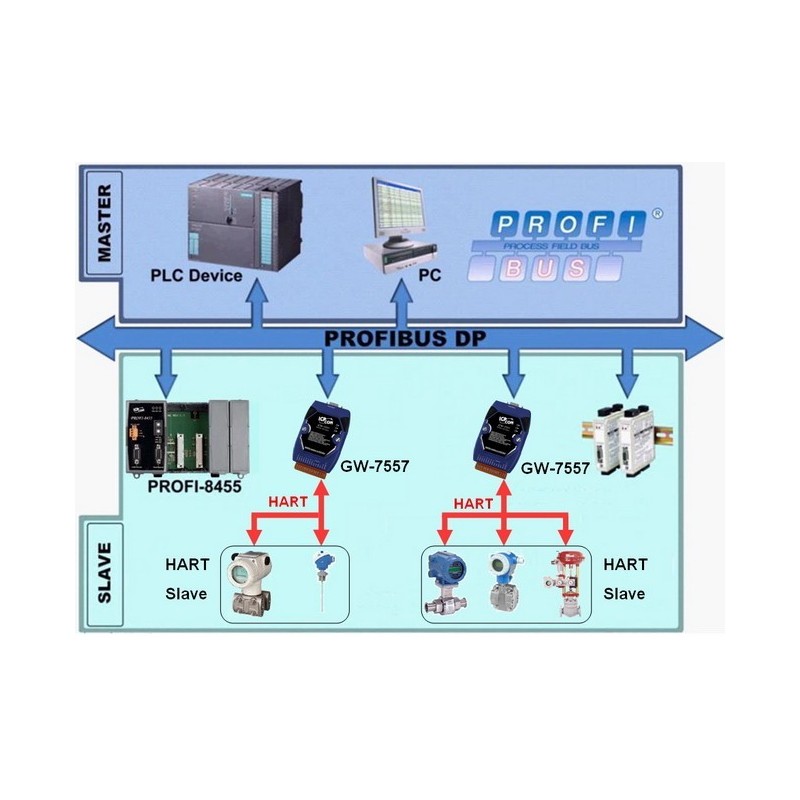

Gateway er specielt designet til PROFIBUS DP-protokollens slaveenhed. Det giver PROFIBUS-masteren adgang til HART-slaveenhederne. Disse HART-slave-enheder kan være en sender, en aktuator, en strømudgangsenhed og så videre. Derudover leverer vi også hjælpeprogrammet til brugere til at konfigurere enheden. Ved at bruge dette modul kan brugerne nemt sætte deres HART-slaveenheder i PROFIBUS-netværket.
