ICPDAS I-7570 is a serial for HART converter. RS232 / RS422 or RS484 bus
ICPDAS I-7570 is a serial for HART converter. RS232 / RS422 or RS484 bus
Previous
Next
ICPDAS I-7570 is a serial for HART converter. RS232 / RS422 or RS484 bus
ICPDAS I-7570 is a serial for HART converter. RS232 / RS422 or RS484 bus

RS232 / 422/485 to HART Convert, Hart Terminal Block for 2-wire. 10 - 30vdc.

Serial to HART Convert
Allows 2 pcs. Hart Masters
Point-to-Point or Multi-Drop Hart Mode
Possibility of connecting 15 HART modules
Point-to-point or multi-drop HART mode
for configuration of modules
Isolated COM 1: RS-232 / 422/485
PWR / RUN / ERR INDICATION LED
Built-in Watchdog
4 kV ESD protection

3,750.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number M485-HART-I
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -25 ℃ ~ +75 ℃
Baudrate 1200 bps (For FW_v1.1)
Data O(odd parity), 8(data bit), 1(stop bit) (For FW_v1.1)
Interface COM 1: RS-232(Tx / Rx / GND) / RS-422 / RS-485.COM 1 Connector: 9-pin screwed terminal block. HART Interface: 2-pin screwed terminal block. HART Channel: 1
LED PWR / TxD / RxD
Montering DIN-Rail or Wall Mounting
Strømforsyning Unregulated +10 ~ +30 VDC
Dimensioner 121 mm x 72 mm x 35 mm (H x W x D)

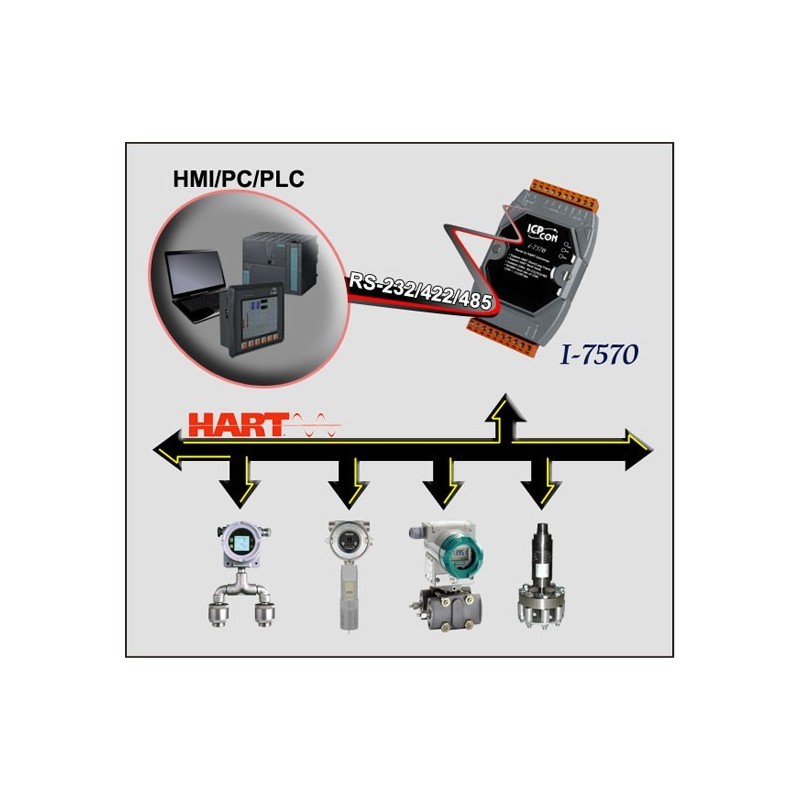

It gives users access to the HART slave using RS-232 / RS-422 / RS-485. These Hart slave units can be a transmitter, actuator, power output unit and so on. In addition, using the user with the tool can easily and test HART communication easily and quickly.
