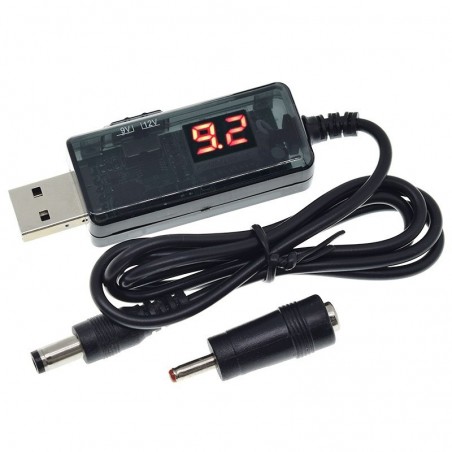

MAX Output 12V 0.8A or 9V 1A

USB to DC3.5mm or USB to DC5.5mm

For at forsyne 12V/0.7A skal 5V input være minimum 2A

En PC USB2.0 port giver maks. 5V/0,5A (2,5 Watt)

En PC USB3.0 port giver maks. 5V/0,9A (4,5 Watt)

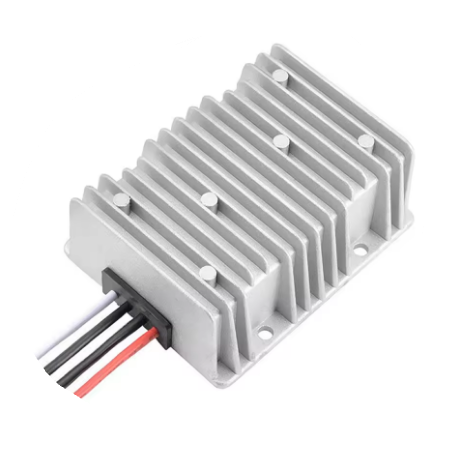

Input voltage: 10 - 30VDC

Output voltage: 48VDC

Max current: 8 Amp

Overvoltage, over-current protection

Waterproof, dustproof

Voltage regulation: <1%

Ripple: 180mVp-p

Switch frequency: 50kHz

Efficiency: 95%

Dimensions: 100 x 80 x 39 mm

Flange mounting

Weight: 550g

Temperature range: -40 to + 80°C

Cable length: 16cm

Input Output 8-36VDC
12VDC 15A
Operating temperature -35 ° C to + 80 ° C
not isolated between input and output.
IP68
Overvoltage protection
Over -current protection
Over-temperature protection

Round USB charging socket
Diameter 28.7mm
Length 41.7mm
With protective cover
Dual QC Ports Output: (Single Max 18W, Dual Max 30W) 5V/3A、9V/2A、12V/1.5A
PD3.0 USB-C Output: 5V/3A, 9V/2A-3A, 12V/1.5-2.5A, 15V(20V)/1A-1.5A
DC 12V, USB-C PD output max 20W
DC 24V, USB-C PD output max. 30W
With switch
Output 2xUSB A & C, PD 5Vdc
PD 30W
Total Output < 60W
Fuse: 10A

5VDC cigarette lighter plug adapter
10W Car Charger

Switch mode converter from 12-15 VDC
For 3VDC / 5VDC / 6VDC / 7.5VDC / 9VDC or 12 VDC
Max. 2 Amp
4 DC Jack connector included

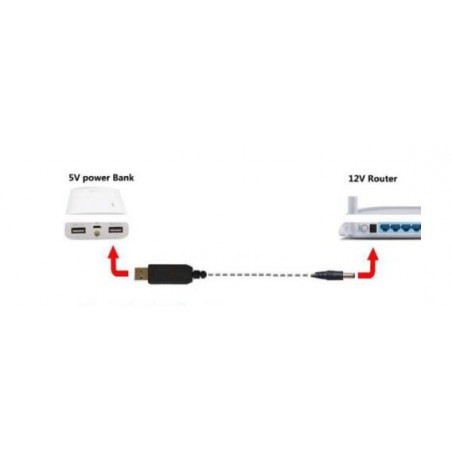

MAX 12V 0.7A (8.4 Watts)
USB to 2.1x5.5 mm plug
To supply 12V/0.7A, the 5V input must be a minimum of 2A
A PC USB2.0 port provides max. 5V/0.5A (2.5 Watt)
A PC USB3.0 port provides max. 5V/0.9A (4.5 Watt)
Laptop is typically 5V/0.2A (1 Watt)
For power consumption above what a USB port can supply - use an external 5V power supply
The power is dependent on the 5V supply (P=V*A) (Power=Voltage * amps)
1 meter cable

18 - 36VDC DC / DC converter to 5VDC
Large DC voltage DC / DC converter
5VDC 2A
Working temperature -25- + 70 ° C

Waterproof DC / DC converter
9-32V to 19V
5 Amp
95 Watts
90% (half load), 87% (full load)
-40 ° c ~ + 80 ° c, IP68
Overvoltage protection
Over-current protection
Over-temperature protection
Short-circuit protection
74 * 74 * 32mm
300g

18 - 36VDC DC / DC Converter for 24VDC Fine adjustment
isolated DC / DC converter with large voltage range
24VDC 1,1A output

DC/DC BUCK konverter fra 9-36VDC til 24VDC
Effekt: 240Watt (10Amp)
Ikke isoleret mellem indgang og udgang
Switchmode - 97% effektivitet
IP68 aluminium med epoxy sealing
Kortslutning-, overspænding- og temperaturbeskyttet
Mål: 100 x 80 x 39 mm
Vægt: 470 g

8 - 35 VDC DC / DC converter to 5V 3A with USB-A connector.
Waterproof
Not galvanically insulated
5VDC 3Amp (15Watt)

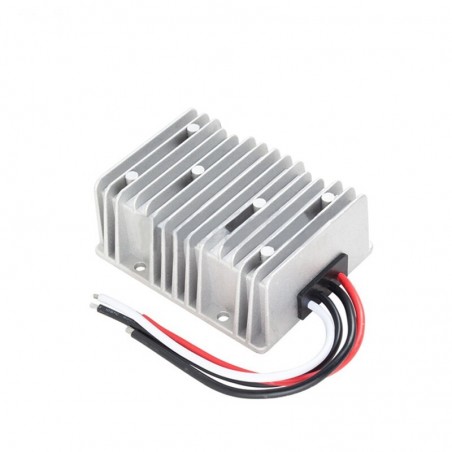

12-25VDC to 48VDC 384Watt step-up converter
No galvanic isolation between input and output
Input from 10 - 25VDC
93% efficiency
Max. ripple full load: 170mV
No-load current: 70mA
Overvoltage and overheat protected
Aluminum metal housing with IP68 tightness
Flange mounting
Cable length: 14cm
Working temperature -40 - +80°C
Dimensions: 100 x 80 x 39mm
Weight: 500g

18-36VDC DC / DC converter for 24VDC
Insulated DC / DC converter with large voltage range
DIN mounting

18 - 36VDC DC / DC converter for +/- 15VDC
Insulated DC / DC converter with large voltage range
+ 15VDC and -15VDC 300mA

19 - 36VDC - DC / DC Converter for 12VDC, adjustable
Isolated DC / DC converter with large voltage range
working temperature -10 - + 60 ° C

12V DC / DC converter to 5V 3A with USB connector.
Waterproof - IP68
Not galvanically insulated
5VDC 3Amp (15Watt)
Cable length: 35cm (output) 12cm (input)
Dimensions: 150 x 100 x 14 mm

INPUT 8-40VDC
OUTPUT 12VDC 3A
Operating temperature -30 ° C to + 80 ° C
not isolated between input and output.
IP68
Overvoltage protection
over -Current protection
over-temperature protection

INPUT 8-40VDC
OUTPUT 12VDC 10A
Operating temperature -30 ° C to + 80 ° C
not isolated between input and output.
IP68
Overvoltage protection
over -Current protection
Over-temperature protection
Screw terminals - solder eye included
Dim: 110 x 72 x 24 mm
