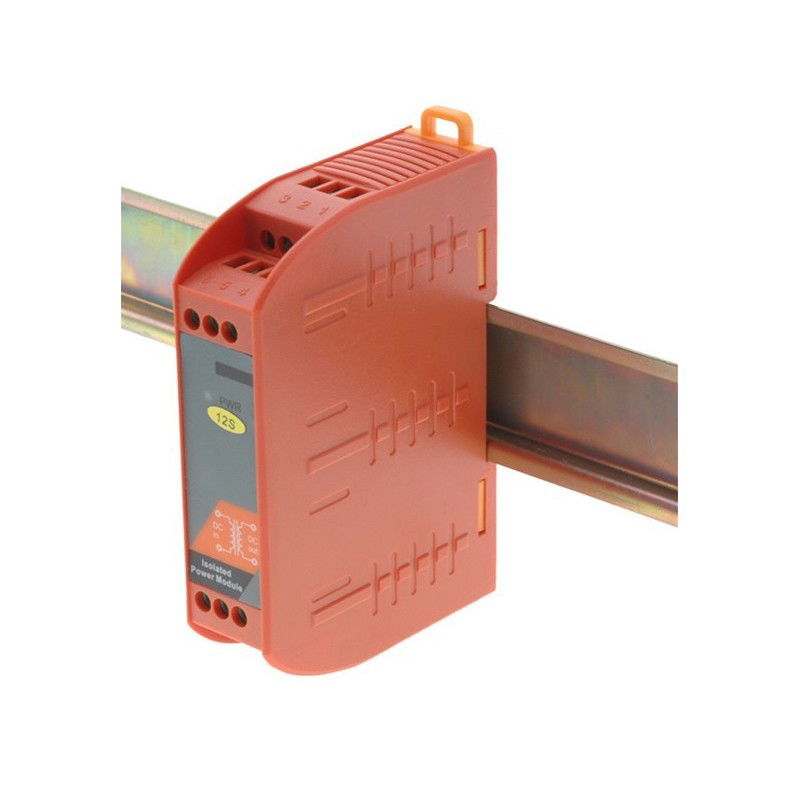

+24 v DC omformer, maks. 400 mA, 9,6 WforDC/DC converter

24VDC 400mA (9.6Watt) Converter from 18 - 36VDC, galvanically isolated, DIN mount

18-36VDC DC / DC converter for 24VDC
Insulated DC / DC converter with large voltage range
DIN mounting

1,217.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number DC-DC24DIN
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Andet Kortslutningssikrede udgange
Indgang 18 – 36 VDC
Isolation 1000 Vrms
Max strømstyrke 400 mA
Montering DIN-skinne eller panelmontage
Stik Skrueterminaler
Udgange +24 V
Virkningsgrad Op til 83 %
Dimensioner 113 x 24 x 70 mm (H x B x D)
