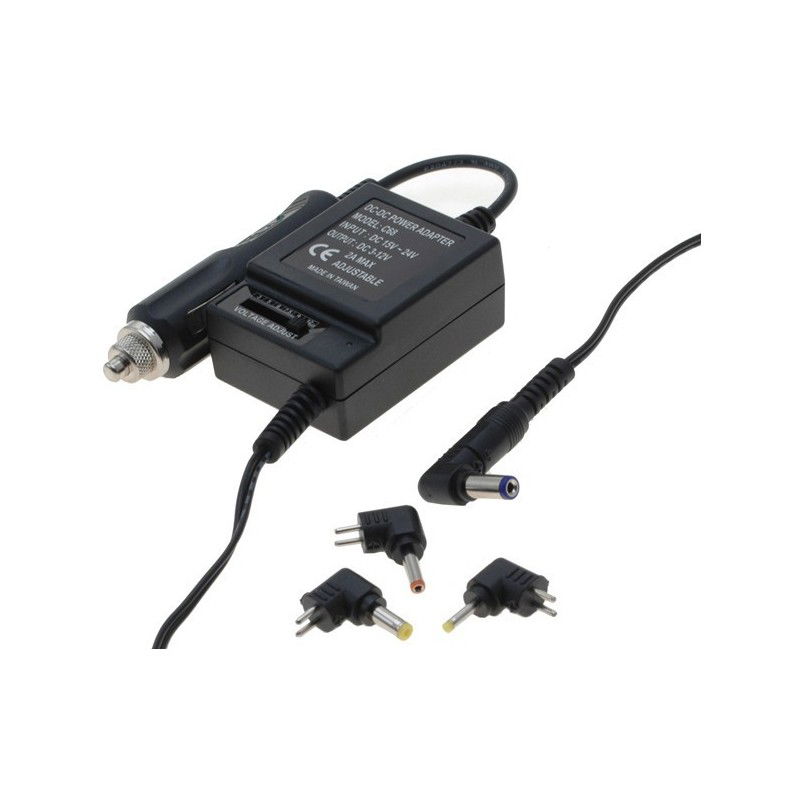

Switch mode converter from 12-15 VDC
For 3VDC / 5VDC / 6VDC / 7.5VDC / 9VDC or 12 VDC
Max. 2 Amp
4 DC Jack connector included
Universal DC / DC converter to 12V connector in car
Output voltage selected with slider switch between 3/5/6 / 7.5 / 9 or 12 volts. Includes 4 different DC connectors
Overload and short circuit proof switch mode power supply
The DC plug plug polarity can be reversed.
170 cm DC plug connector
18 - 36VDC DC / DC converter for 12VDC
Large DC voltage DC / DC converter for 12VDC 800mA (9.6Watt)
MAX 12V 0.7A (8.4 Watts)
USB to 2.1x5.5 mm plug
To supply 12V/0.7A, the 5V input must be a minimum of 2A
A PC USB2.0 port provides max. 5V/0.5A (2.5 Watt)
A PC USB3.0 port provides max. 5V/0.9A (4.5 Watt)
Laptop is typically 5V/0.2A (1 Watt)
For power consumption above what a USB port can supply - use an external 5V power supply
The power is dependent on the 5V supply (P=V*A) (Power=Voltage * amps)
1 meter cable
Input Output 8-36VDC
12VDC 15A
Operating temperature -35 ° C to + 80 ° C
not isolated between input and output.
IP68
Overvoltage protection
Over -current protection
Over-temperature protection
18 - 36VDC DC / DC converter to 5VDC
Large DC voltage DC / DC converter
5VDC 2A
Working temperature -25- + 70 ° C
