DC / DC converter, reduce voltage (Step-down)
DC / DC converter, reduce voltage (Step-down)
DC / DC converter, reduce voltage (Step-down)
Previous
Next
DC / DC converter, reduce voltage (Step-down)
DC / DC converter, reduce voltage (Step-down)
DC / DC converter, reduce voltage (Step-down)

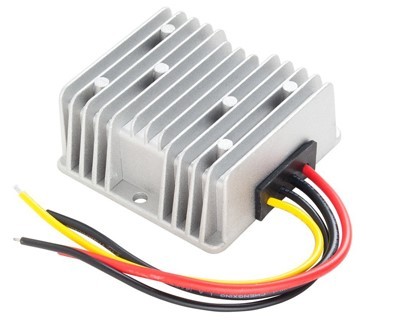

19VDC from 9-32VDC 5AMP (95W) waterproof DC / DC converter. Step-up and step-down converter. not galvanically isolated.

Waterproof DC / DC converter
9-32V to 19V
5 Amp
95 Watts
90% (half load), 87% (full load)
-40 ° c ~ + 80 ° c, IP68
Overvoltage protection
Over-current protection
Over-temperature protection
Short-circuit protection

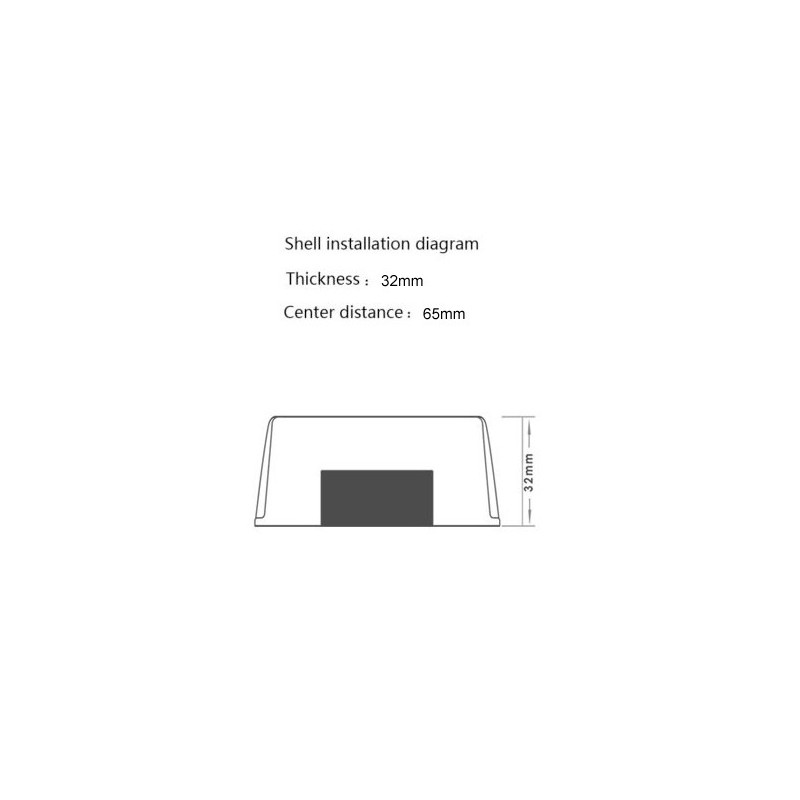

74 * 74 * 32mm
300g

550.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number DC-DC19V-95W
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -40°c ~ +80°c
Ampere 5 Amp
Input 9-32V
IP-Tæthed IP68
Output DC 19V
Weight 300g

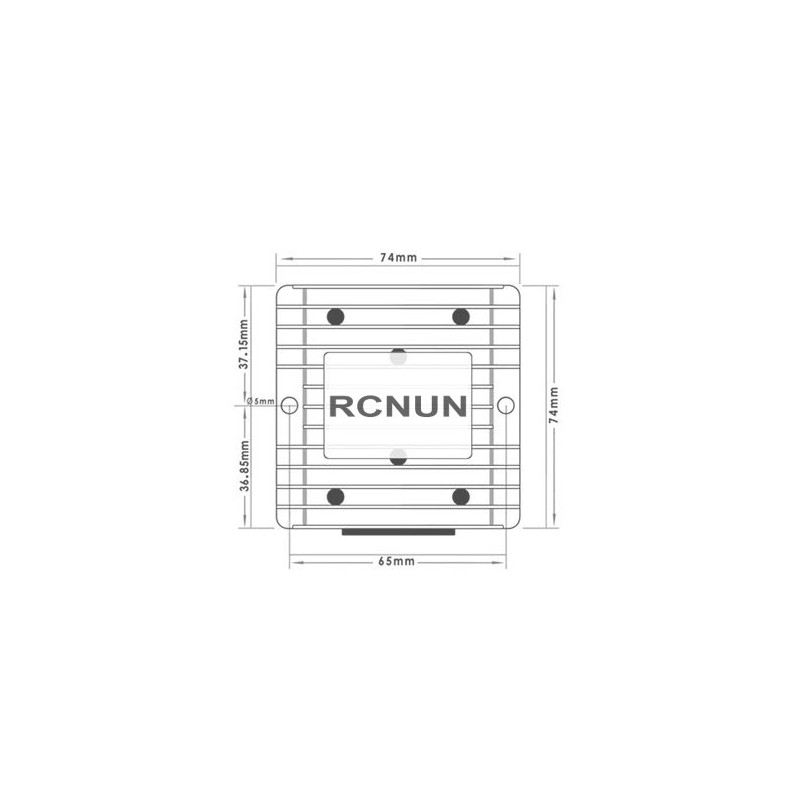

Dimensioner 74*74*32mm

19vdc output from 9-32V 5AMP. DC / DC voltage converters. Waterproof and with molded alu cabinet.
