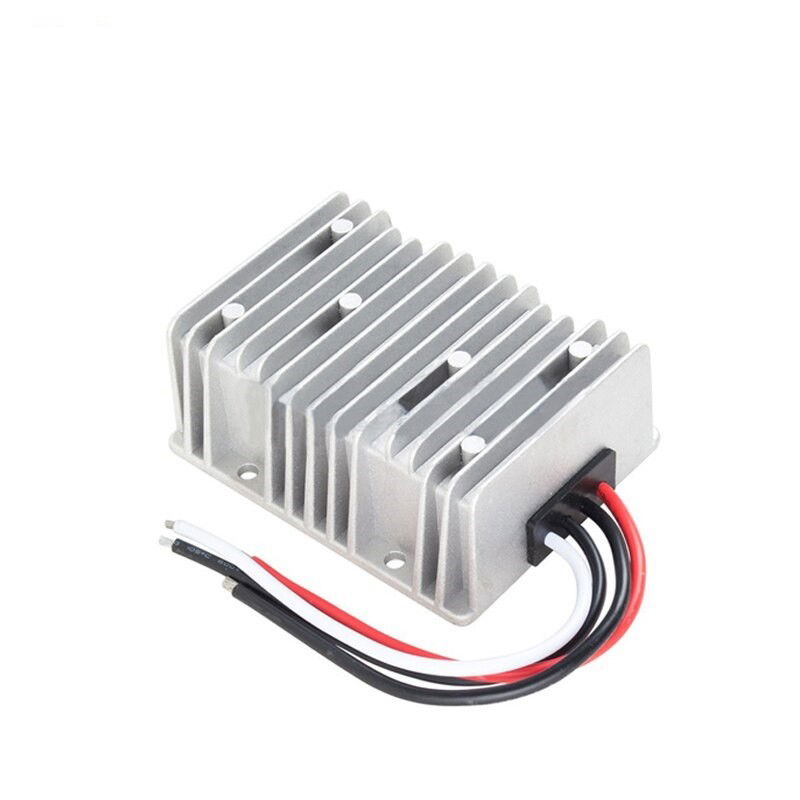

12-25VDC to 48VDC 384Watt step-up converter
No galvanic isolation between input and output
Input from 10 - 25VDC
93% efficiency
Max. ripple full load: 170mV
No-load current: 70mA
Overvoltage and overheat protected
Aluminum metal housing with IP68 tightness
Flange mounting
Cable length: 14cm
Working temperature -40 - +80°C
Dimensions: 100 x 80 x 39mm
Weight: 500g
DC DC converter also called step-up.
The DC-DC converter converts an input voltage from 10 to 25Vdc (12 VDC nominal) to an output voltage of 48 VDC max. 8A 384 watts.
The converter is non-isolated. That is no galvanic isolation between input and output.
Has voltage protection, overload protection and short circuit protection
Connection:
Red: +10 - 25VDC (input)
Black: minus (input)
White: +48VDC (output)
Black: minus (output)
