Mifare 13.56 MHz RFID technology and main variants
The Mifare standard for RFID was originally defined by Philips in 1994 for use in non-contact electronic ticketing and was later described in the ISO / IEC 14443A standard for 13 , 56 MHz non-contact smart cards. Therefore, there is no emphasis on large reading distance, which is typically up to 8 cm using common tags and readers. Mifare is used eg. in the travel card in Denmark. Mifare tags, like tags for the EM standard for 125 KHz, have a unique ID (UID) - but also have built-in memory that is stored in "sectors" in the tag.
Mifare technology available in several variants. Mifare Classic is provided with 1k or 4k memory organized in sectors. Mifare UltraLight has 512 bytes of memory in sectors - but otherwise works as Mifare Classic. MIfare PRO Works as a "smart card" with CPU and the ability to insert an operating system into the tag, so it's probably the most flexible of the Mifare technologies. In addition, there is a dedicated processor built-in for DES encryption to allow data to be secured against unwanted access.
Mifare DESFire supports AES encryption as well as DES and 3DES encryption when accessing sector data in the tag. Therefore, data with very high security can be protected against unwanted reading and copying. Works as a "smart card" with cpu and operating system built into a PROM area in the tag optimized for fast reading of data. Can use UID of up to 64 bits.
13.56MHz RFID with Ethernet, Bluetooth, USB type C
Mifare, Desfire UID
Reading distance: 1 - 5cm
USB virtual Com port
Ethernet: TCP Server/client, UDP server/client
Json mode
BT 5.0 BLE/ SPP up to 20 meters
ISO14443A/B, ISO15693
Temp: -10 - + 60°C
Dim: 73 x 71 x 27 mm
Supply: USB type C (5VDC)

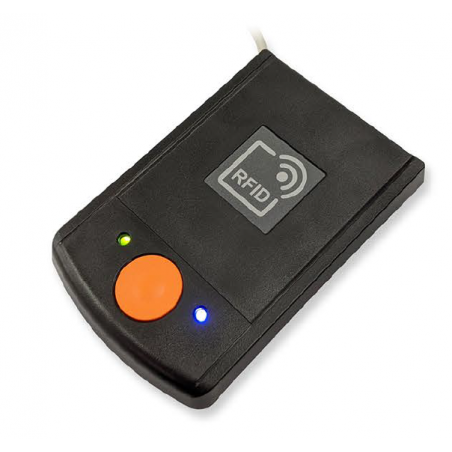

Mifare Desktop 13.56MHz RFID reader
NFC 1-4, ISO 14443A, ISO 15693
Other formats on request
HID, Keyboard emulation
Can be programmed for Virtual COM
HEX or Decimal, ordered upon purchase
13.56MHz
5VDC/100mA
-20 - +60°C
Dimensions: 100 x 65 x 25
Mifare reads with USB
13.56MHz
USB HID (plug and play)
Powered from USB
Additional purchases from Decimal to HEX, normal or reverse
Additions with start and or stop character
Supports: ISO14443A, ISO18092 FeLiCa tags
Dimensions: 100 x 65 x 23 mm
Material: ABS
REMEMBER: Order the desired version - additional purchase

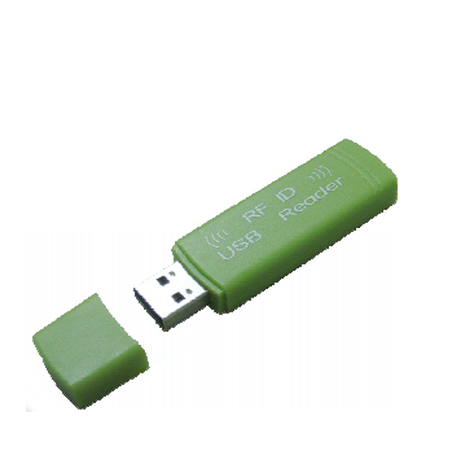

RFID 13.56MHz Mifare reader
Looks like a USB stick
ISO14443A standard
5VDC/100mA from USB port
USB 1.1
UID code as 40 bit HEX. HID to USB port
40 bit UID
Reads the same code once on presentation
Automatic CR and line change
Reading distance up to 2 cm
LED tri-color
Dimensions: 70mm x 20mm x 9.8mm
Weight: 18g
Reading speed: less than 100ms
Mifare Classic 1K RFID Tag
Reading distance: 0 - 5 cm
ISO14443A
1 Kilobyte Memory
768 byte Free in 16 sectors / 4 blocks / 16 bytes
UID code is factory programmed - Cannot be changed
blue key ring
Frequency: 13.56MHz
Material: ABS, IP68
DIM: 40 x 32 x 4 mm
Dual band RFID card reader for USB - 10 Decimal
125 kHz: EM-Marin EM41xx, EM4200
13,56MHz: Mifare - ISO14443A
HID - Keyboard Emulation
Reading distance: 5 to 8cm
Powered by USB
USB interface
operating temp. -10 ° to + 70 ° C
dimensions: 98 x 63 x 10mm (L x B x H)
Dual Band RFID card reader for USB - Decimal/HEX
8-10 characters Decimal/HEX - 32/40bit
125 kHz, 13.56 MHz, NFC
125kHz: EM4001, EM4002, EM4200
Mifare: ISO 1443A/B/15693
HID - keyboard emulation
Reading distance: up to 10 cm
Supplied via USB
USB interface
ID format setting with DIP switches - see diagram
Hard copy form with the product
operating temp. -25° to +70°C
Dimensions: 88 x 56 x 18 mm
Dual band RFID card reader for USB - Decimal
10 characters decimal (ASCII) - 40bit
125 kHz, 13.56 MHz, NFC
125khz: EM4001, EM4002, EM4200
Mifare: ISO 1443A/B/15693
HID - Keyboard Emulation
Reading distance: Up to 10 cm
Align via USB
USB interface
Dip-SW to ID format setting - see Table
Environment: IP67 Waterproof, outdoor mounting
operating temp. -25 ° to + 70 ° C
target: 88 x 56 x 18 mm
Keyboard emulation: 10 digits, 40bit Hexadecimal
Frequency: 13,56MHz Mifare Ultralight
Versions: Mifare S50, S70, ISO15693, ISO14443A / B
Power supply: 5VDC from USB port
Operating temperature : -10 - + 75 ° C
reading range: 5 ~ 15 cm
cable: Fixed USB cable on the far side
Dimension: 118 (L) × 75 (W) x 17 (H) mm
Weight: 250g ± 10%
Waterproof - IP67
Keyboard emulation: 8 digits, 32bit ASCII, Decimal
Frequency: 13.56MHz Mifare Ultra Light
Versions: Mifare S50, S70, ISO15693, ISO14443A/B
Power supply: 5VDC from USB port
Operating temperature: -10 - +75°C
Reading distance: 5 ~ 15 cm
Cable: Mount the USB cable on the back
Dimension: 118 (L) x 75 (W) x 17 (H) mm
Weight: 250g ± 10%
Waterproof IP67, wall mounting
Keyboard emulation: 8 digits, 32-bit ASCII, Decimal
Frequency: 13,56MHz Mifare Ultralight
Versions: Mifare S50, S70, ISO15693, ISO14443A / B
Power supply: 5VDC from USB port
Operating Temperature: -10 - + 75 ° C
reading range: 5 ~ 15 cm
cable length: solved USB cable
Dimension: 118 (L) × 75 (W) x 17 (H) mm
Weight: 250g ± 10%
Desktop - desktop model
Keyboard emulation: 10 digits, 40bit ASCII, Decimal
Frequency: 13,56MHz Mifare Ultralight
Versions: Mifare S50, S70, ISO15693, ISO14443A / B
Power supply: 5VDC from USB port
Operating Temperature: -10 - + 75 ° C
reading range: 5 ~ 15 cm
cable length: solved USB cable
Dimension: 118 (L) × 75 (W) x 17 (H) mm
Weight: 250g ± 10%
Desktop - desktop model
Top-class scanner for item and product registration
Professional Multi Reader and Writer for RFID and Barcode 1D/2D/QR etc.
Powerful circular polarized antenna
UHF RFID read and write up to 25 meters, depending on TAG
UHF TAGs are passive - without a battery
Reads NFC and Mifare TAGs
Reads up to 900 TAGs per second
Barcode reader CCD: 1D, 2D, QR codes
Access to the APP Center with programs and tools
13MP camera with flash
5.2" Display - 1920 x 1080p with touch
Communication: dual band Wifi, Bluetooth, 4G LTE
Dual SIM or Single SIM and Micro CD card
GPS/AGPS, GLONASS
Battery: 8000mAh Li-ion (approx. 12 hours of operating time)
IP65 tight. 1.5 meter drop tested
Operating temperature: -20 - +50°C
Waterproof RFID reader
only with Wiegand Interface
Connect to access controls with Wiegand
TAG Type: EM / Mifare
Reading distance: 5.8 cm
IP68
Frequency: 125kHz / 13,56MHz
LED and Buzzer
Cable out from the back
Detachable Backpiece
Supply Voltage: 12VDC
Dimensions: 86 x 86 x 22mm
RFID Copy Reader / Writes to T5577 RW Tag
interface: USB
Work voltage: 5 VDC
Work current: 200mA
Standby Stream: 50mA
Normal current: 100mA
125kHz, 13,56MHz Mifare / NFC
Compatible with CCID and PC / SC
IC / ID Dual Frequency Replication
Supporter ID125K, 8800, 5200, 4305, 5577, 8265 Card
Support UID, Fuid, Cuid, UFUID
IC Semi-Encrypted Card, IC Full Encryption Card
Dim: 108 (L) x 68 (W) x 12 mm (H)
Frequency: 860-960MHz
PVC / PET
ISO18000-6C (EPC GEN2)
Dimensions: 86x54x0.8mm
Operating temperature: -25C - 85 degrees

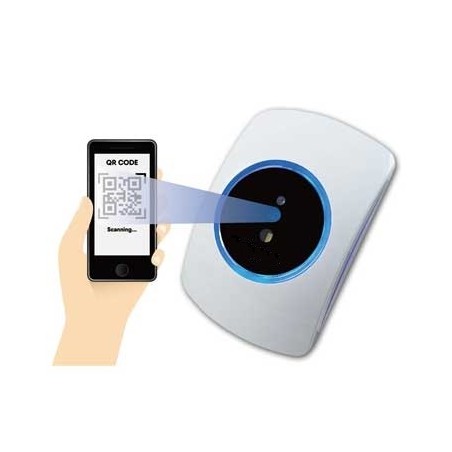

RFID with QR code reader
125kHz EM400x
13,56MHz Mifare Ultralight
Built-in buzzer for audio notification
can read multiple formats
With CPU watchdog
Power supply: 12V DC
Output: RS232, RS485, Wiegand 26/34 bits

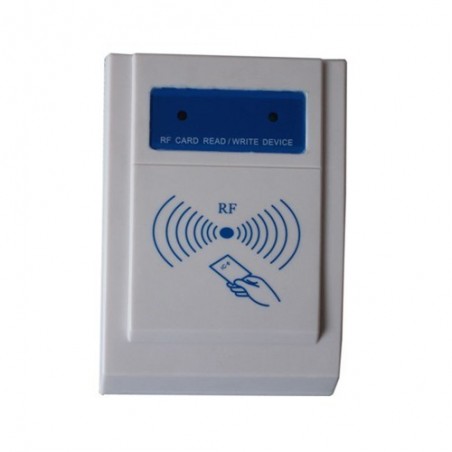

Network RFID reader
10 / 100Mbit Ethernet interface
Supports MDI / MDIX
1 x RJ45 and 1 x DC connector
TCP Server, UDP, DHCP
for 13.56MHz Mifare card
Supply: 5V DC PSU Max 300mA
20 pcs. Mifare Transponder / TAG to Keychain
Mifare Classic 1K RFID TAG
Reading distance: 0 - 5 cm
ISO14443A
1 kilobyte Memory
768 byte free in 16 sectors / 4 blocks / 16 bytes
UID code is factory programmed
Gray key ring
Frequency: 13.56MHz
Material: ABS, IP68
Keyboard Emulation: 8 digits, 32bit HEX
Frequency: 13,56MHz Mifare Ultra Light
versions: Mifare S50, S70, ISO15693, ISO14443A / B
UID in positive Normal sequence
Power supply: 5VDC from USB port
Operating temperature: -10 - + 75 ° C
Reading distance: 5 ~ 15 cm
Cable length: Solved USB cable
Dimension: 118 (L) x 75 (W) x 17 ( H) mm
Weight: 250g ± 10%
desktop - table model
