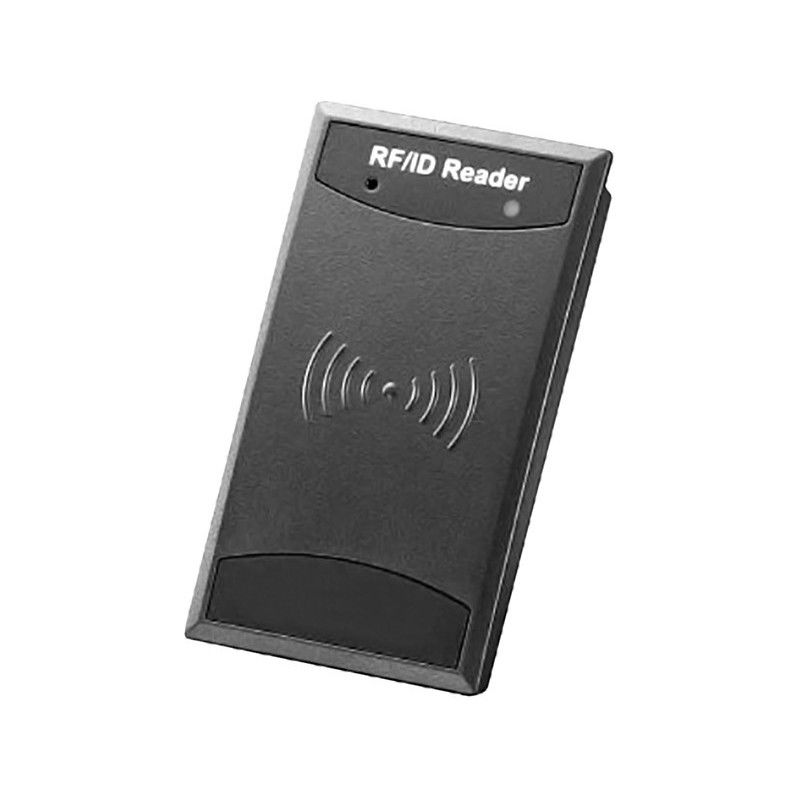

RFID reader 13.56MHz, Mifare, Felica, DesFire, Ultralight, FeliCa and 125kHz EM, wall, RS232 and Wie, 5 - 18VDC

RFID Dual band EM40XX / Mifare reader

13.56MHz, Mifare, Felica, Desfire, Ultralight, Felica

125kHz

Reading distance up to 3 cm

RS232 or Wiegand 26 interface

For wall mounting

LED and Buzzer

Supply voltage: 5 - 18VDC

Cable out from the back

Dimensions: 78 x 43 x 15 mm

RFID-MR-MULTI
1,450.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Felica is developed by SONY – mostly for payment cards. It is similar to Mifare Pro, but does not comply with the ISO 14443 standard, so it cannot be considered a Mifare technology. It does comply with the ISO 18092 standard and the Japanese JIS: X6319-4 standard.

Dimensioner
47 x 83 x 16 mm
Driftstemperatur
-10 til +60 °C
Interface
Wiegand og RS232
Montering
Væg
Rækkevidde
Op til 3 cm
Strømforsyning
Kræver mellem 5,0 og 18 VDC. Forbindes til skrueterminal
Tag-typer
Understøtter både 125kHz, Mifare og Felica teknologierne
