USB RFID Reader 125kHz EM4100 TAG in Credit card format, table model incl. Programming software

Interface: USB
Reading distance: 0-6 cm
TAG Type: EM4100 and FDX-B
Built-in Antenna
Built-in Buzzer
Supply: USB 5V / 200mA
Drift temp. -20 to +70 ° C
Plug Play
Dimensions: 105 x 72 x 16 mm

RFID-USB-EM
2,050.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

RFID USB is an RFID reader with built-in antenna in the plastic cabinet. It has magnets in the back plate so that for example. can be put on the side of a cabinet. User-friendly Windows software for programming software is included. Supports: readout as decimal or hex decimal.
The device has a unique serial number, so you can see which reader the Tag code comes from.
1) The EM4100 is a 125kHz, 64 bit RFID device. The EM4100 RFID tags you can only write to once, then the inserted value is locked. The EM4100 supports ISO 14443 and 15693.
2) The FDX-B format is most often used in electronic labeling of animals, but is also often used in other industrial related identification.
FDX-B supports ISO 11784 and 11785. These two Standards work both with FDX-B (full) and HDX (semi-duplex).

Andet
Software medfølger, med 1 m. USB kabel, magneter i bagpladen
Driftstemperatur
-20 til +70 °C
Interface
USB tilslutning, med mulighed for HID*) (tastatur) emulering
Mål og vægt
16 x 72 x 105 mm – 95 g
Rækkevidde
Op til 6 cm
Tag-typer
EM4100 1) FDX-B 2)
Udformning
Bordmodel

4 other products in the same category:

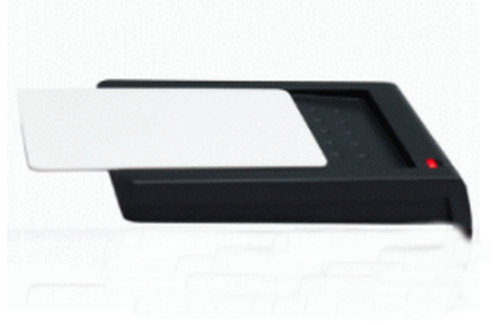

Dual Band RFID reader...

Dual Band RFID reader 125kHz, 13.56MHz, NFC, EM400x, Mifare. 8-10 characters Decimal/HEX. HID. DIP switch. USB. Waterproof

Dual band RFID card reader for USB - Decimal
10 characters decimal (ASCII) - 40bit
125 kHz, 13.56 MHz, NFC
125khz: EM4001, EM4002, EM4200
Mifare: ISO 1443A/B/15693
HID - Keyboard Emulation
Reading distance: Up to 10 cm
Align via USB
USB interface
Dip-SW to ID format setting - see Table
Environment: IP67 Waterproof, outdoor mounting
operating temp. -25 ° to + 70 ° C
target: 88 x 56 x 18 mm

Price 990.00 DKK
Product code: RFID-D51USB-D10
Physically in stock
Quick view

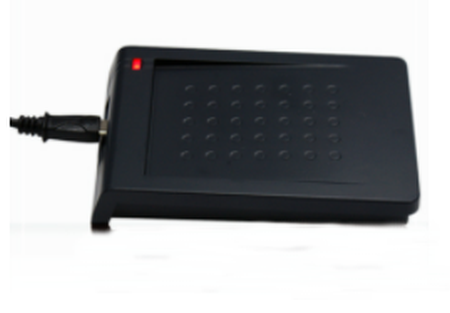

RFID Reader Mifare...

RFID Reader Mifare 13,56MHz, indoor - Hex 10 digits, HID - Keybord Emulation. Powered from USB. Desktop.

Keyboard Emulation: 10 digits, 40bit HEX
Frequency: 13.56MHz Mifare Ultra Light
Versions: Mifare S50, S70, ISO15693, ISO14443A / B
Power supply: 5VDC from USB port
Operating temperature : -10 - + 75 ° C
Reading distance: 5 ~ 15 cm
Cable length: Solved USB cable
Dimension: 118 (L) x 75 (w) x 17 (h) mm
Weight: 250g ± 10%
desktop - table model

Price 916.00 DKK
Product code: RFID-M5USB-H10
Physically in stock
Quick view

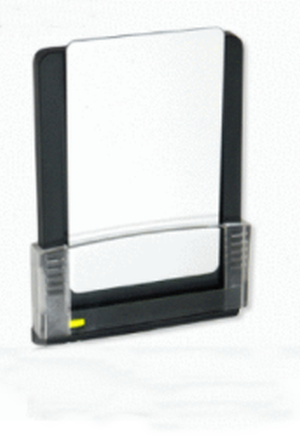

RFID Reader for Mifare...
